OEM System Circuits (Plug-In): DLC3: Notes

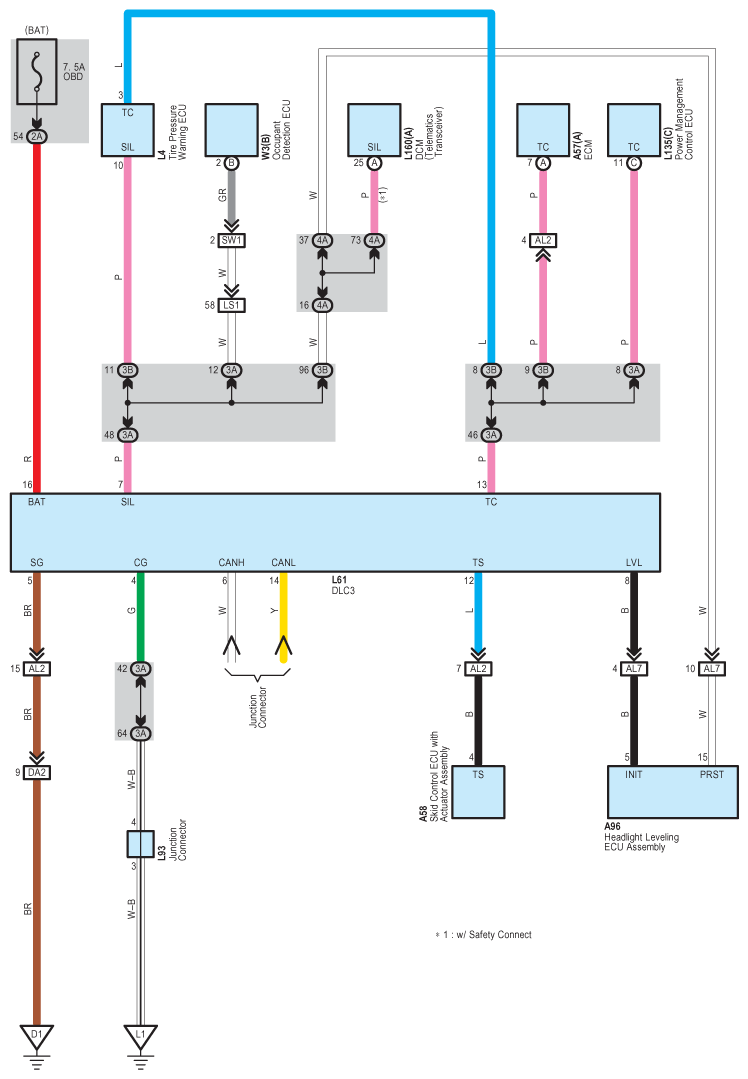

Fig 1: DLC3 Wiring Diagram
G09100234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
