Toyota
>>
2013
>>
Prius Plug-in
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits (Plug-In)
>>
Stop Light
>>
Notes
Stop Light: Notes

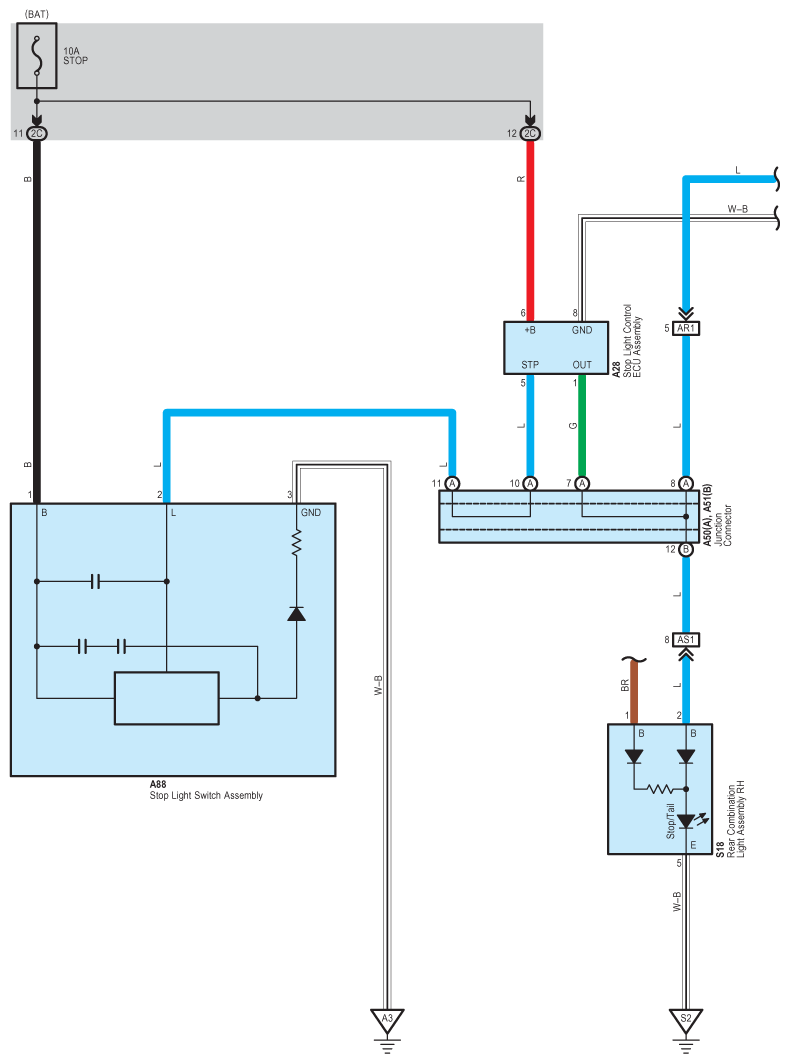

Fig 1: Stop Light System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

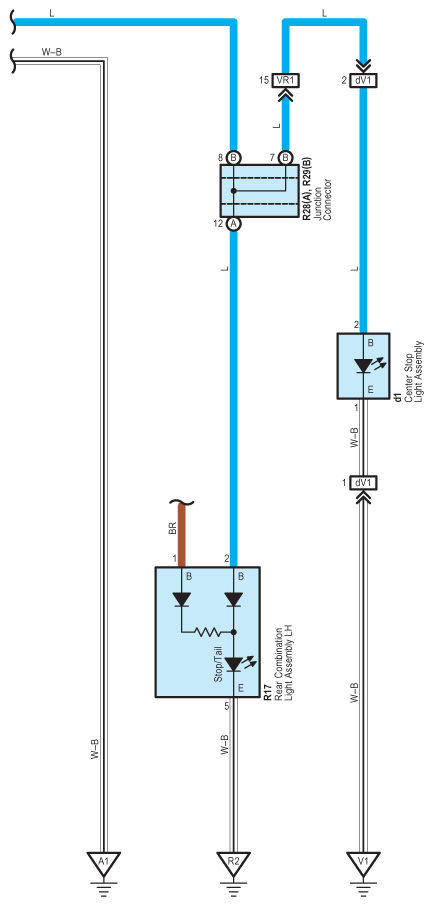

Fig 2: Stop Light System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
