Air Fuel Ratio Sensor: Components: Illustration

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY331897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

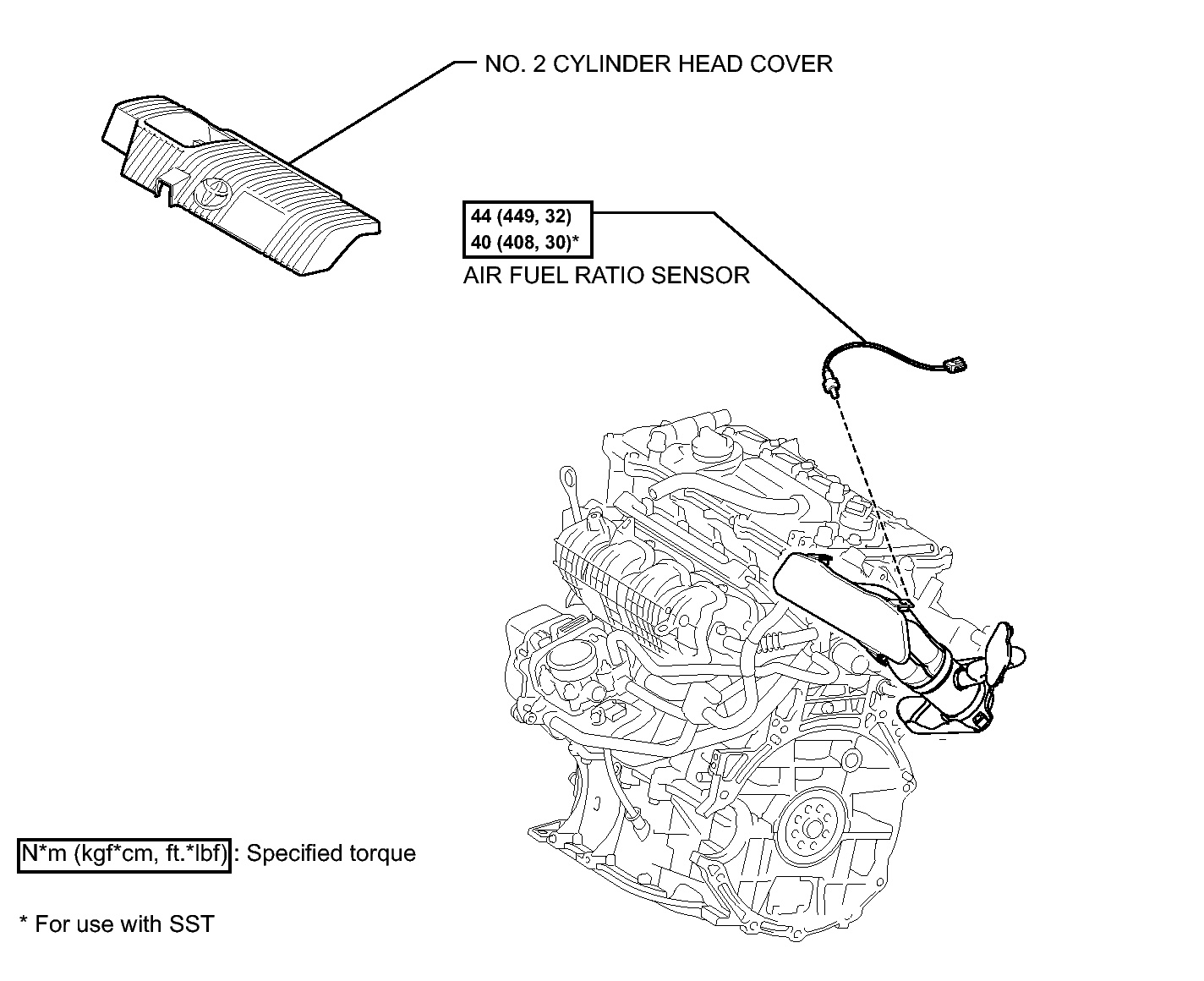

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY326725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
