Home >> Toyota >> 2013 >> Prius Two >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits (Except Plug-In) >> DLC3 >> Notes

OEM System Circuits (Except Plug-In): DLC3: Notes

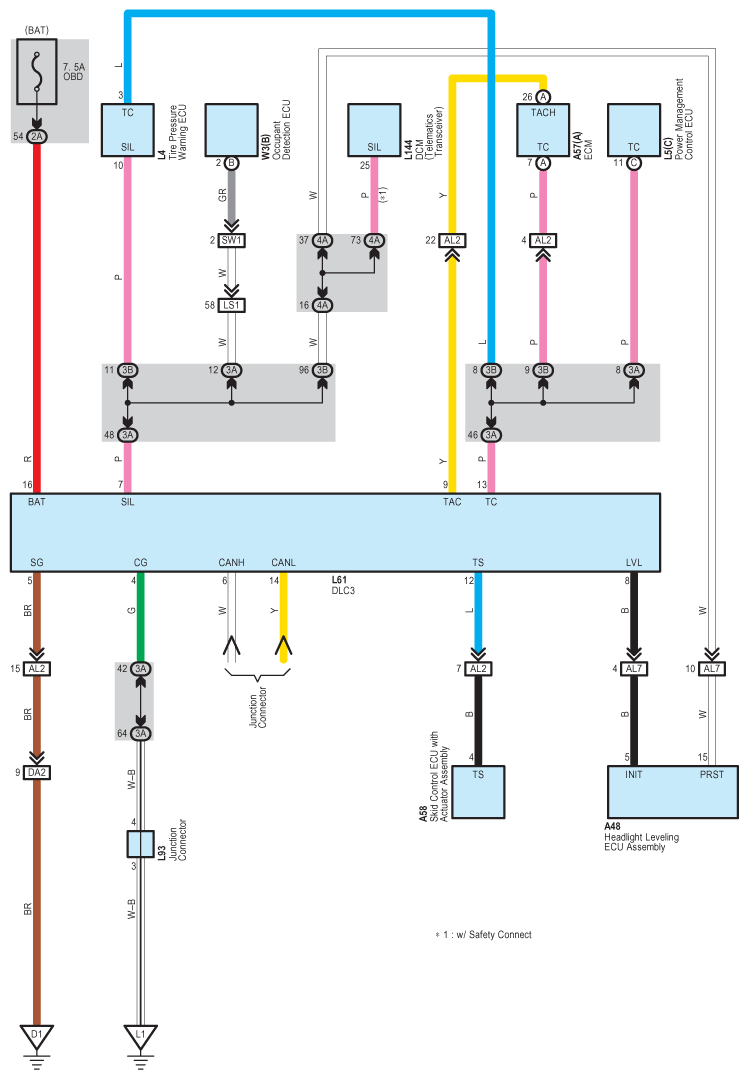

Fig 1: DLC3 Wiring Diagram
G09099386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
