OEM System Circuits (Except Plug-In): Ignition: Notes

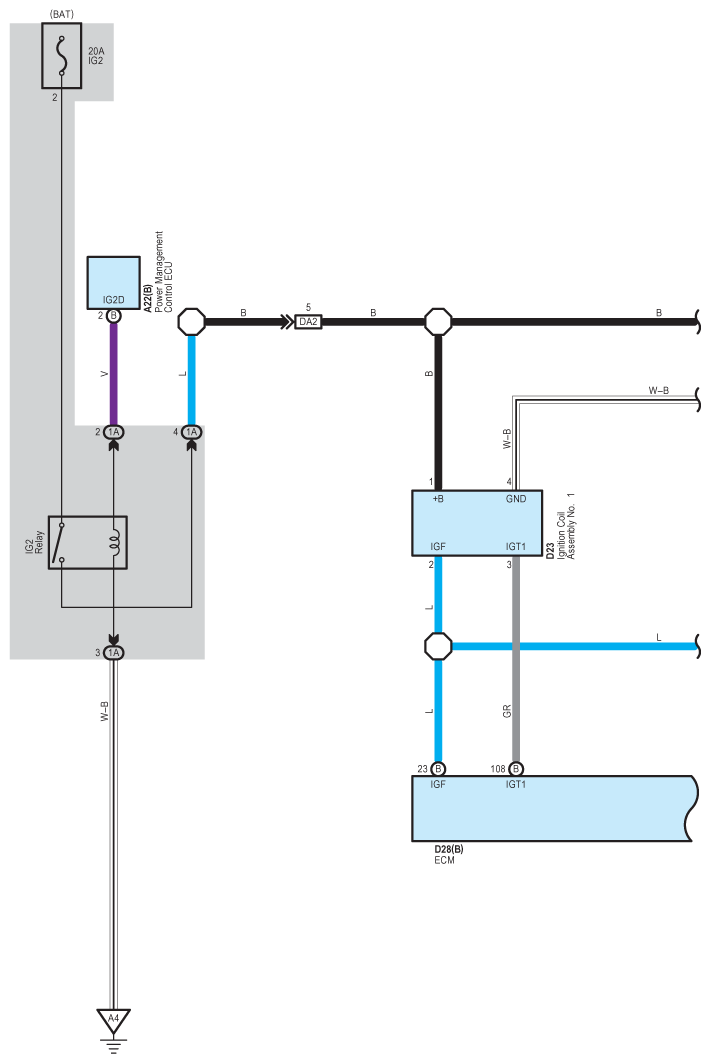

Fig 1: Ignition System Wiring Diagram (1 Of 2)
G09099303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

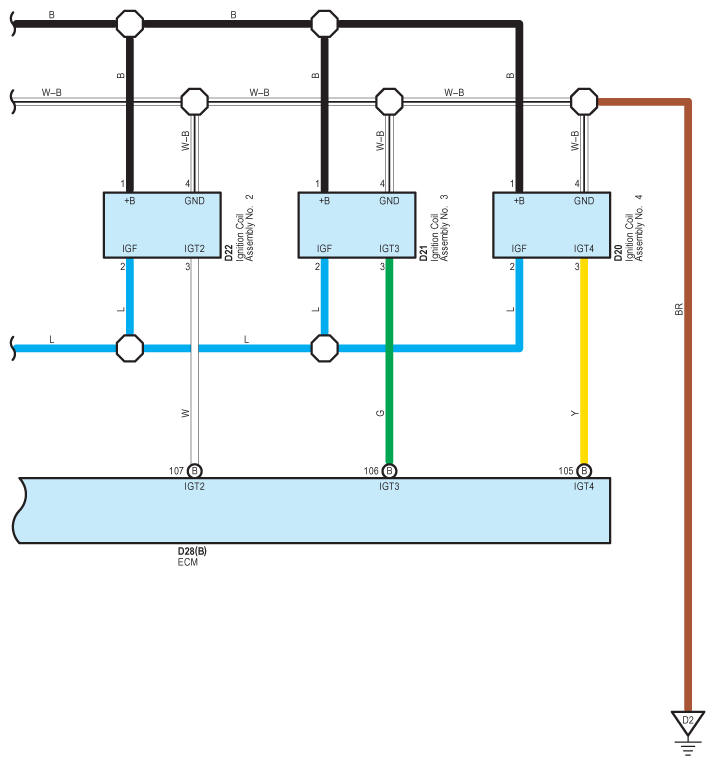

Fig 2: Ignition System Wiring Diagram (2 Of 2)
G09099304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
