Home >> Toyota >> 2013 >> Prius V >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Power Seat >> Notes

Power Seat: Notes

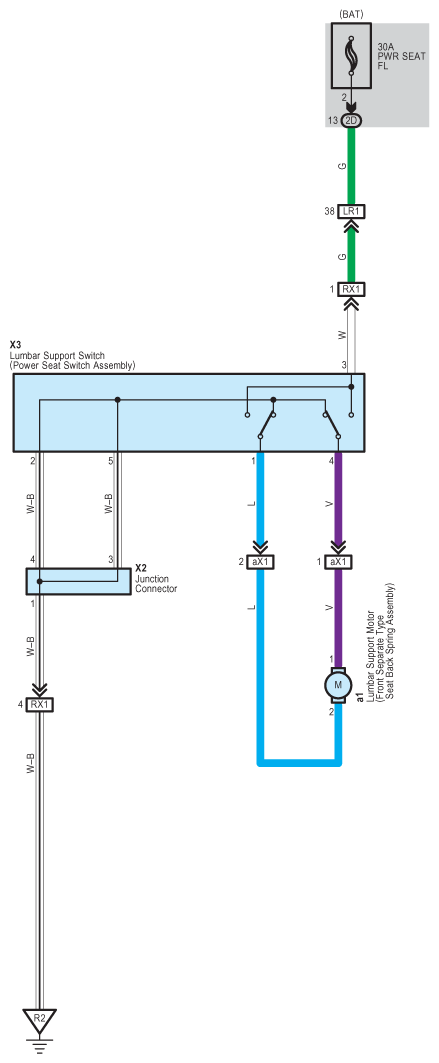

Fig 1: Power Seat System Wiring Diagram
G09109868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
