Home >> Toyota >> 2013 >> Prius V >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Service Information) >> Ignition Coil And Spark Plug >> Components >> Illustration

Ignition Coil And Spark Plug: Components: Illustration

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (1 Of 2)
GTY327138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

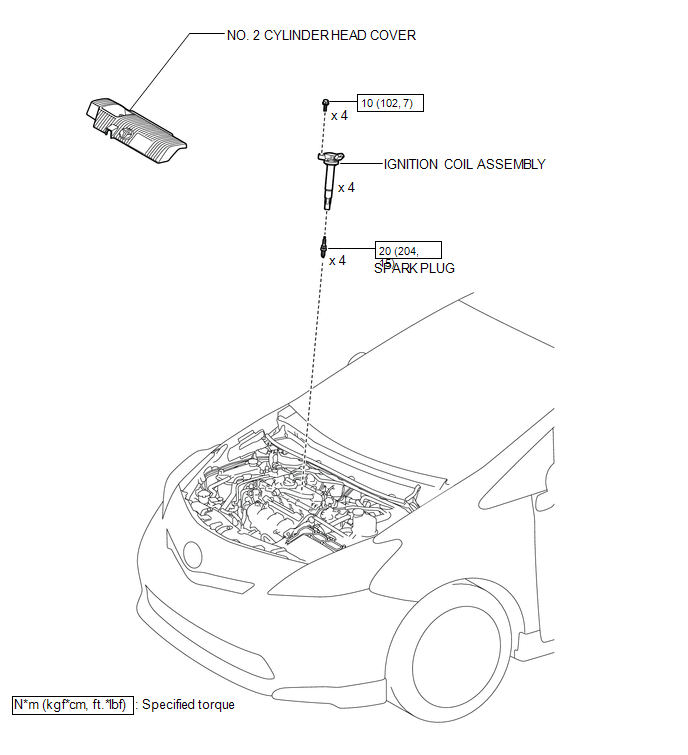

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (2 Of 2)
GTY342461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
