Headlight Beam Level Control: Notes

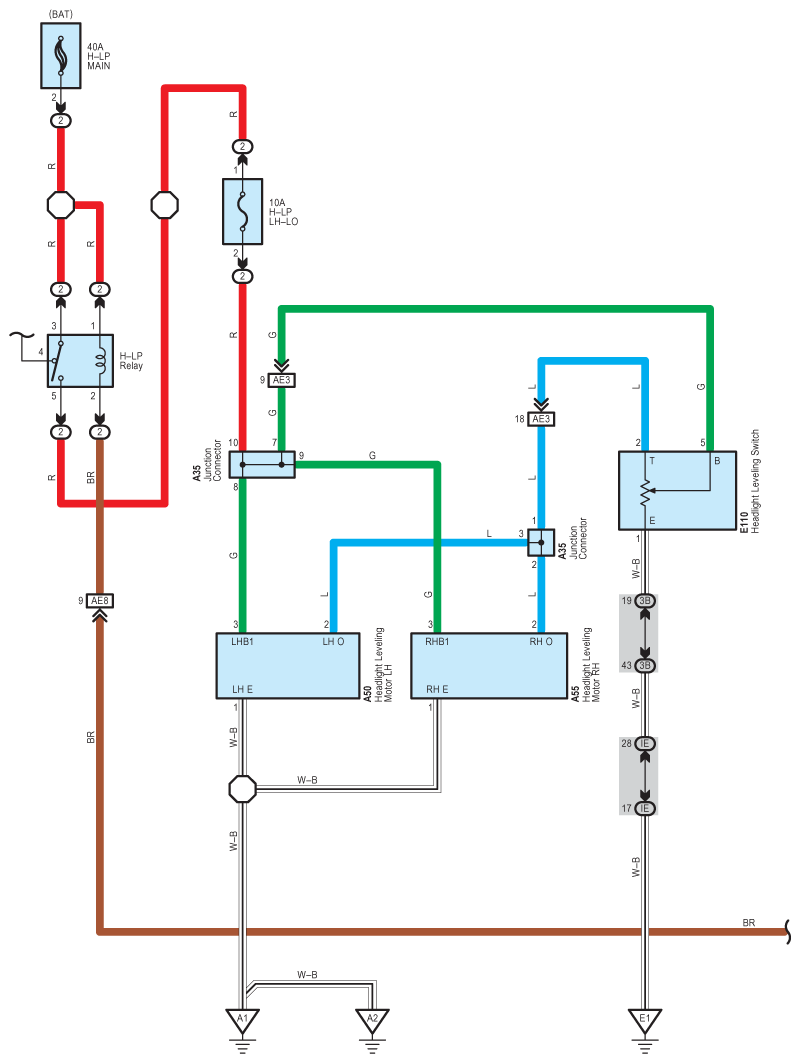

Fig 1: Headlight Beam Level Control Wiring Diagram (1 Of 3)
G09110531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

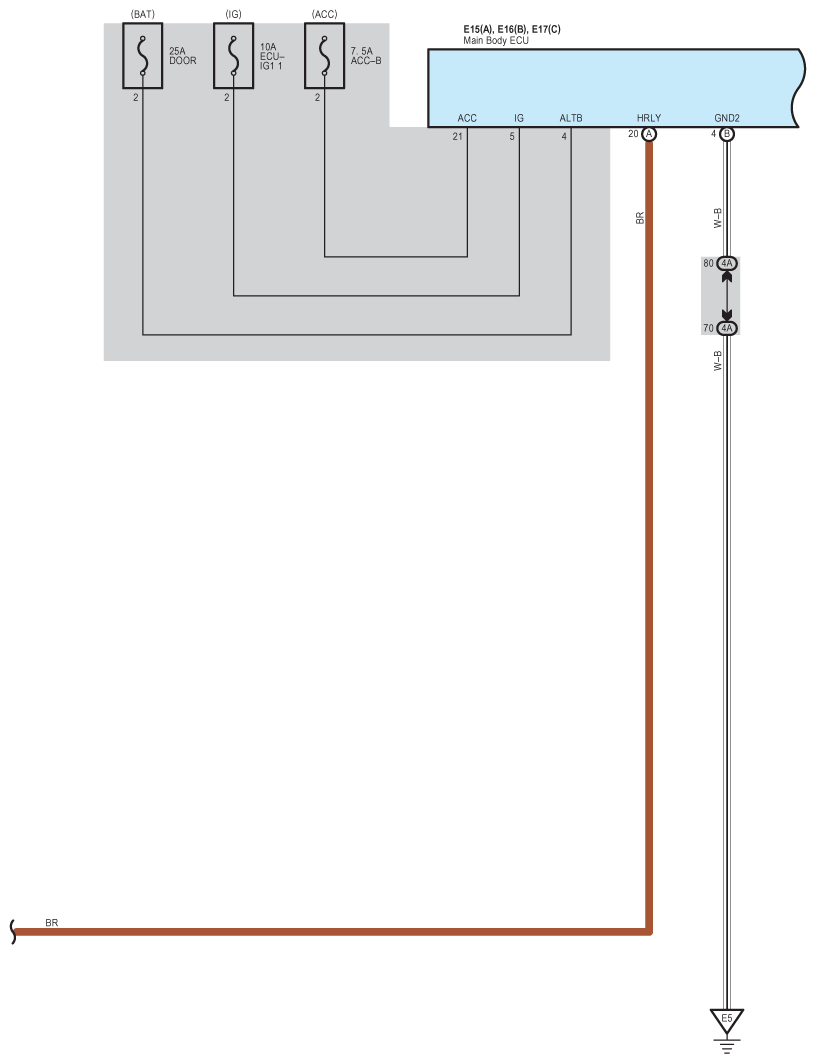

Fig 2: Headlight Beam Level Control Wiring Diagram (2 Of 3)
G09110532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

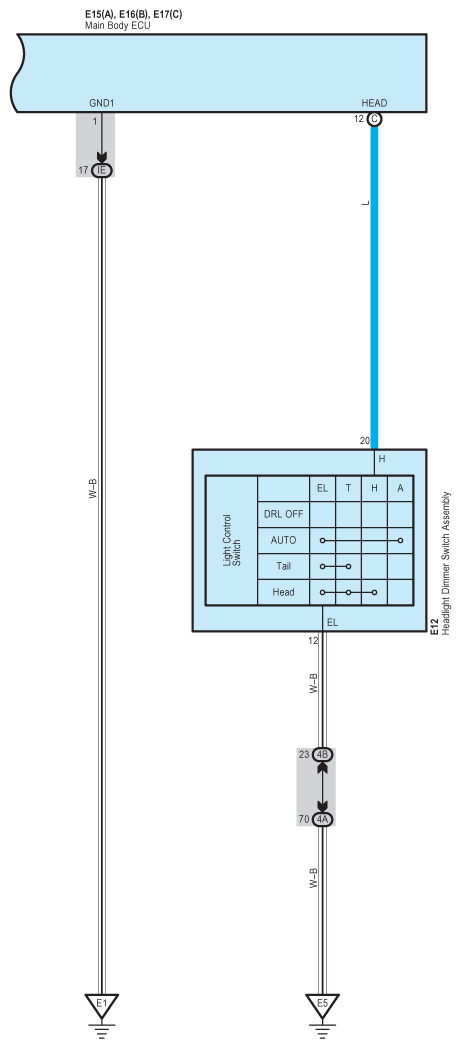

Fig 3: Headlight Beam Level Control Wiring Diagram (3 Of 3)
G09110533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
