Multiplex Communication System (CAN): Notes

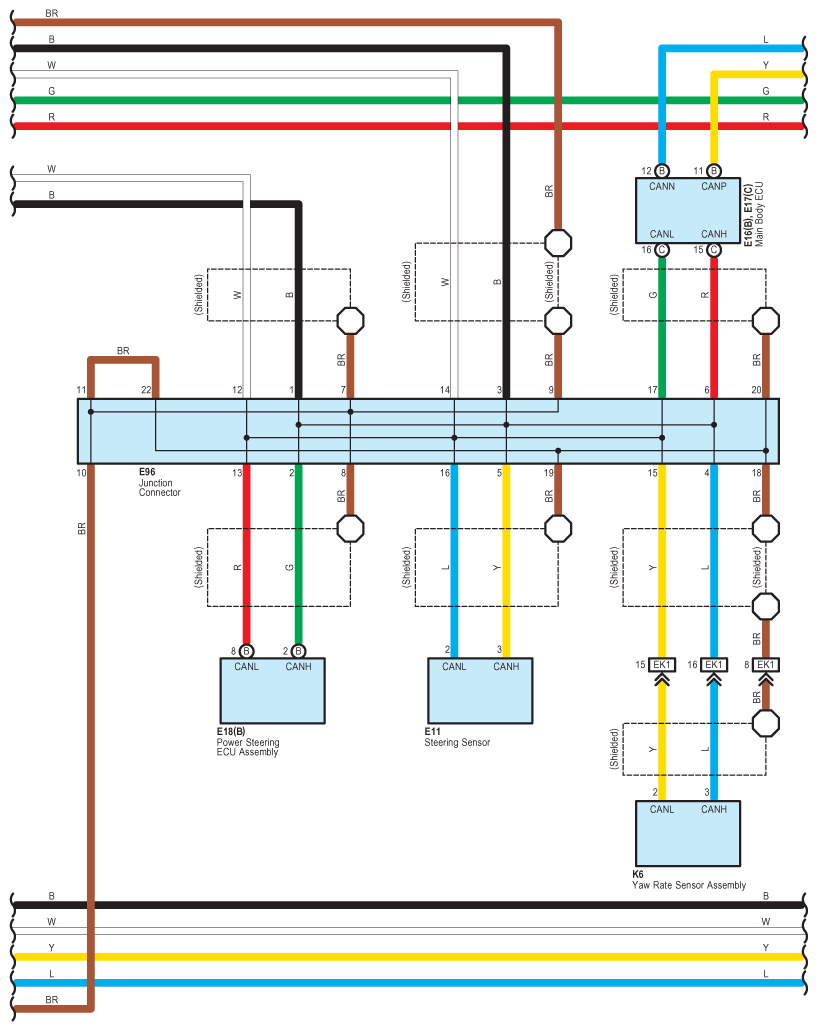

Fig 1: Multiplex Communication System (CAN) (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

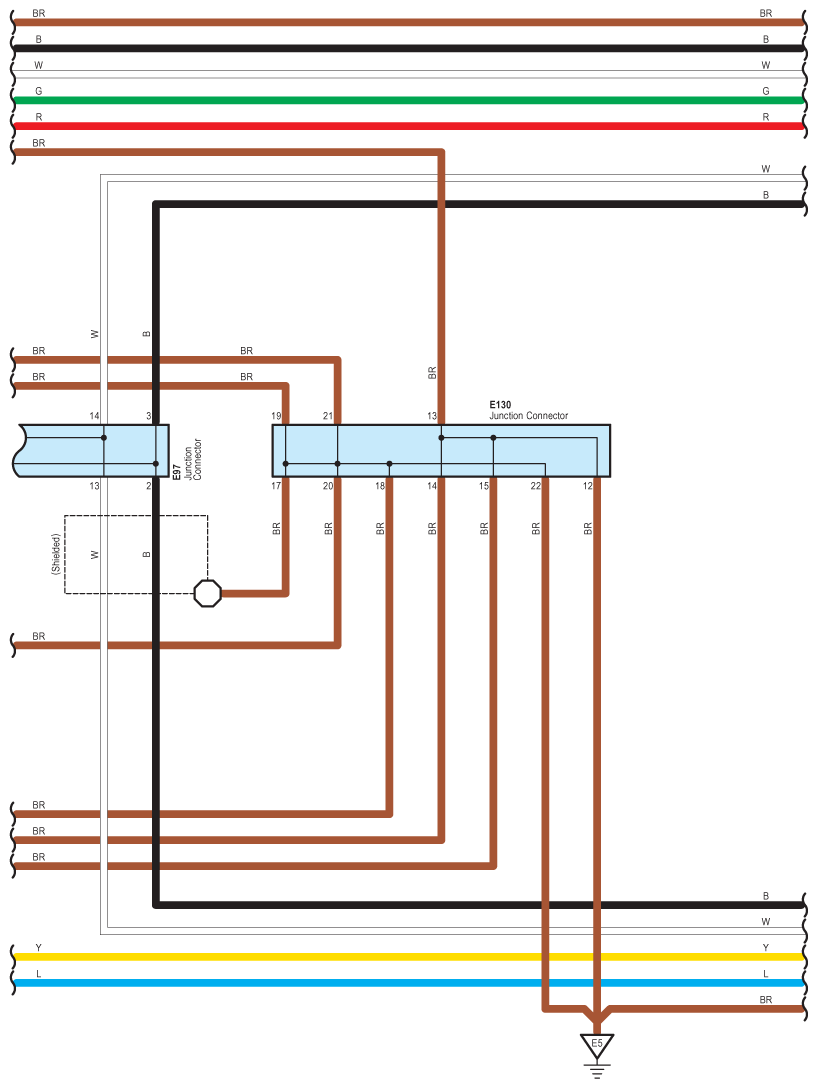

Fig 2: Multiplex Communication System (CAN) (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

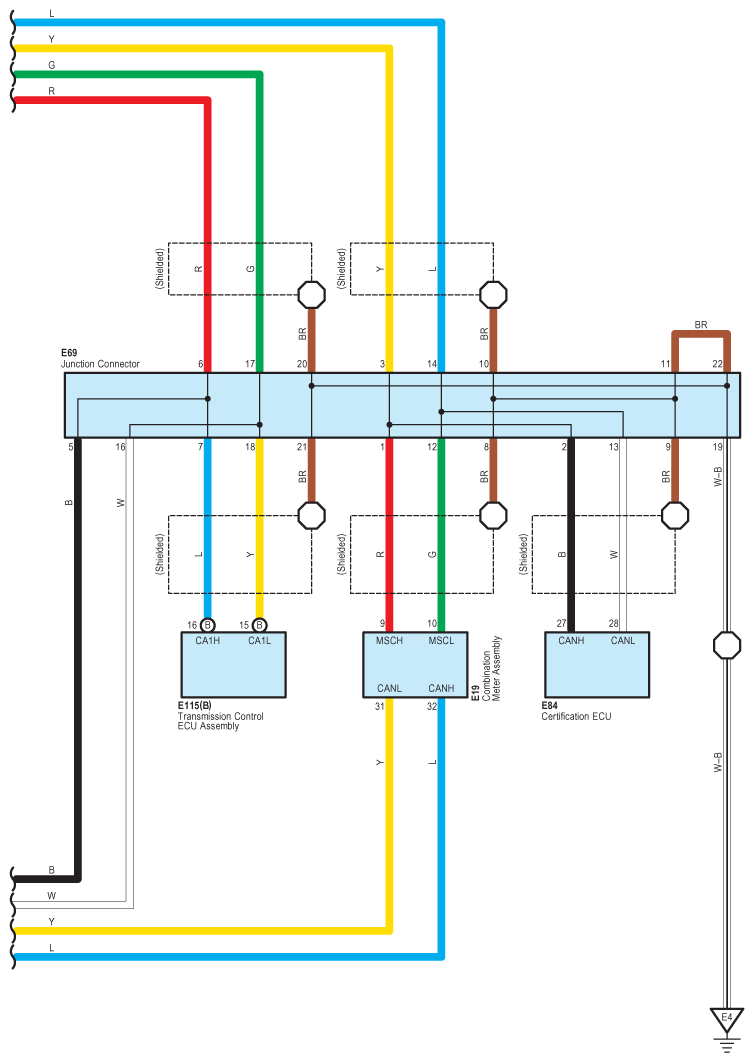

Fig 3: Multiplex Communication System (CAN) (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

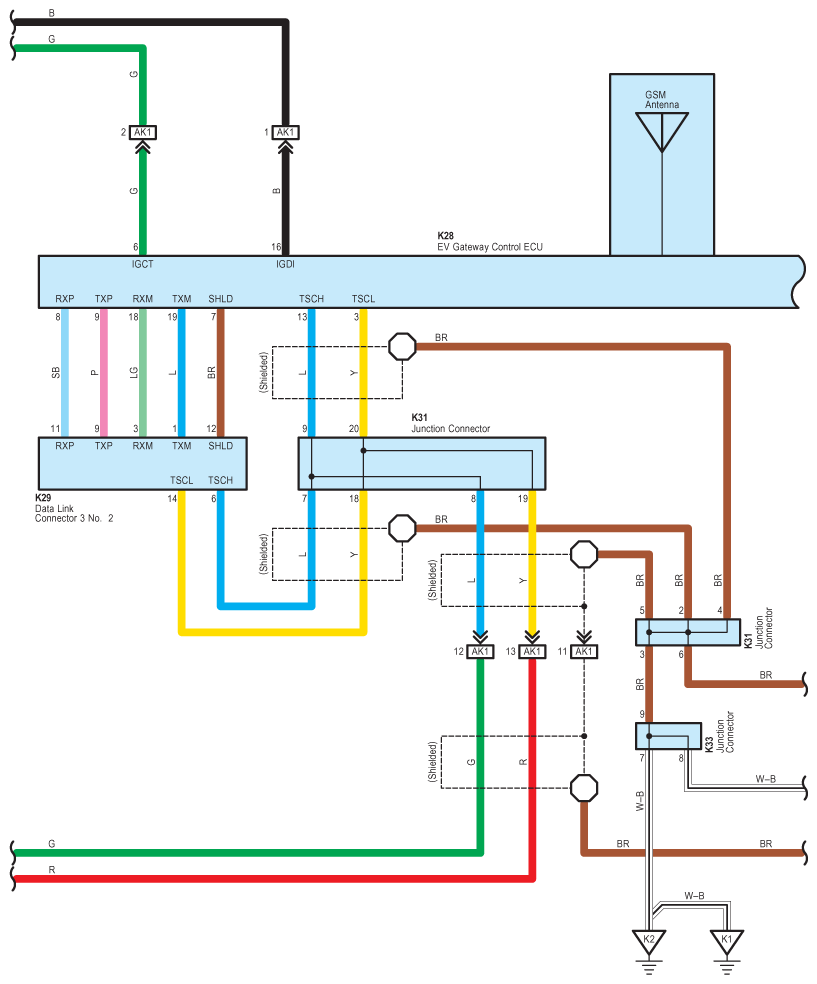

Fig 4: Multiplex Communication System (CAN) (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

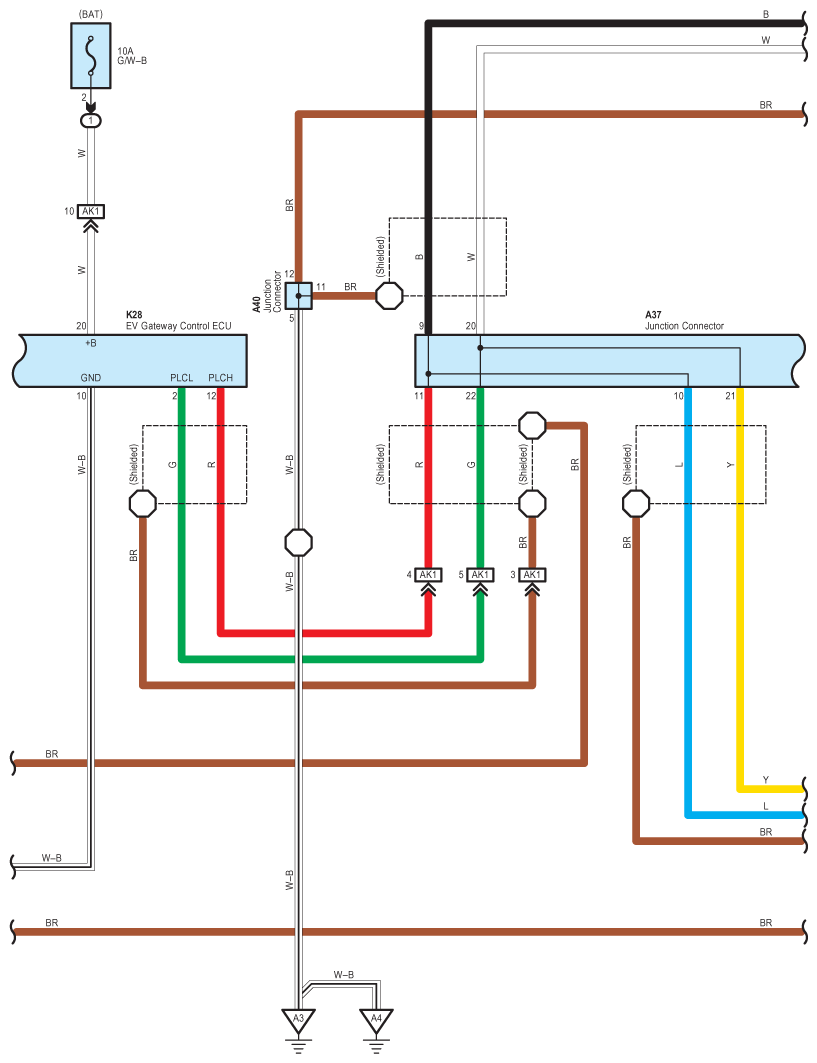

Fig 5: Multiplex Communication System (CAN) (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

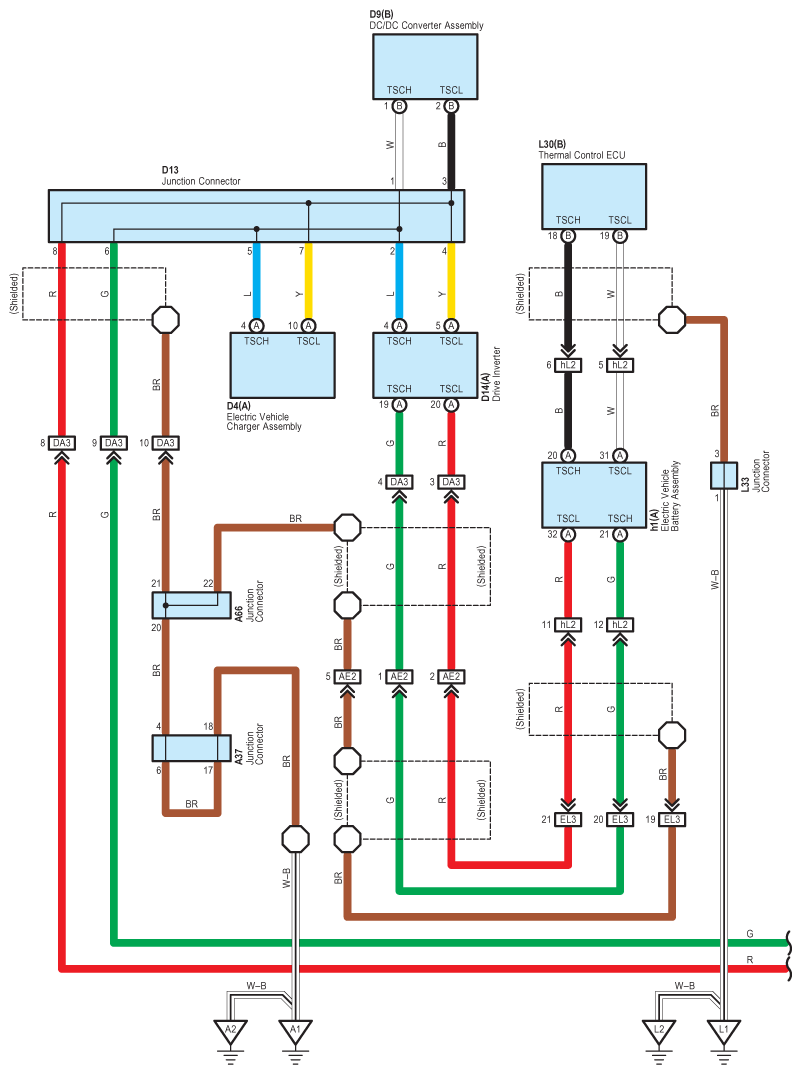

Fig 6: Multiplex Communication System (CAN) (6 Of 9)

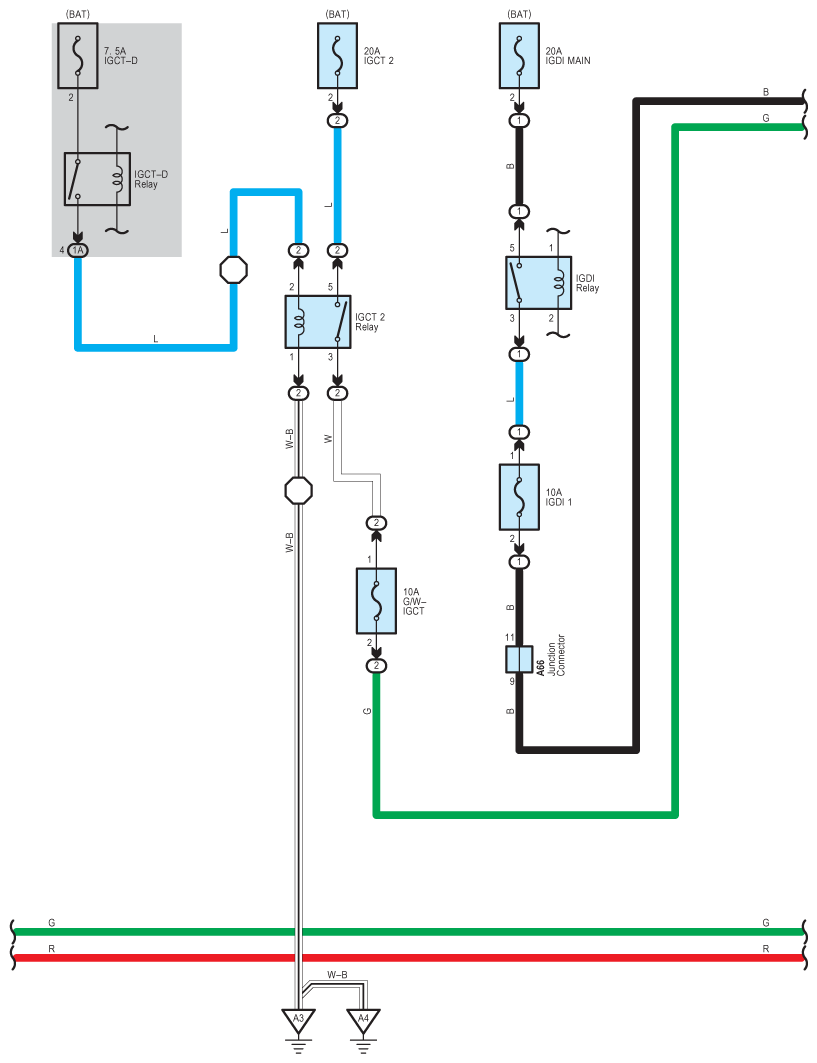

Fig 7: Multiplex Communication System (CAN) (7 Of 9)

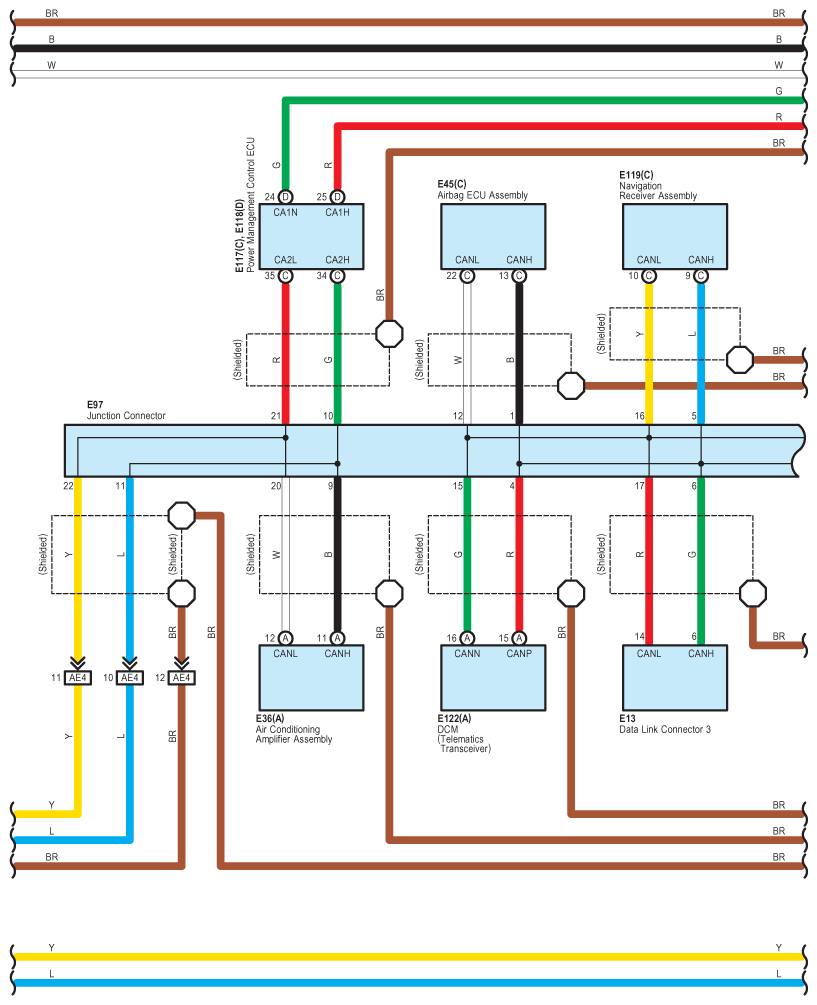

Fig 8: Multiplex Communication System (CAN) (8 Of 9)

Fig 9: Multiplex Communication System (CAN) (9 Of 9)
