Pre-Collision System: Connectors

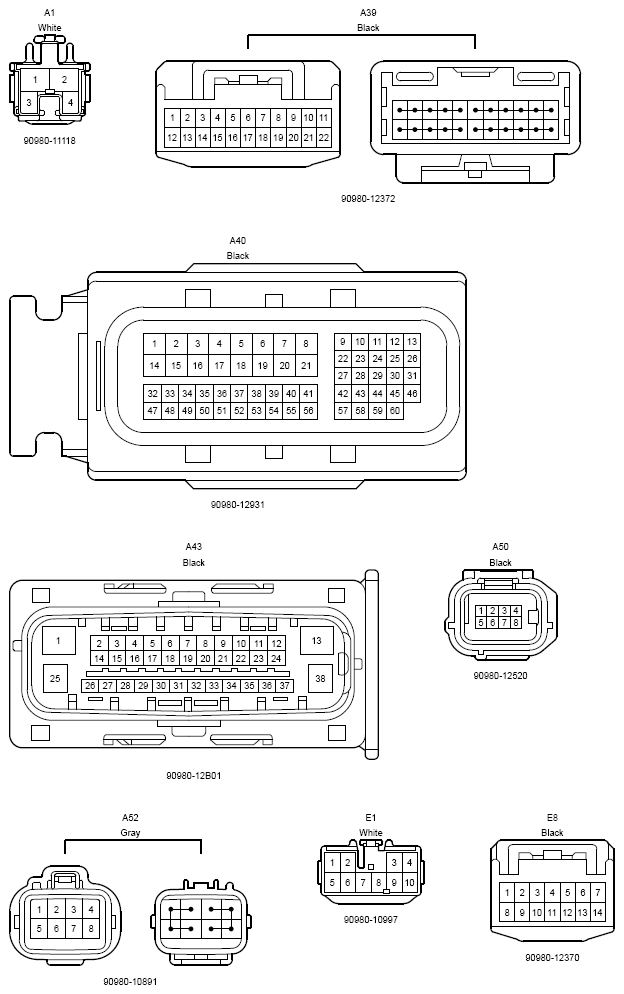

Fig 1: Connectors (1 Of 5)
G12199649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

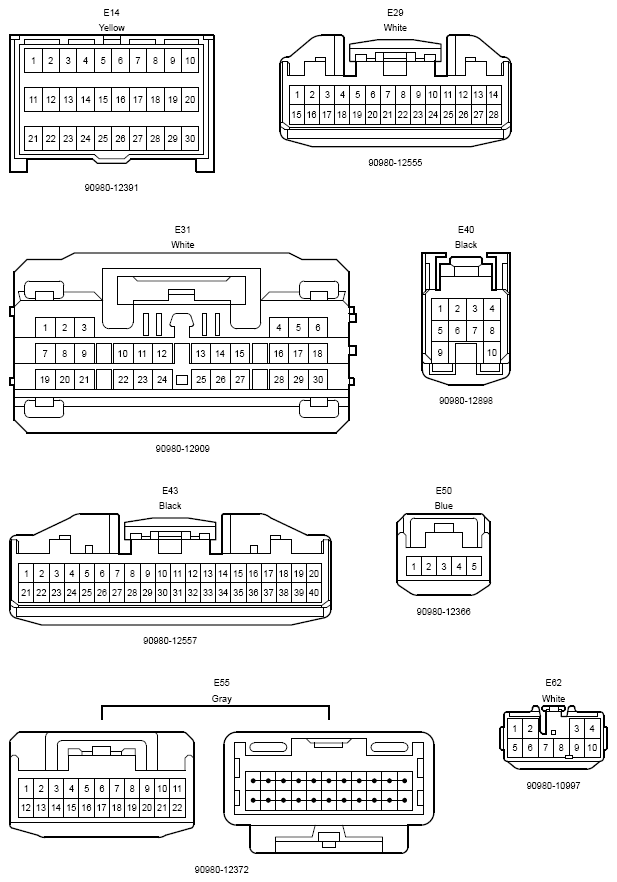

Fig 2: Connectors (2 Of 5)
G12199650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

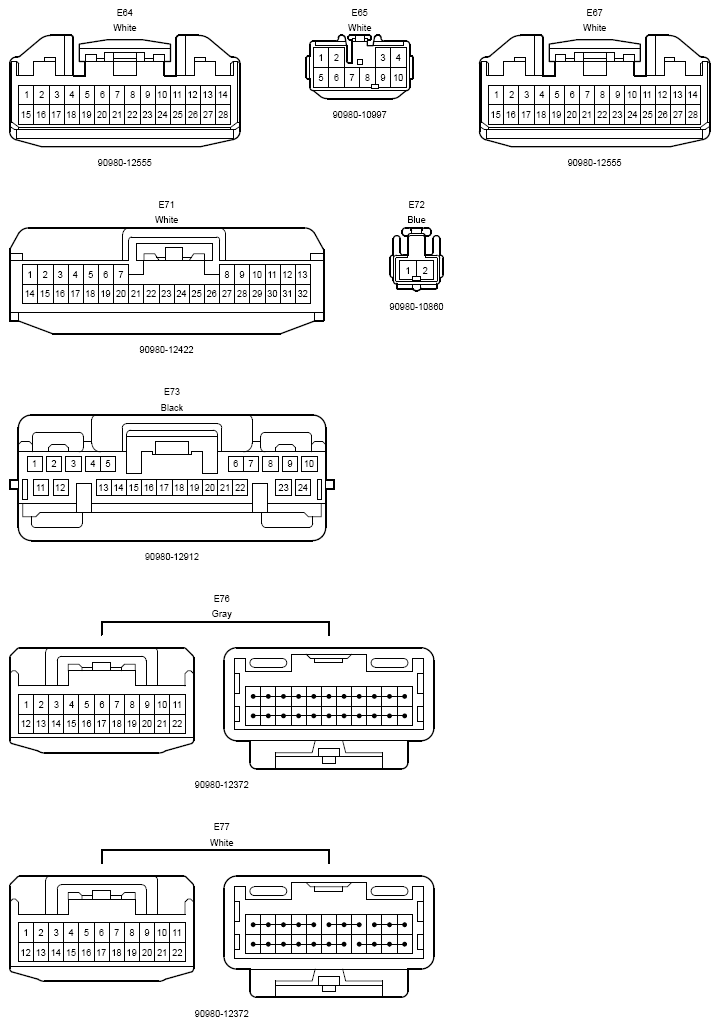

Fig 3: Connectors (3 Of 5)
G12199651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

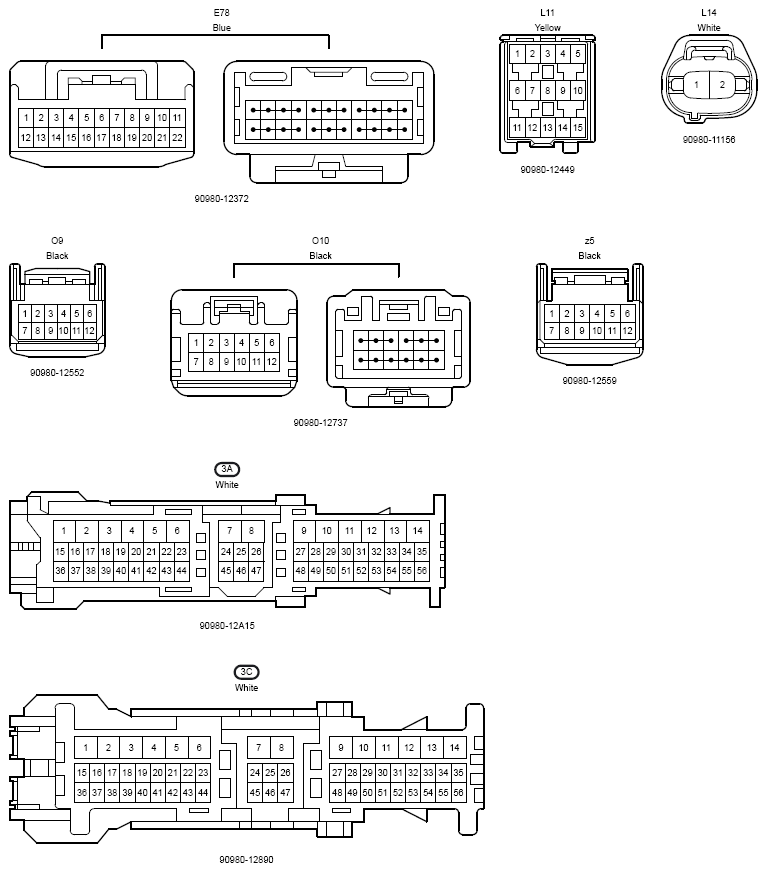

Fig 4: Connectors (4 Of 5)
G12199652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

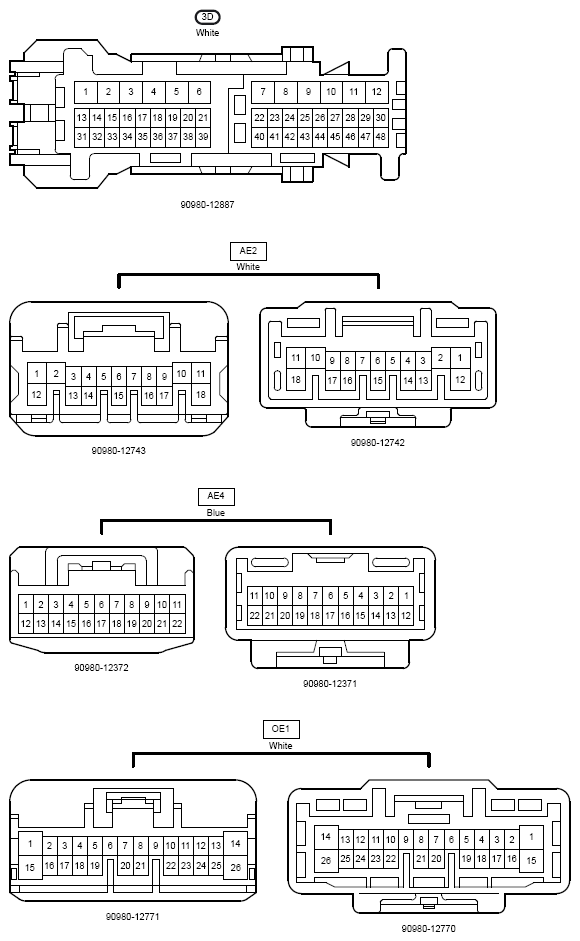

Fig 5: Connectors (5 Of 5)
G12199653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
