Remote Control Mirror
>>
System Diagrams
System Diagrams

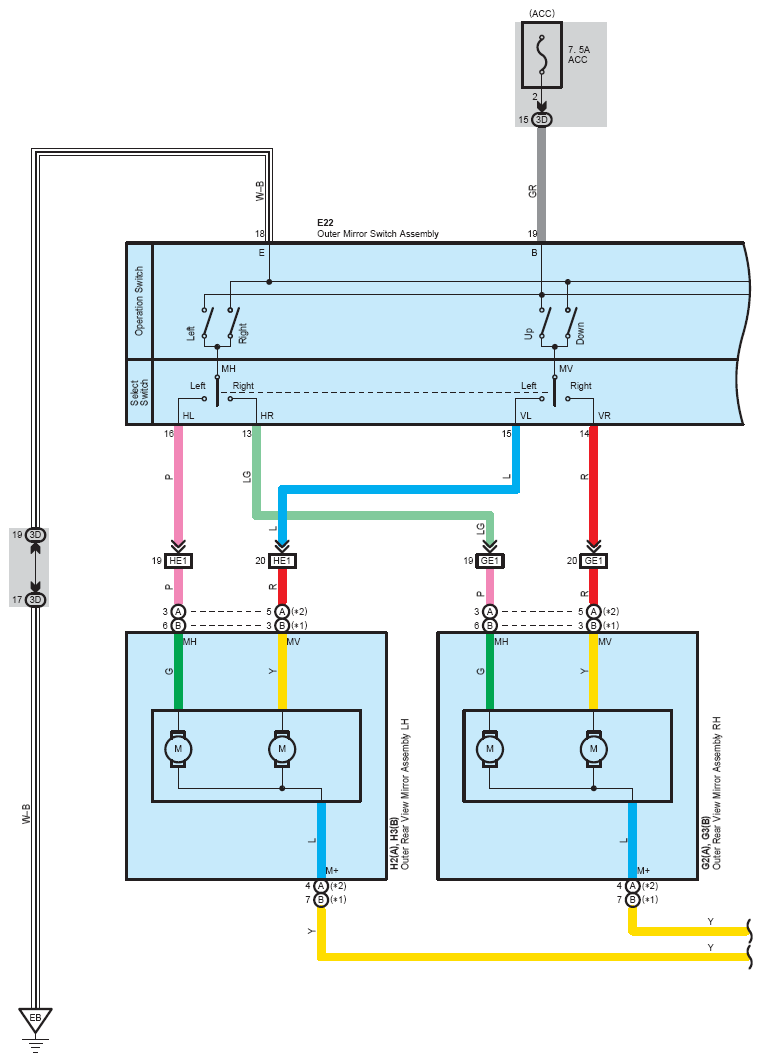

Fig 1: Remote Control Mirror (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

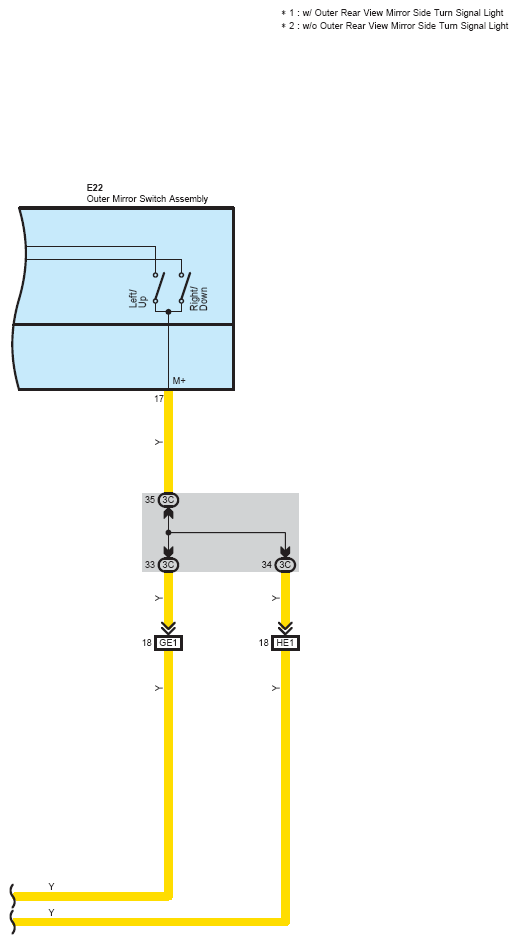

Fig 2: Remote Control Mirror (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
