Home >> Toyota >> 2016 >> Land Cruiser >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> VGRS System >> Connectors

VGRS System: Connectors

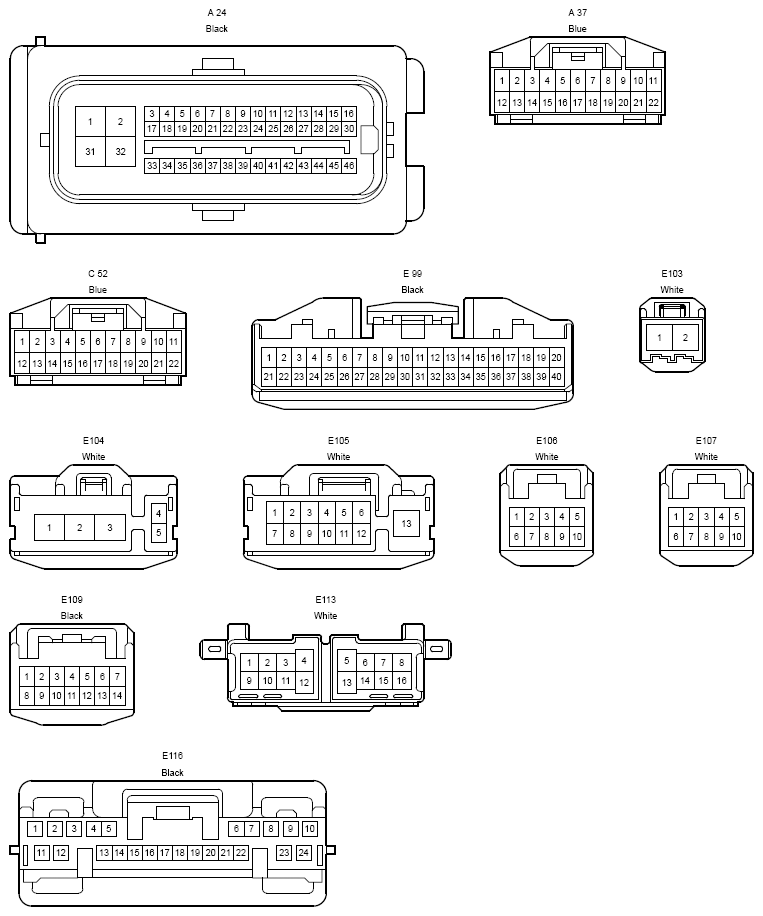

Fig 1: Connectors (1 Of 3)
G12206828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

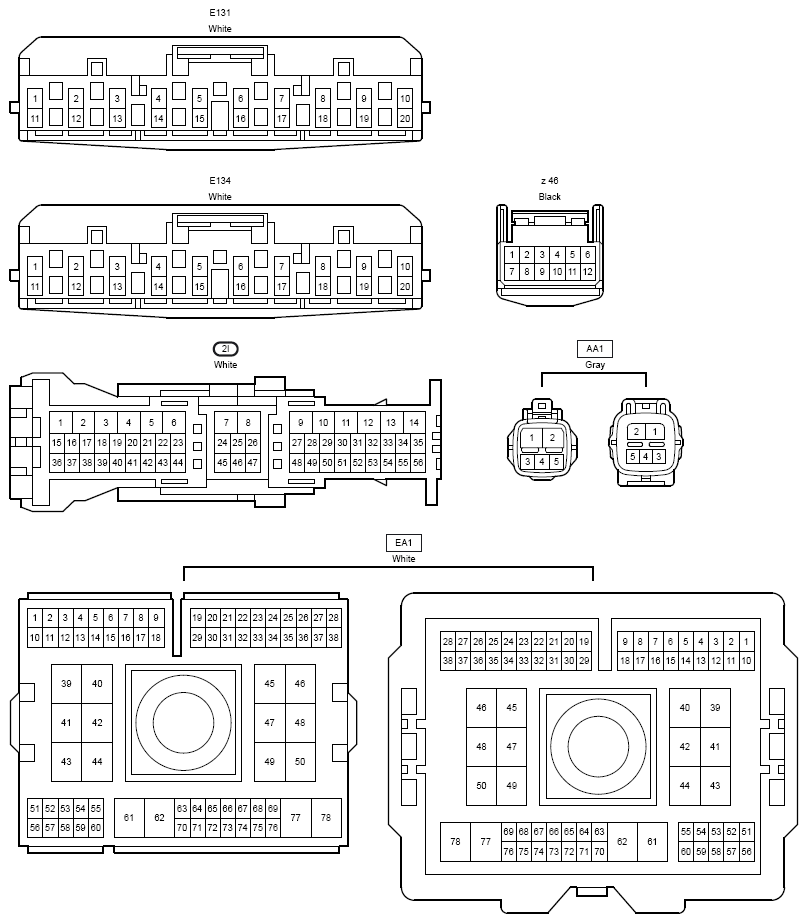

Fig 2: Connectors (2 Of 3)
G12206829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Connectors (3 Of 3)
G12206830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
