System Diagrams

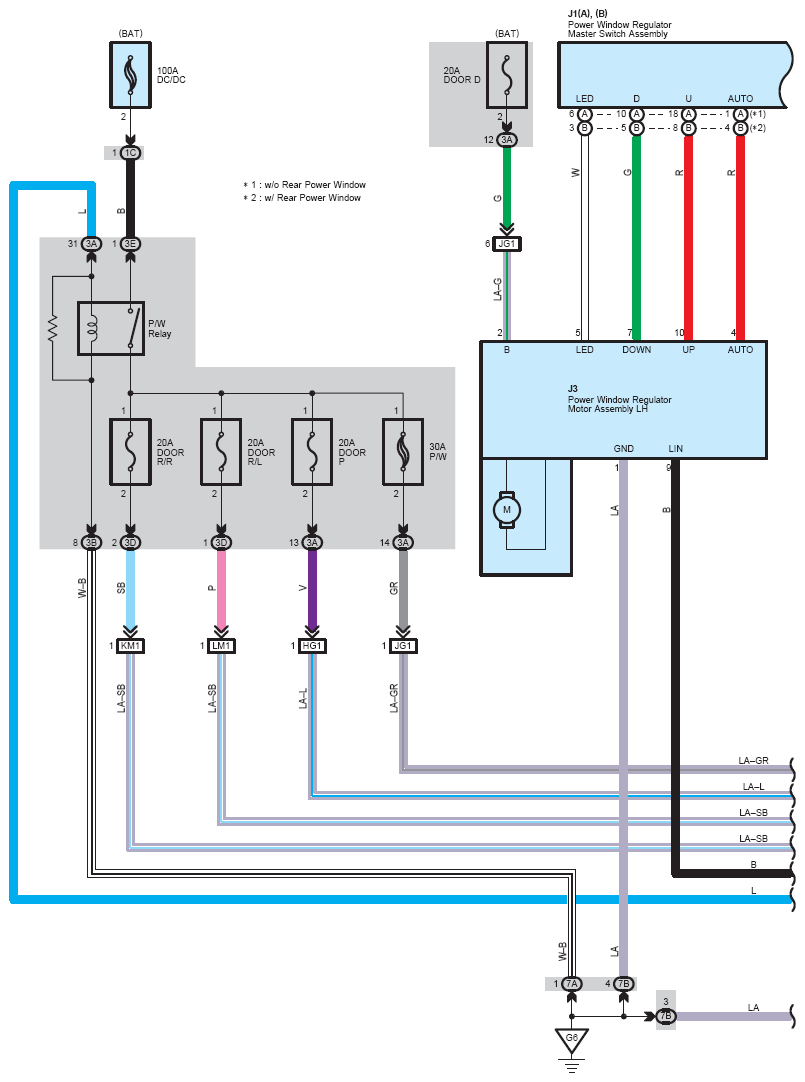

Fig 1: Power Window (1 Of 3)
G12211370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

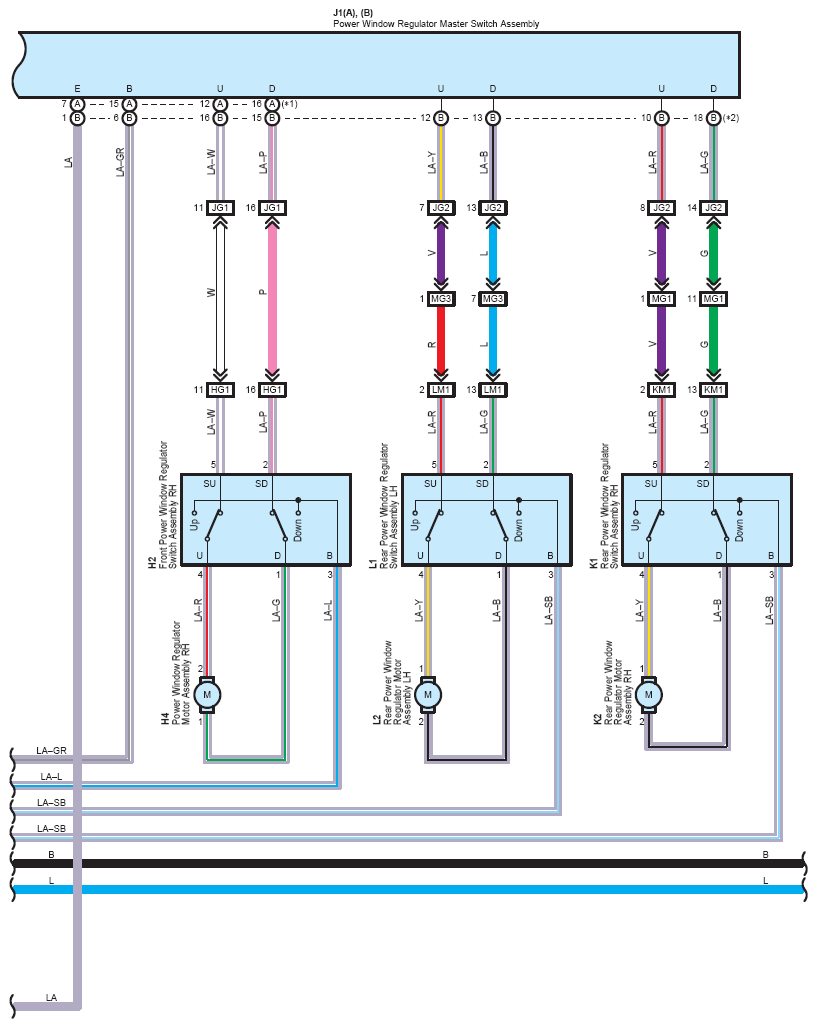

Fig 2: Power Window (2 Of 3)
G12211371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

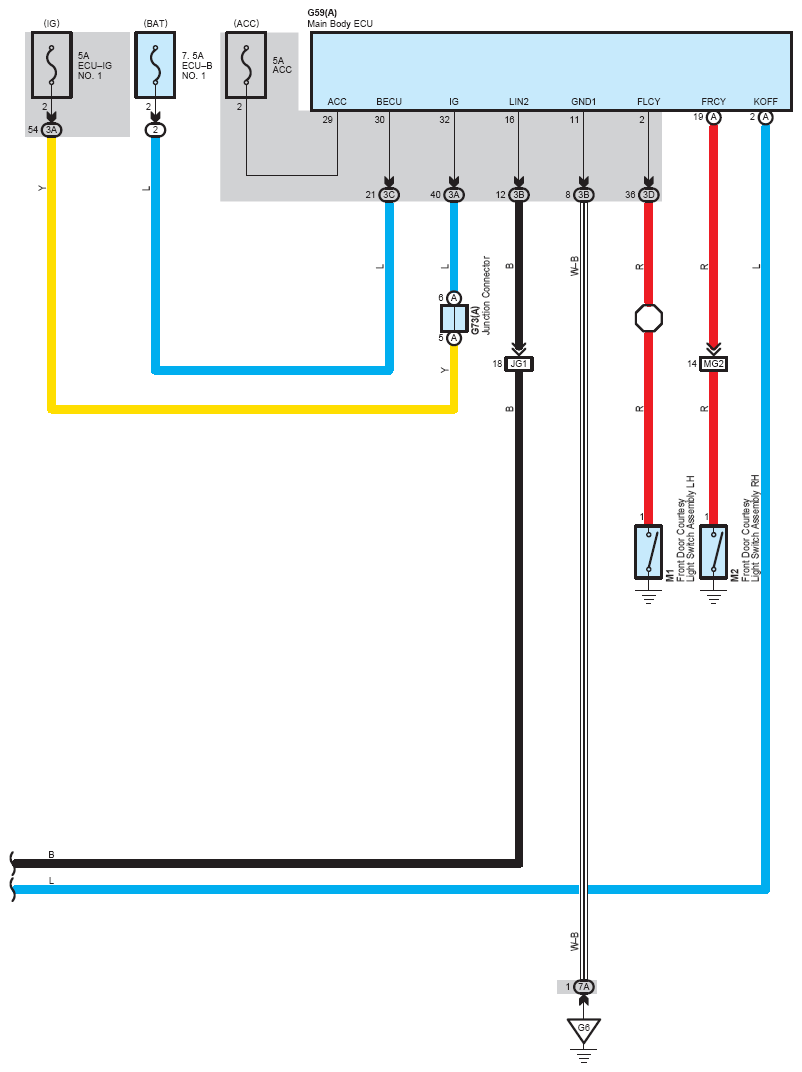

Fig 3: Power Window (3 Of 3)
G12211372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
