Shift Lock
>>
System Diagrams
System Diagrams

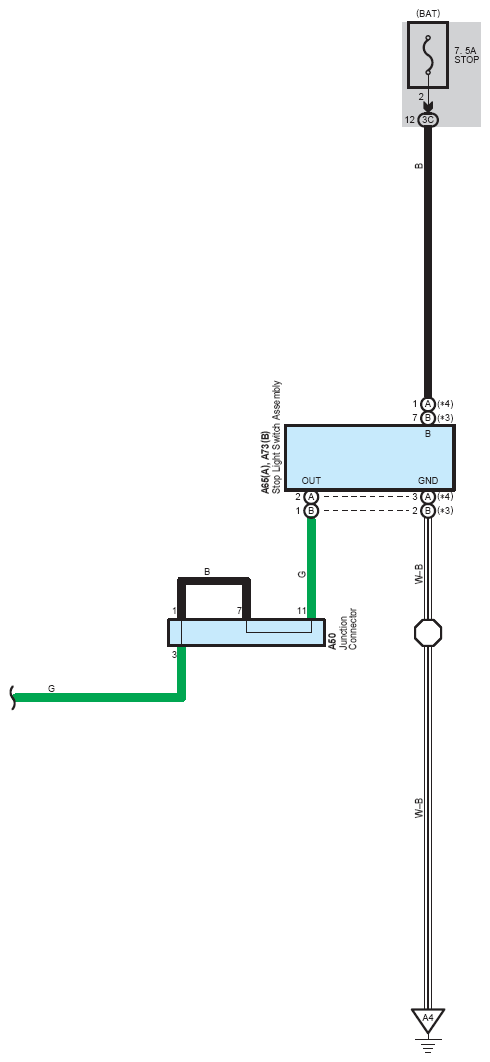

Fig 1: Shift Lock (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

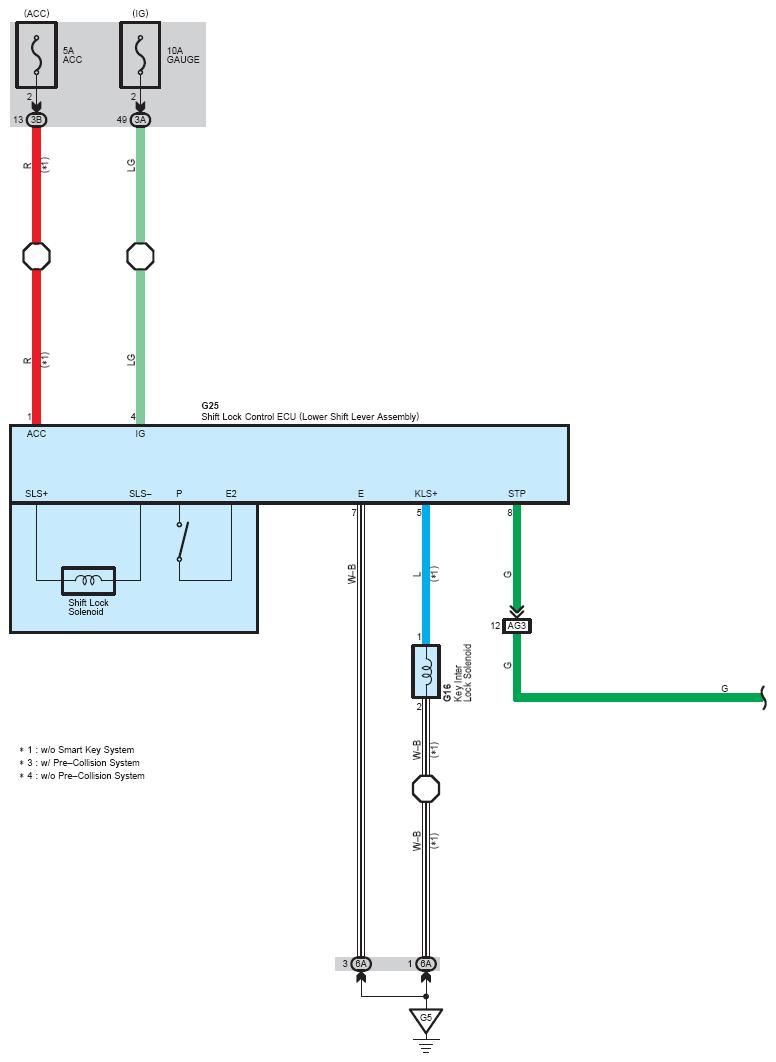

Fig 2: Shift Lock (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
