Dynamic Radar Cruise Control: Connectors

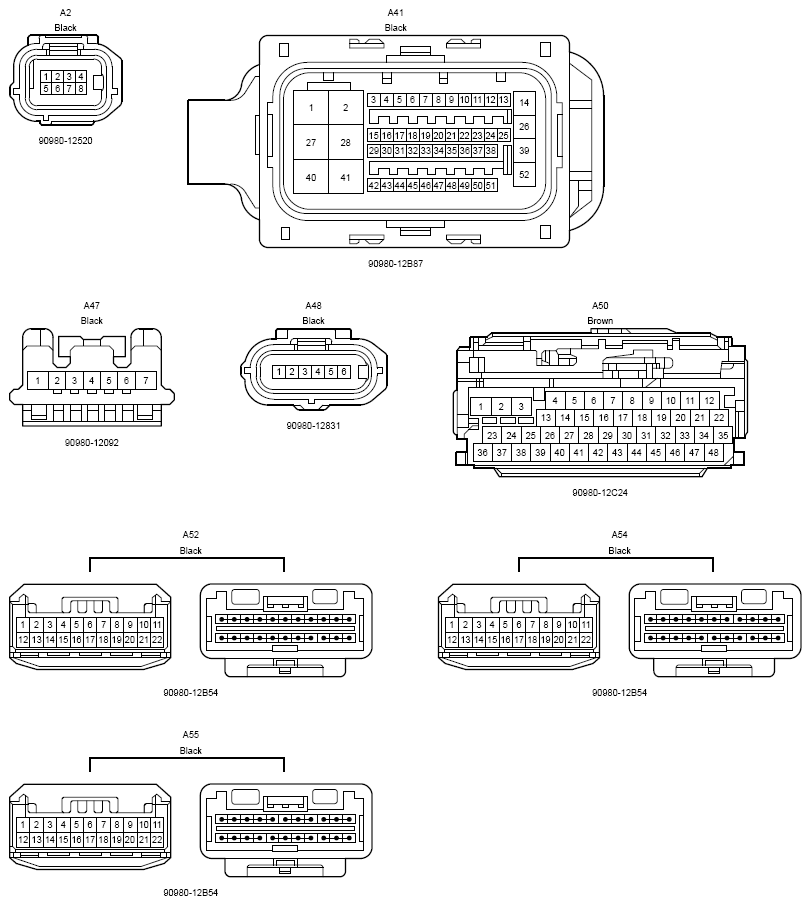

Fig 1: Connectors (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

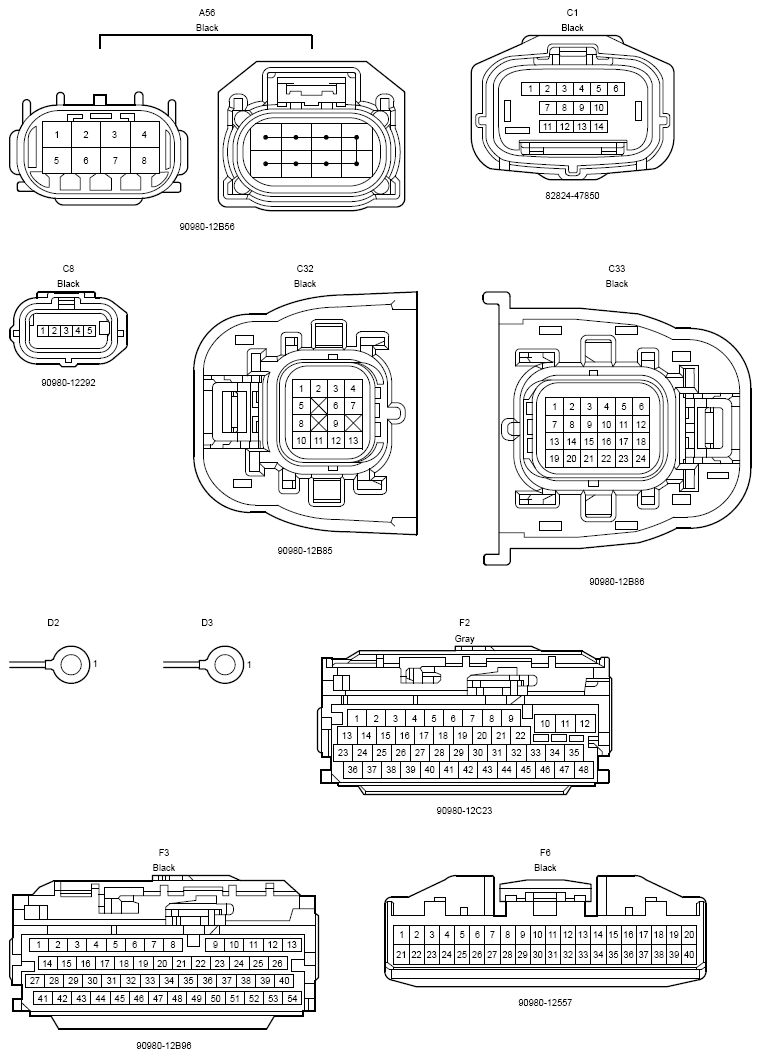

Fig 2: Connectors (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

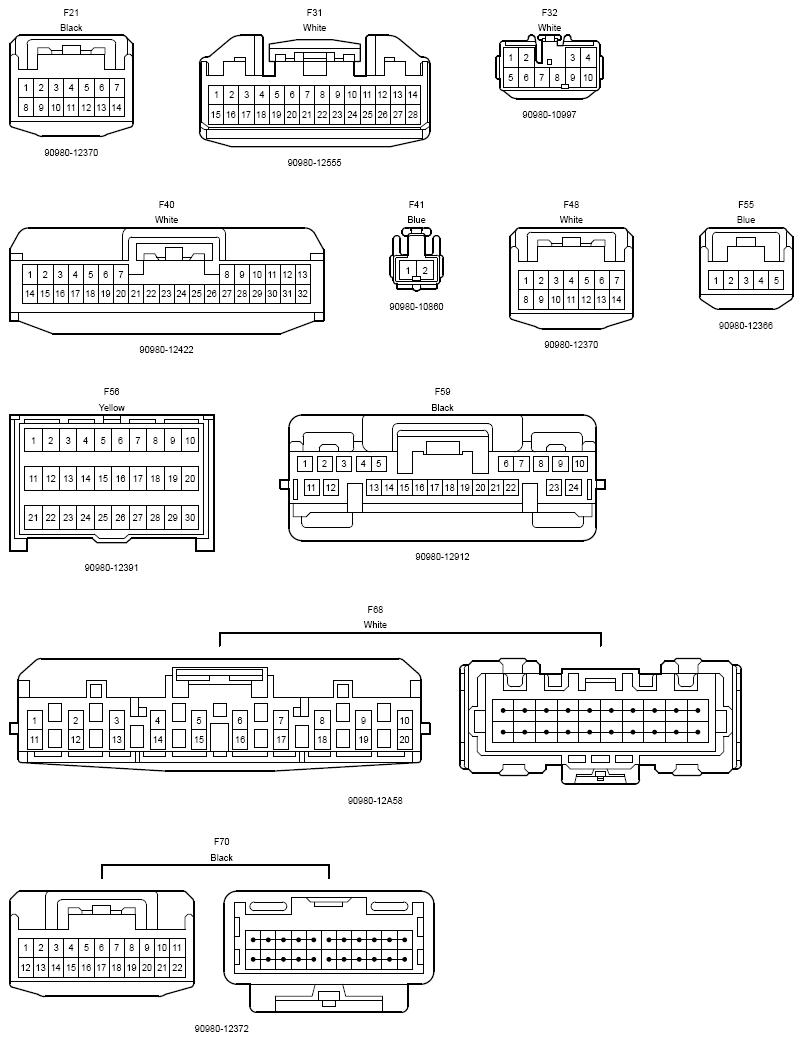

Fig 3: Connectors (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

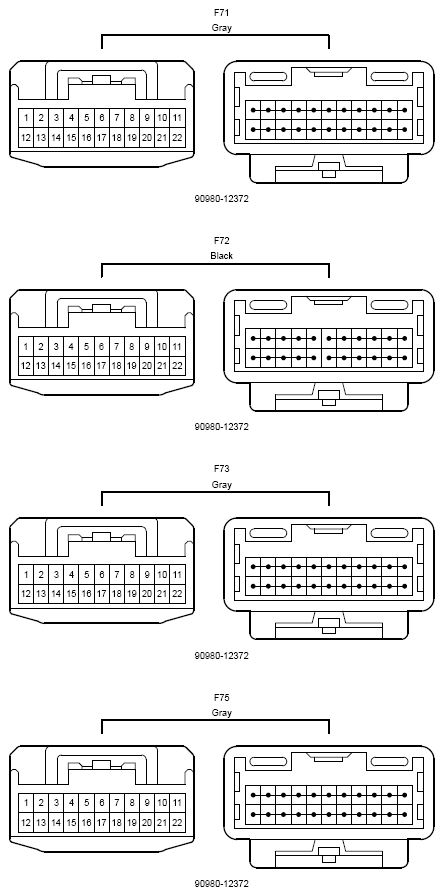

Fig 4: Connectors (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

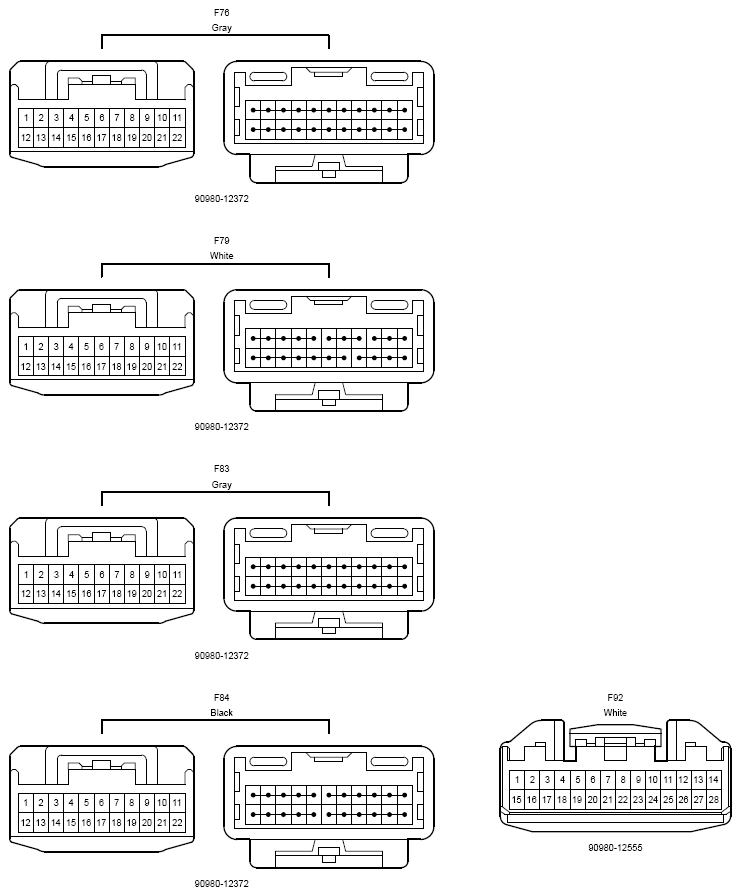

Fig 5: Connectors (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

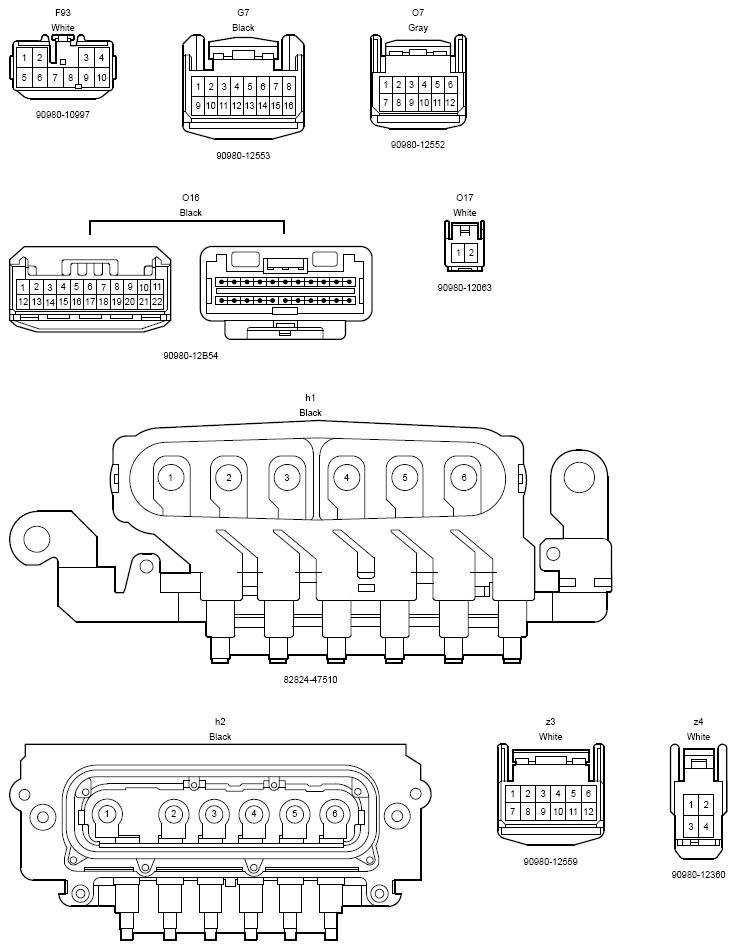

Fig 6: Connectors (6 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

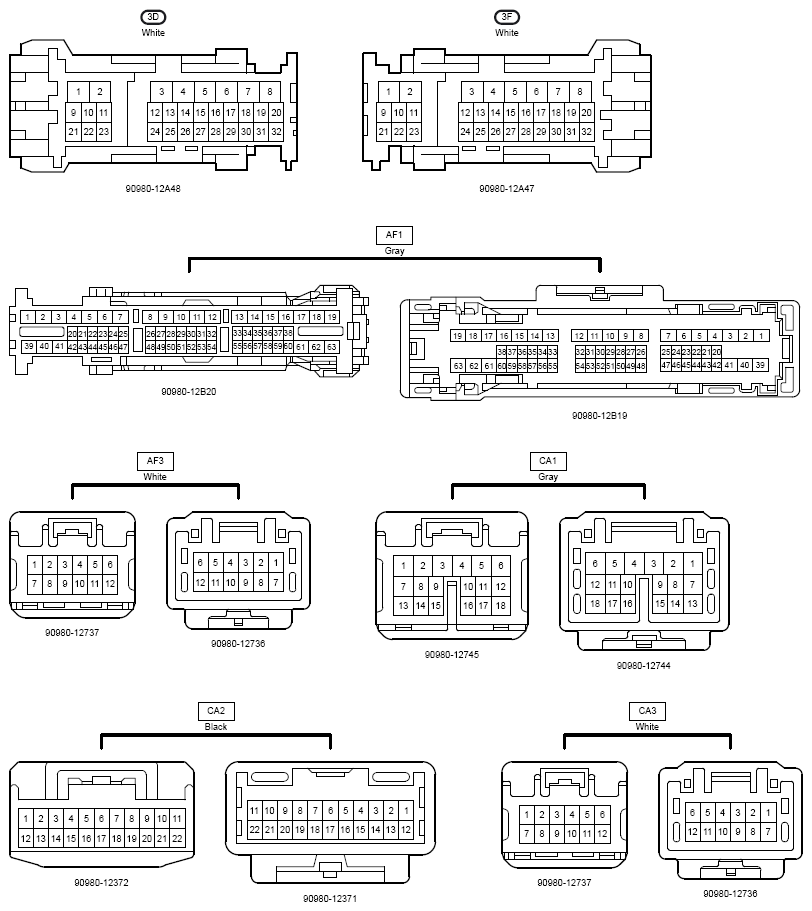

Fig 7: Connectors (7 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

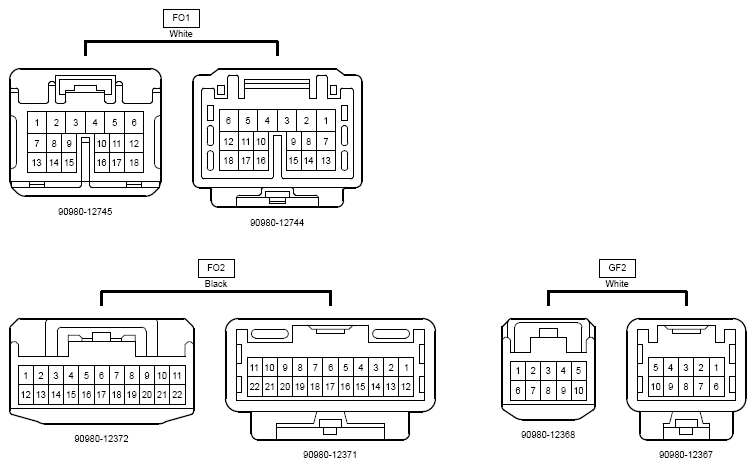

Fig 8: Connectors (8 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
