System Diagrams

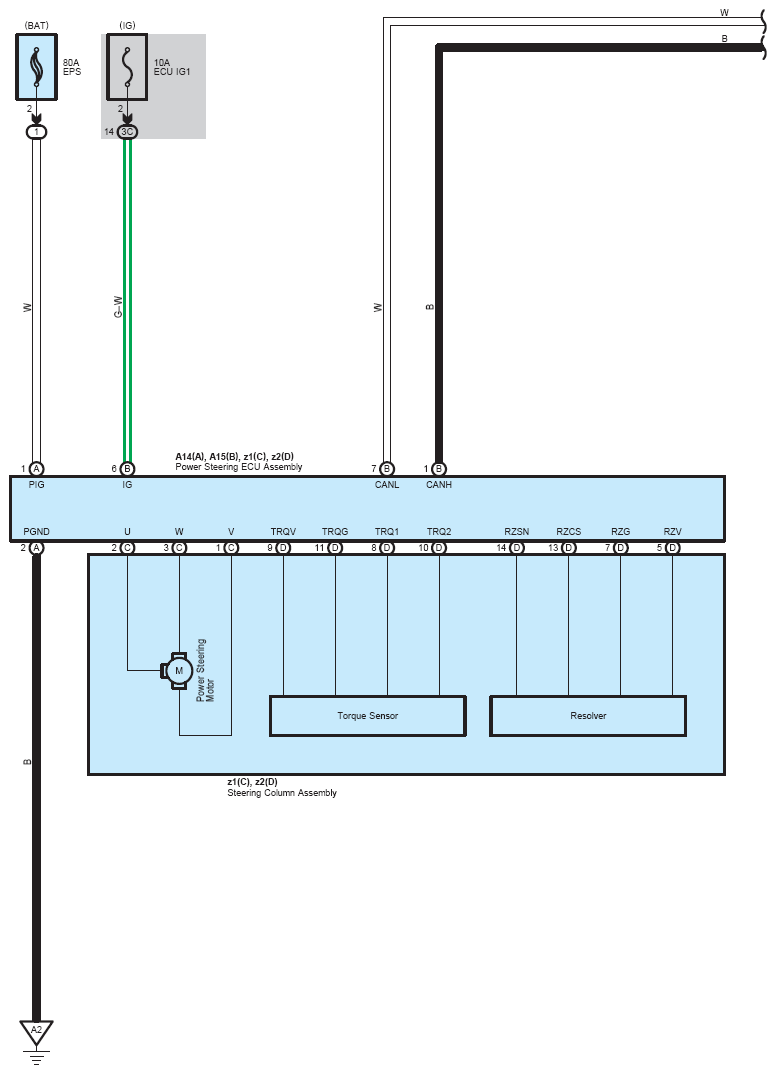

Fig 1: EPS (1 Of 5)

G12191935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: EPS (2 Of 5)

G12191936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

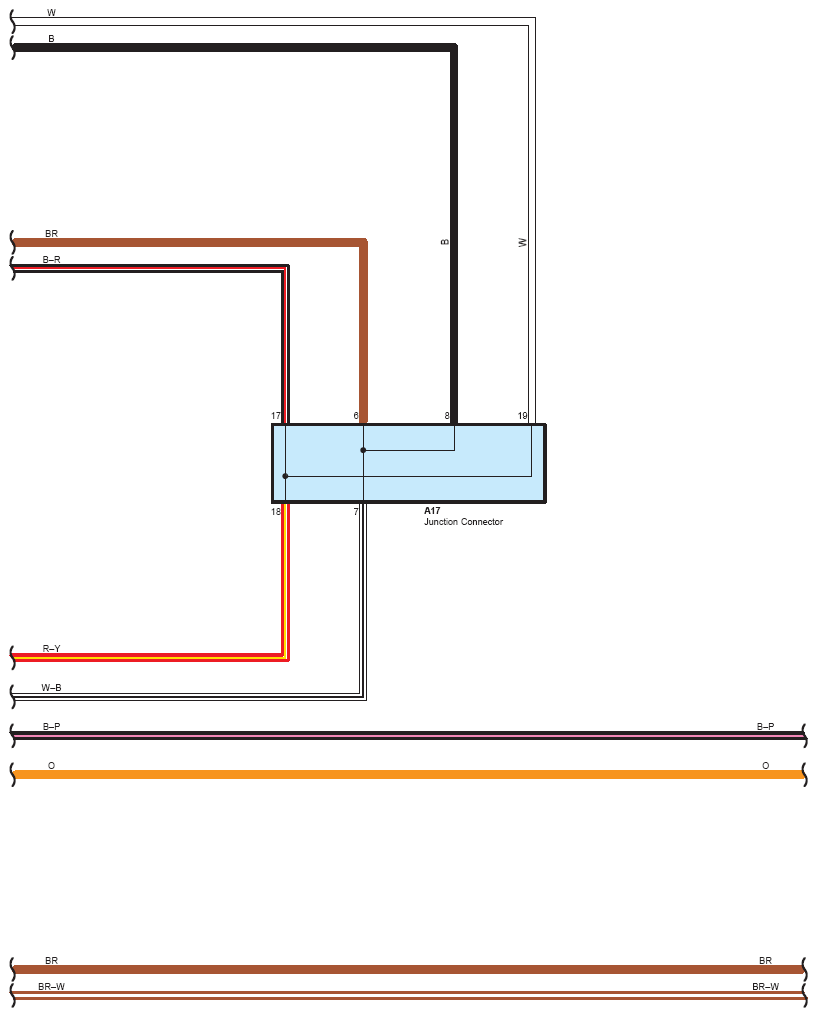

Fig 3: EPS (3 Of 5)

G12191937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

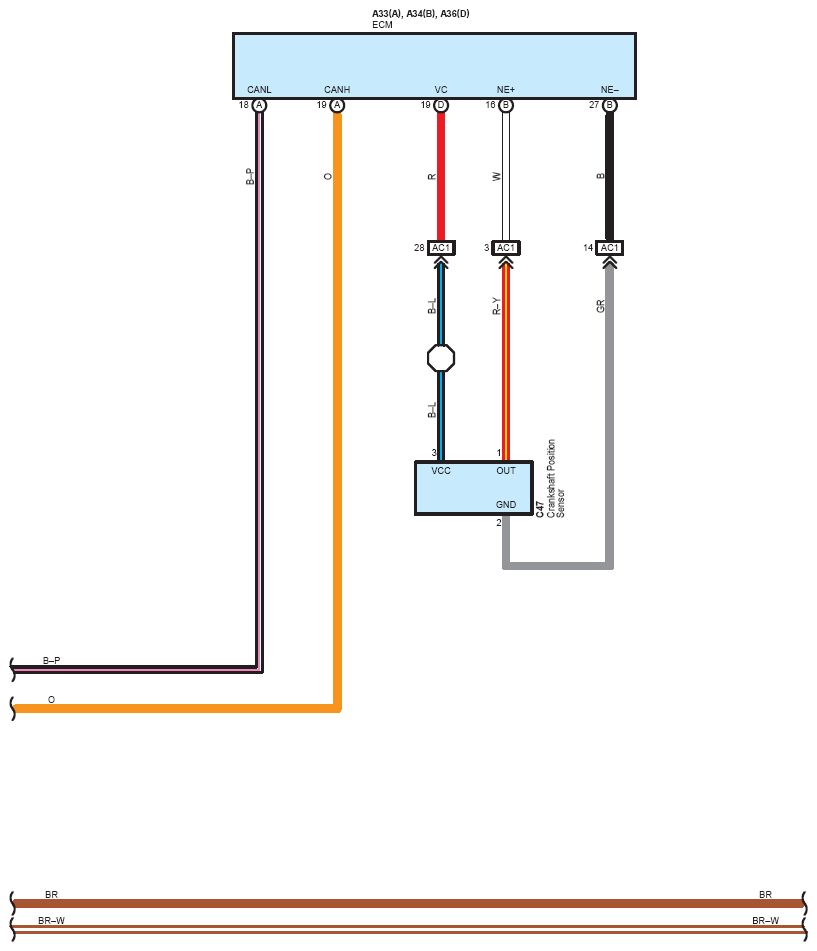

Fig 4: EPS (4 Of 5)

G12191938

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

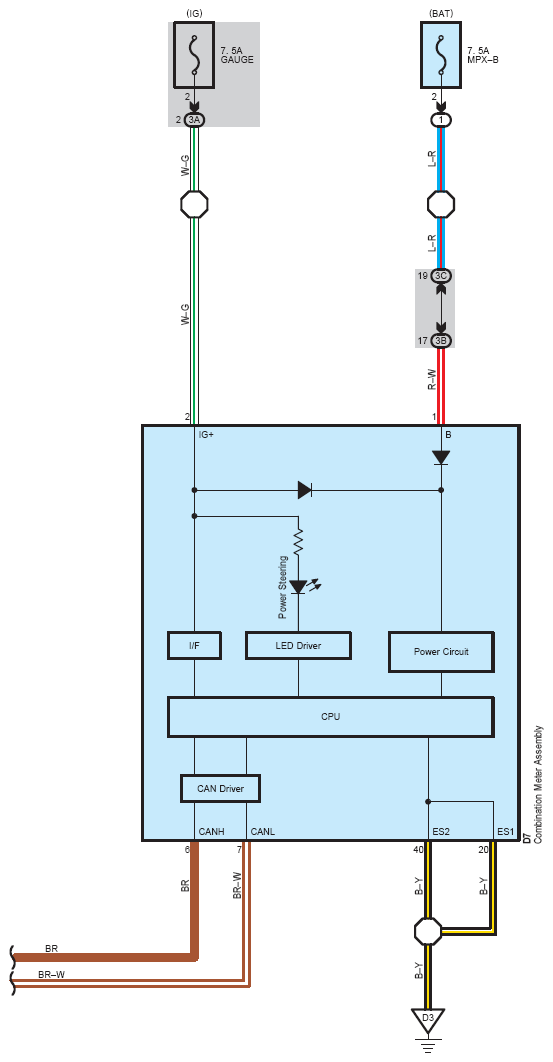

Fig 5: EPS (5 Of 5)

G12191939

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
