Home >> Toyota >> 2017 >> 86 Base, Automatic Trans >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Ignition >> Connectors

OEM System Circuits: Ignition: Connectors

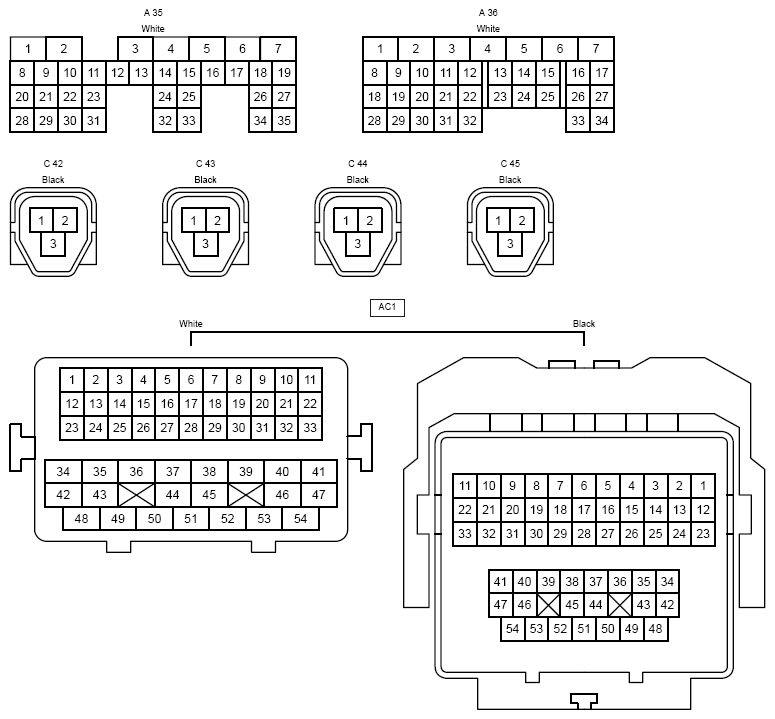

Fig 1: Connectors
G12192030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
