Pre-Collision System: Connectors

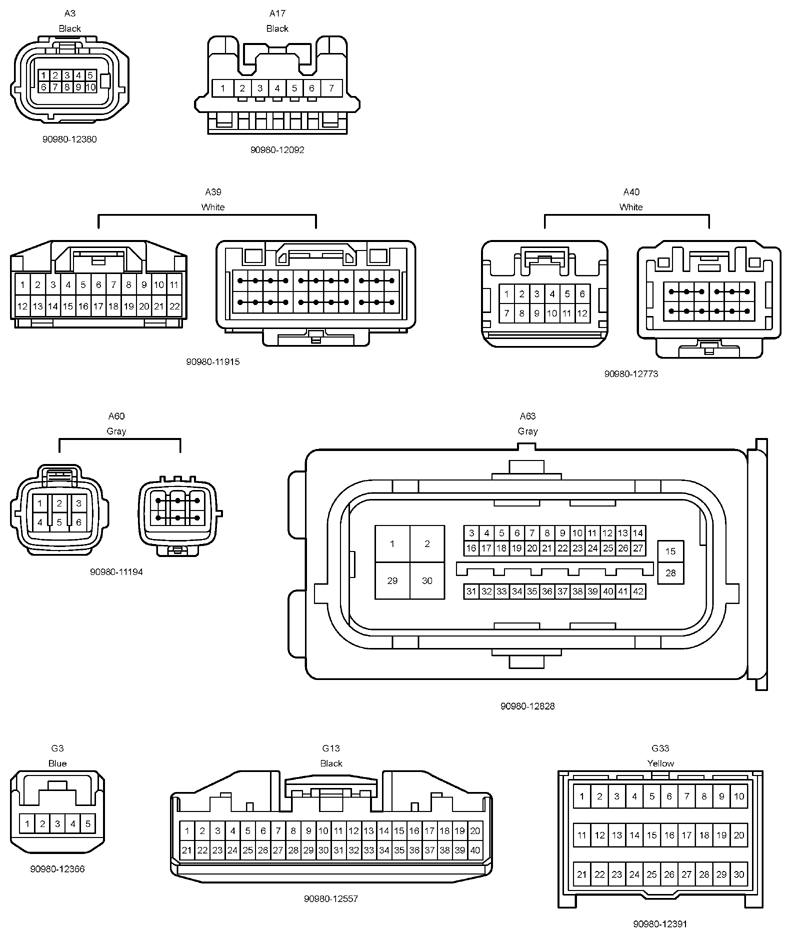

Fig 1: Connectors (1 Of 5)
G12204370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

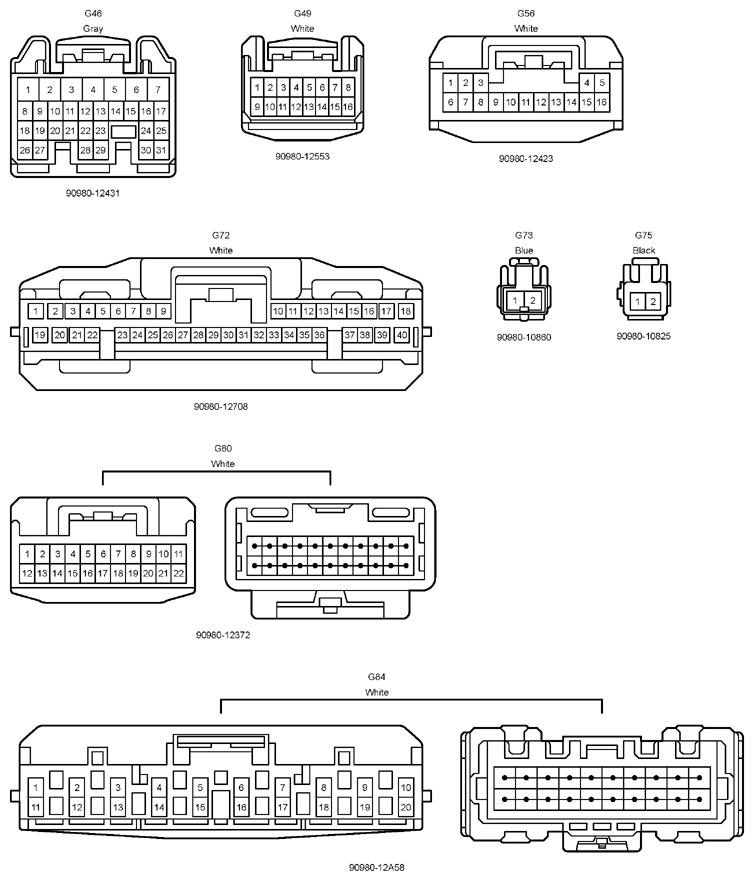

Fig 2: Connectors (2 Of 5)
G12204371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

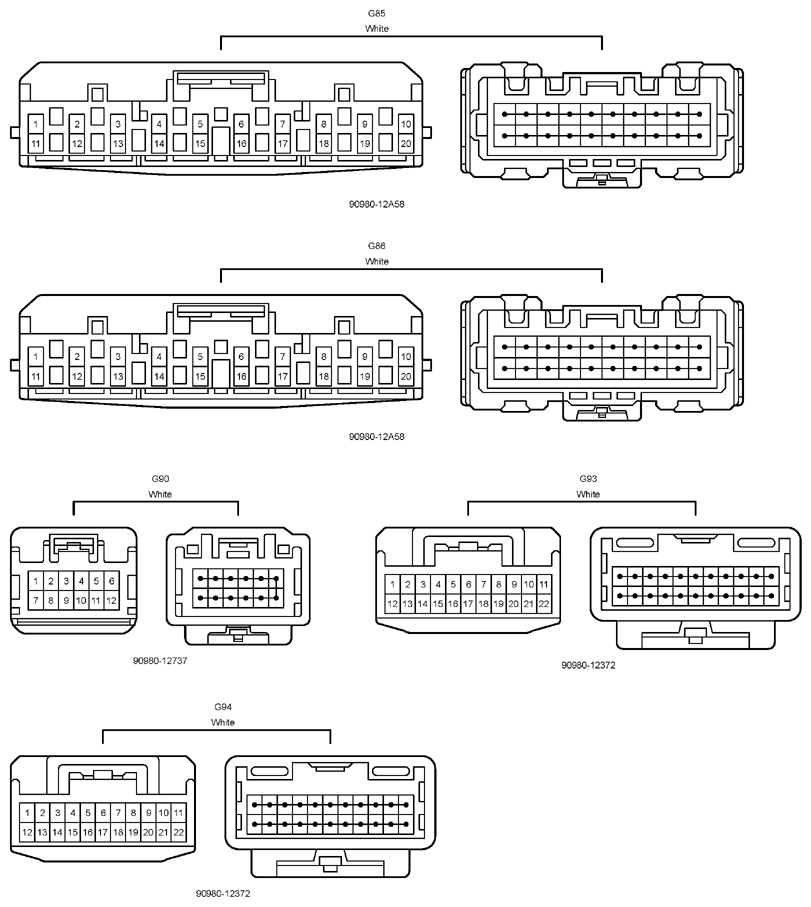

Fig 3: Connectors (3 Of 5)
G12204372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

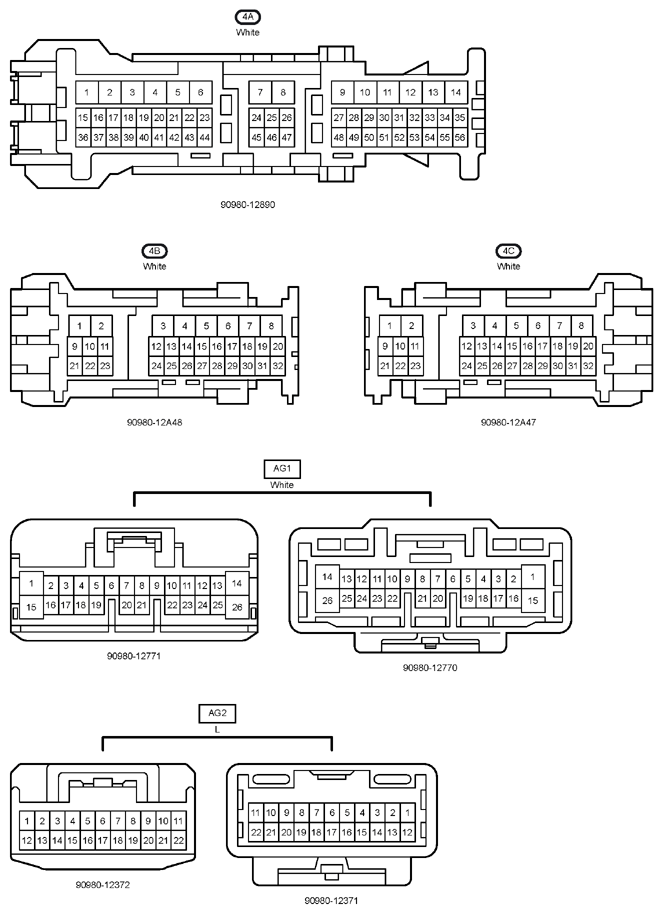

Fig 4: Connectors (4 Of 5)
G12204373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Connectors (5 Of 5)
G12204374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
