Vehicle Proximity Notification System: Connectors

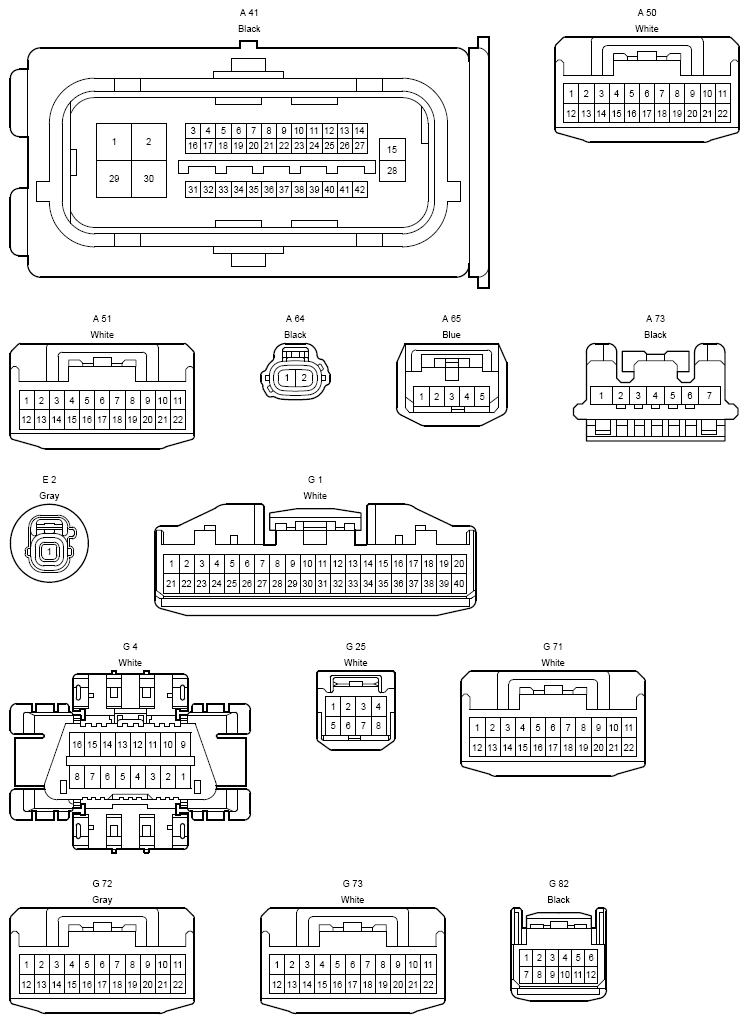

Fig 1: Connectors (1 Of 2)

G12211458

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

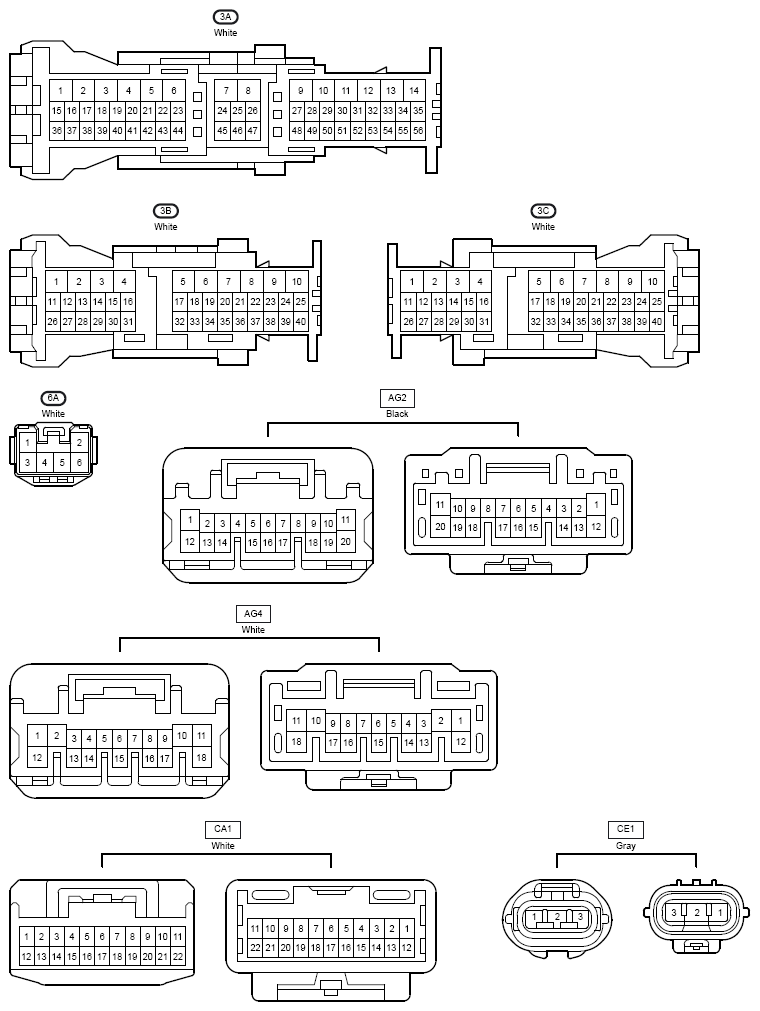

Fig 2: Connectors (2 Of 2)

G12211459

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
