Power Window: Connectors

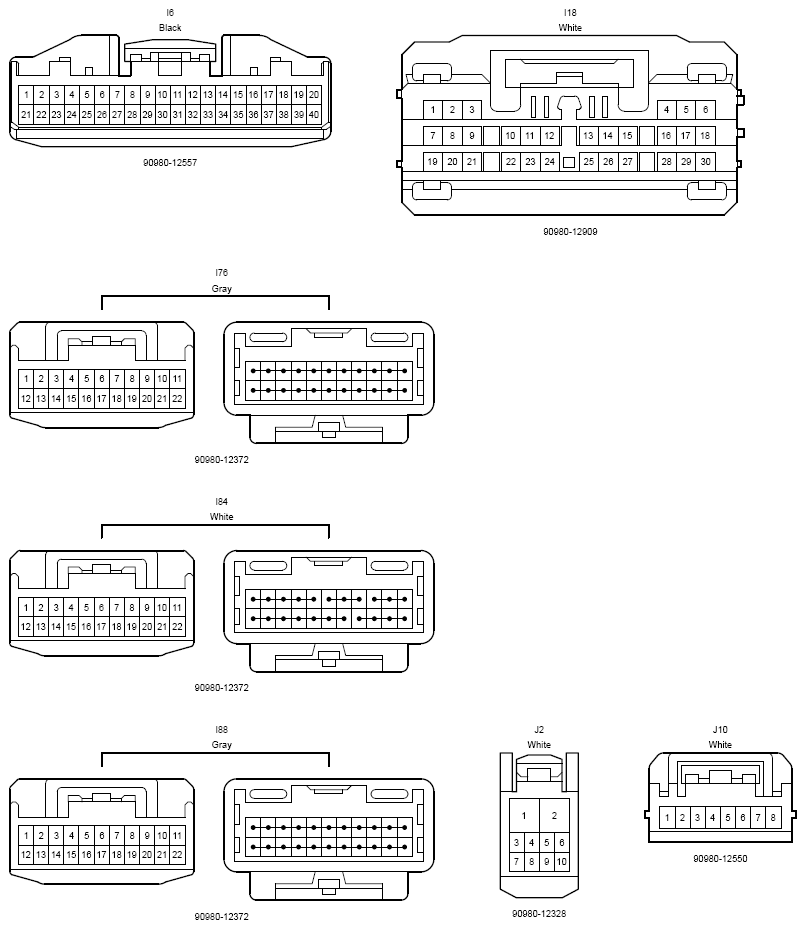

Fig 1: Connectors (1 Of 4)
G12210664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

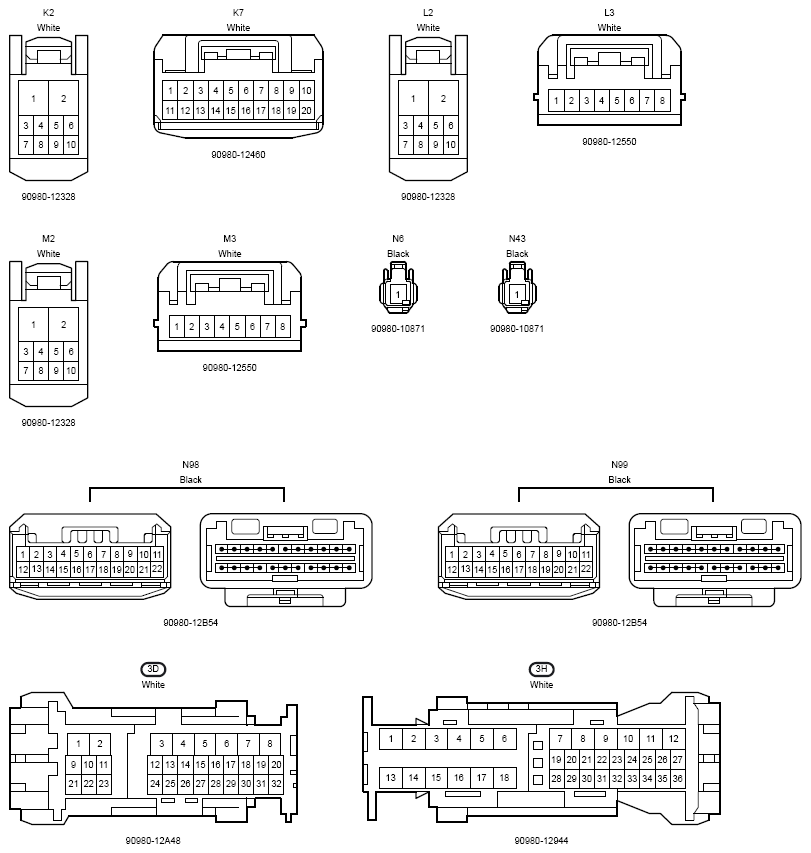

Fig 2: Connectors (2 Of 4)
G12210665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

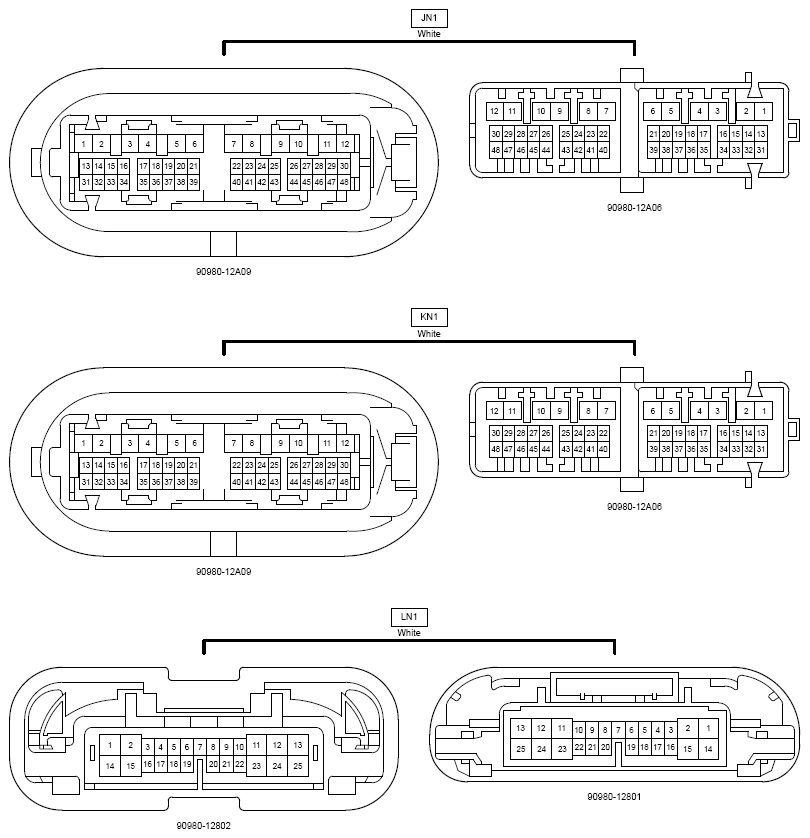

Fig 3: Connectors (3 Of 4)
G12210666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

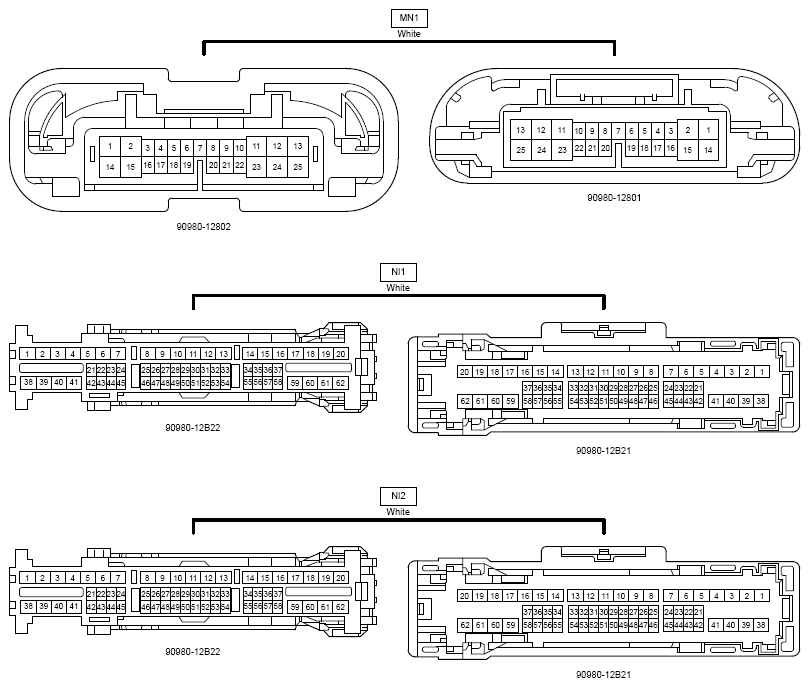

Fig 4: Connectors (4 Of 4)
G12210667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
