Automatic Light Control, Light Auto Turn Off System
>>
System Diagrams
System Diagrams

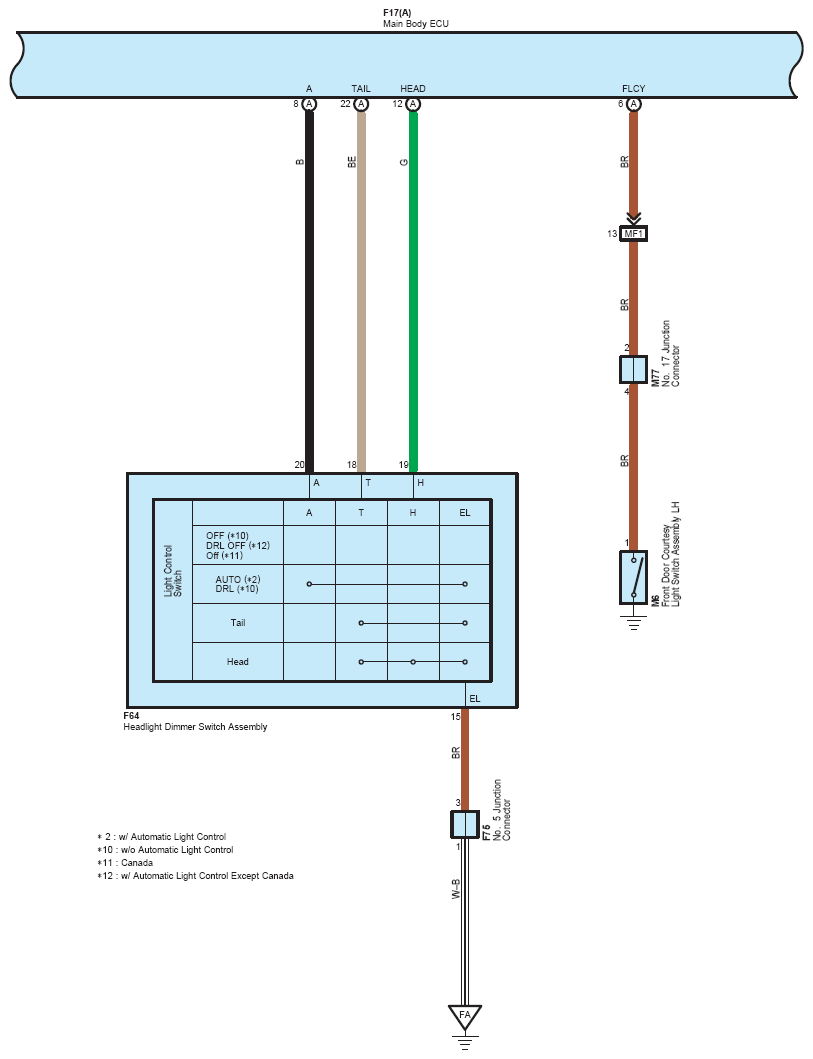

Fig 1: Automatic Light Control, Light Auto Turn Off System (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

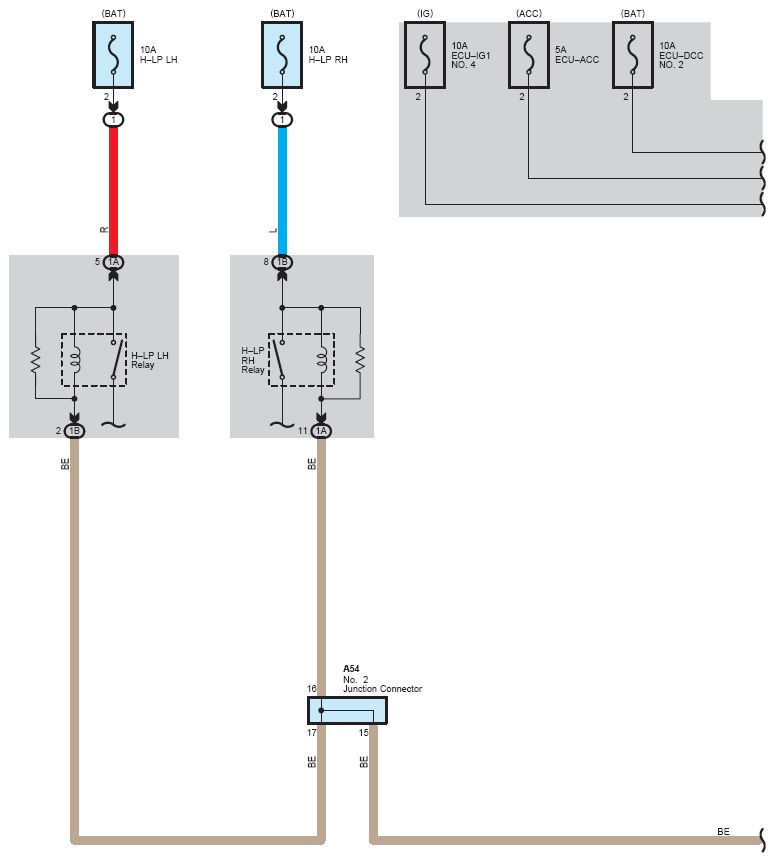

Fig 2: Automatic Light Control, Light Auto Turn Off System (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

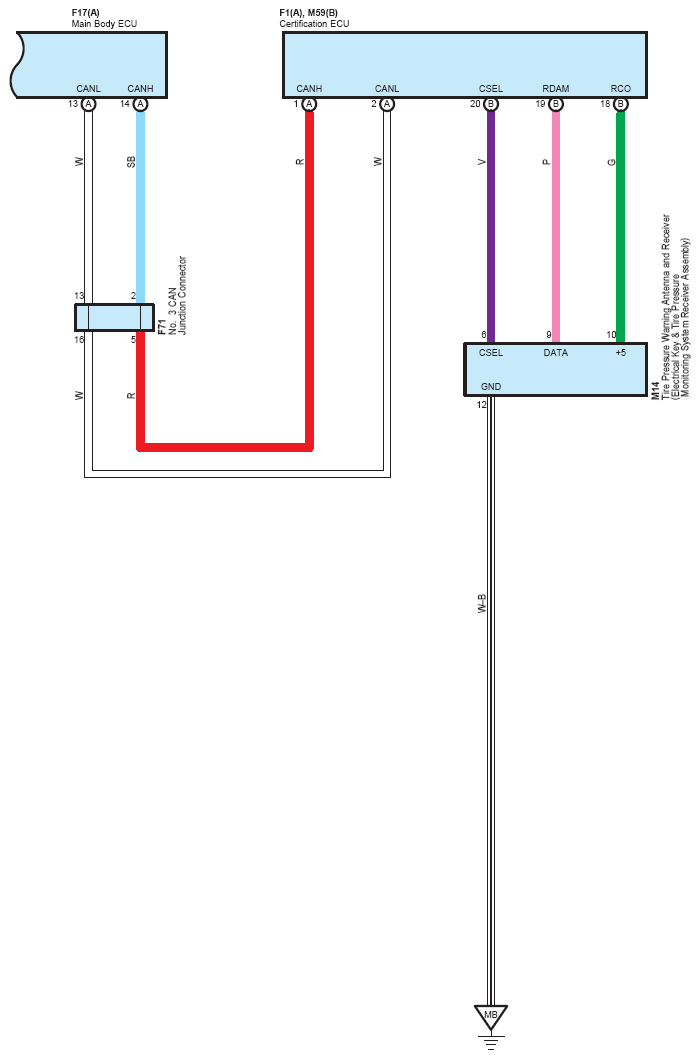

Fig 3: Automatic Light Control, Light Auto Turn Off System (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

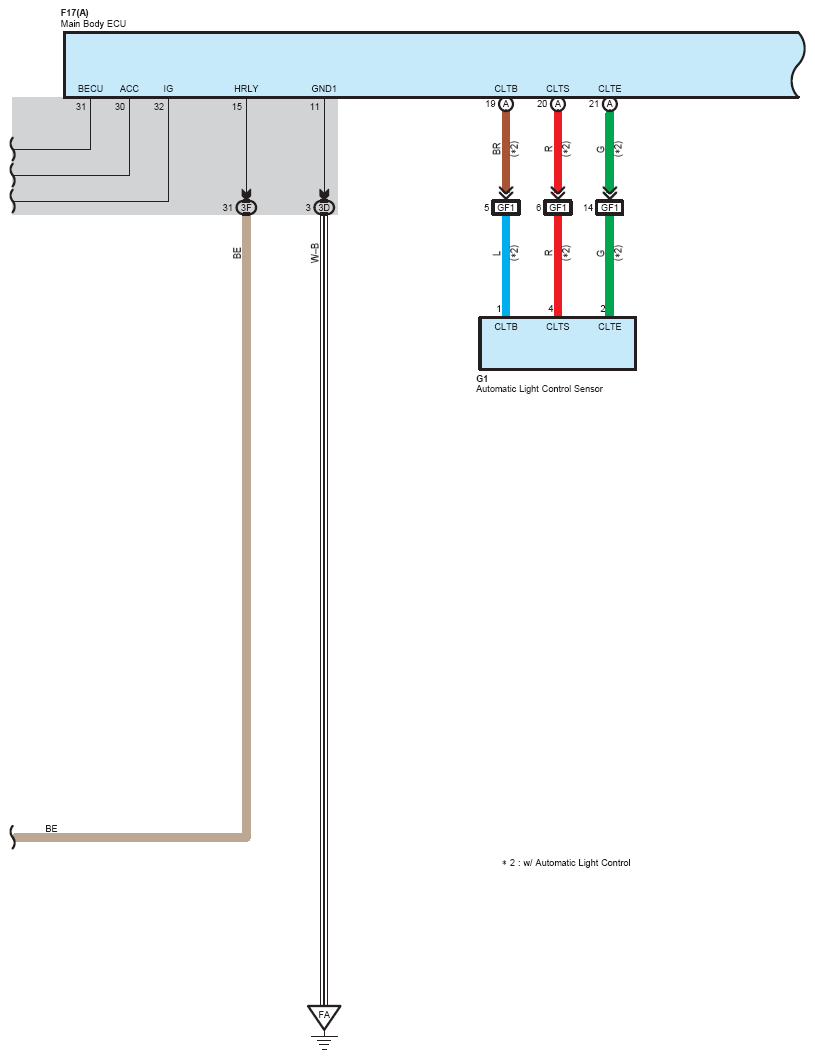

Fig 4: Automatic Light Control, Light Auto Turn Off System (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
