Hold-On Winding

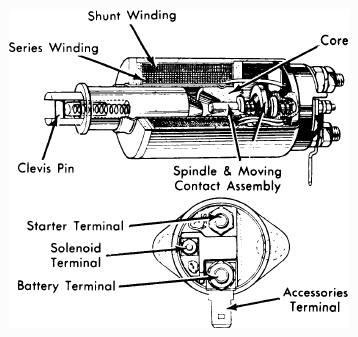

Connect ohmmeter between small unmarked terminal of solenoid and a good ground on solenoid body. If resistance is not within specifications, hold-on (shunt) windings are bad, replace solenoid.
| Vehicle Application |
Resistance (Ohms) |
| MGB |
67-73 |
| TR6 & TR7 |
76-.80 |
| Jaguar V12 |
1.49-1.71 |
