Evaporative Emissions System: Maintenance

Every 12, 500 miles, check all fuel lines and connections for chafing, leakage, or deterioration. Also check fuel cap for proper sealing. Every 50, 000 miles, replace carbon canisters.

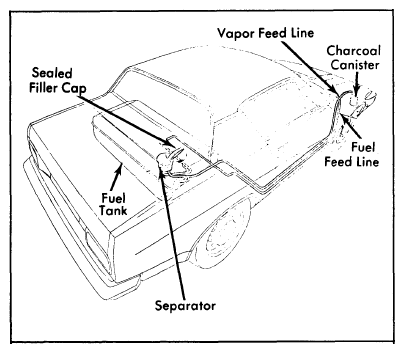

Fig 1: TR7 Fuel Evaporation System
G09350863Courtesy of NOT AVAILABLE
