Ignition Timing

Check or adjust engine timing with engine idling at normal operating temperature. If correction is needed, rotate distributor.

Ignition Timing Specifications

Application	RPM	Timing
All Models	800	2°ATDC

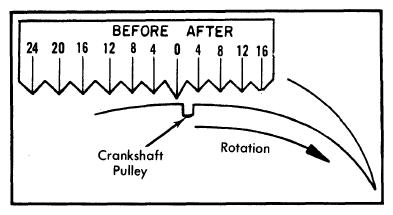

Fig 1: Ignition Timing Mark Location

Courtesy of NOT AVAILABLE
