Evaporative Emissions System: Description

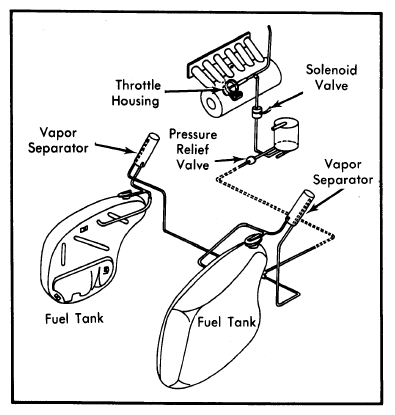

The fuel evaporation system is designed to keep fuel vapors from escaping the crankcase and fuel tank. On Jaguar models, the system consists of fuel tanks with expansion space, vapor separators, orifice at each fuel filter cap, pressure relief valve, canister, canister purge solenoid valve and purge orifice. Triumph models use a vapor separator, orifice, 2 canisters and a purge line.
