eMotor Cover Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

1. Remove eMotor (FWD). Refer to EMOTOR (FWD) REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

2. Remove 4 expanding rivet (1).

   Courtesy of VINFAST, LLC

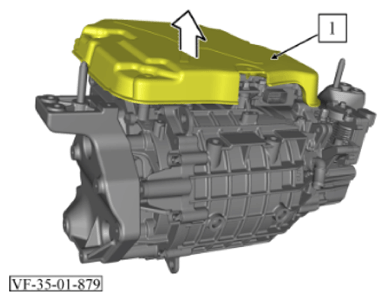

3. Remove the eMotor cover (1) upwards.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install eMotor (FWD). Refer to EMOTOR (FWD) REMOVAL AND INSTALLATION/REPLACEMENT
3. Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING SCAN TOOL IN SERVICE
