Multi Stalk Switch Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove Steering Wheel. Refer to STEERING WHEEL REMOVAL AND INSTALLATION/REPLACEMENT
2. Remove Steering Column Upper and Lower Trim. Refer to STEERING COLUMN UPPER AND LOWER TRIM COVER REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

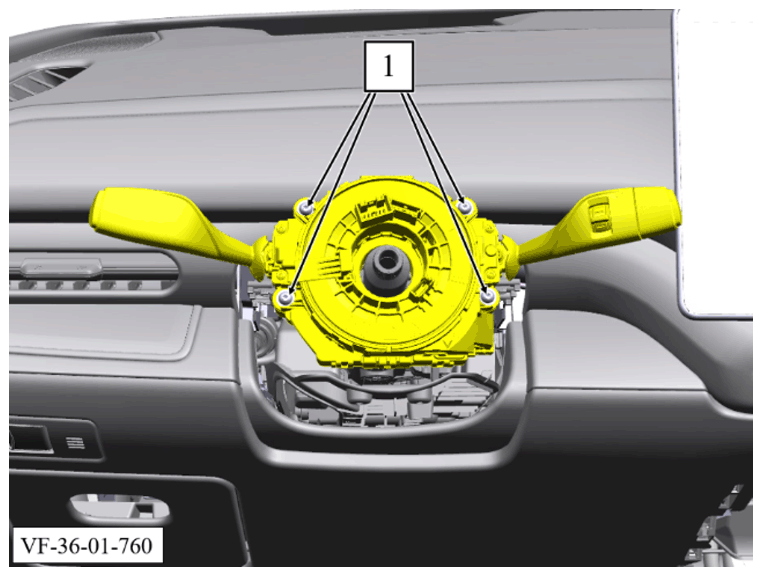

3. Remove 4 Screws (1).

   Torque: 2 Nm

   Courtesy of VINFAST, LLC

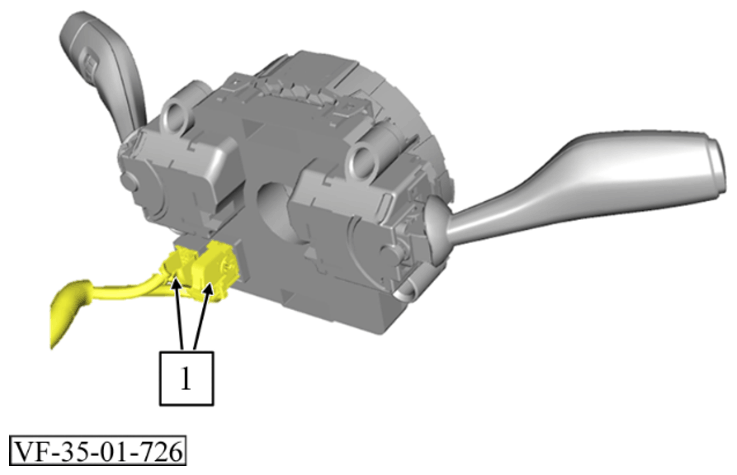

4. Unlock and disconnect both electrical connectors (1).

   Courtesy of VINFAST, LLC

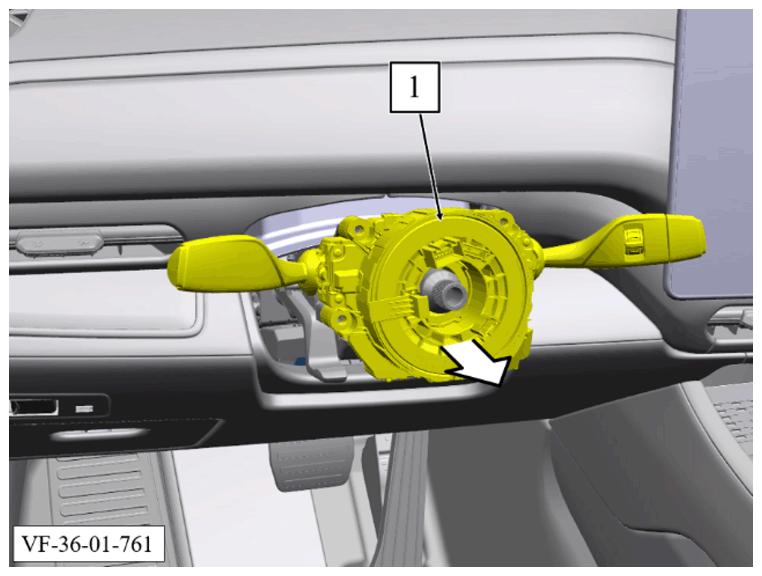

5. Remove the Multi Stalk Switch (1) in the direction of the arrow.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following

   All fasteners must be tightened to torque specification!

2. Install Steering Column Upper and Lower Trim. Refer to STEERING COLUMN UPPER AND LOWER TRIM COVER REMOVAL AND INSTALLATION/REPLACEMENT
3. Install Steering Wheel. Refer to STEERING WHEEL REMOVAL AND INSTALLATION/REPLACEMENT
4. Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING IDS IN SERVICE
