IP Harness Connector And Module Components Location

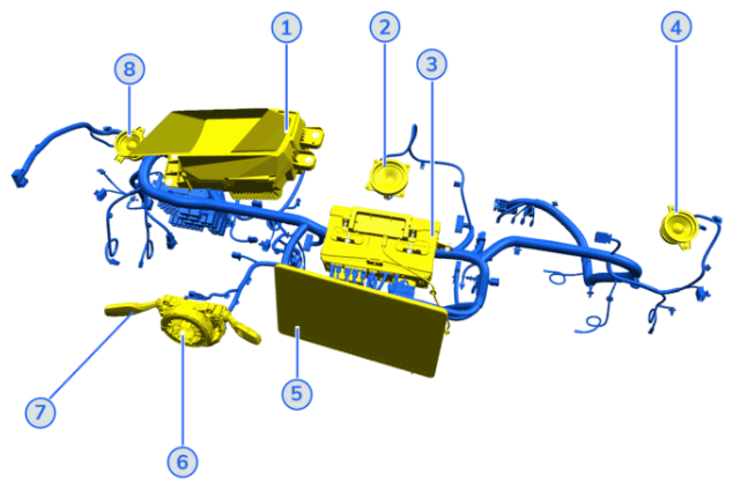

Location of IP Harness Connectors and Modules
Components
- Head-up display
- Loudspeaker Center Dual
- Multi-media head unit
- Speaker Midrange
- Multi-media display
- Clock spring
- Multi-function stalks
- Speaker Midrange

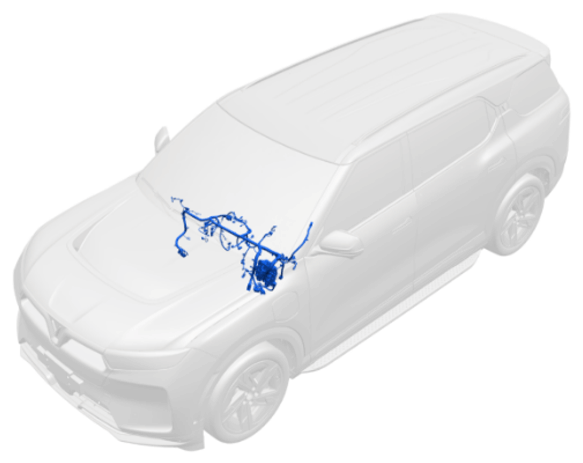

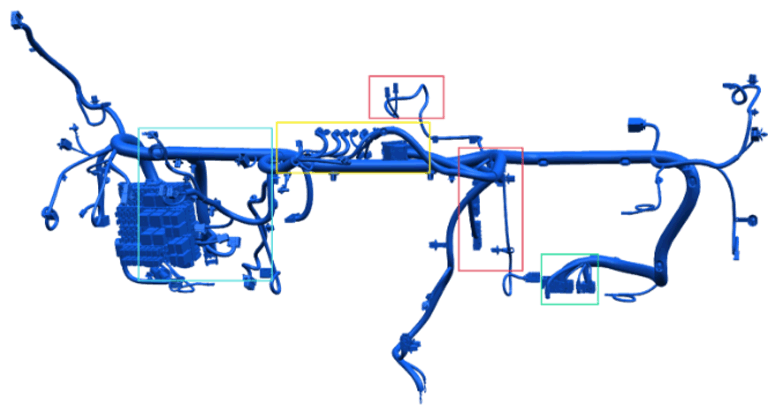

IP Harness Overview

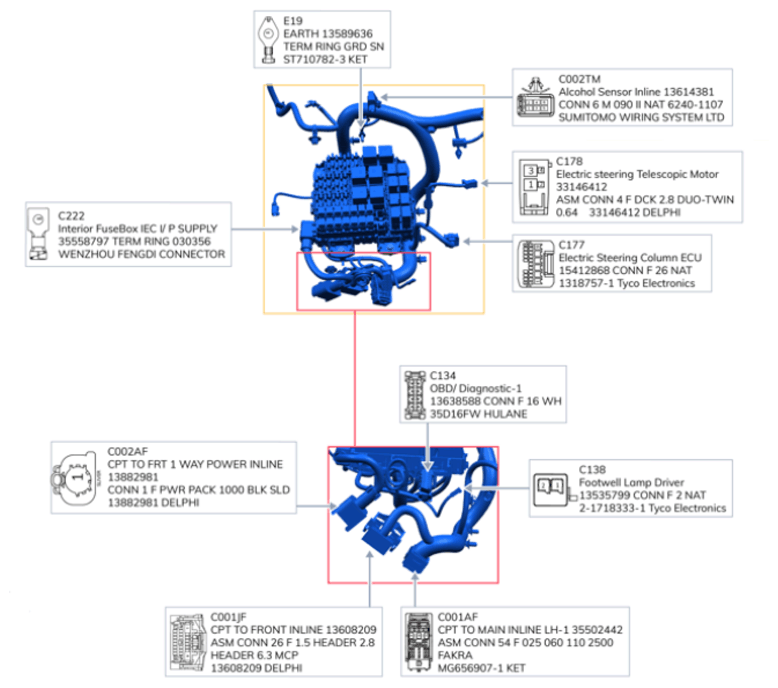

IP Harness Connector and Module on Left-Hand Side

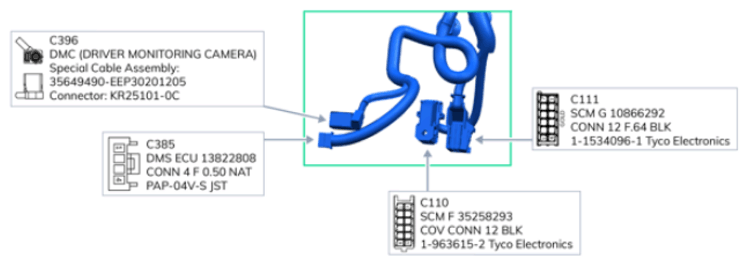

IP Harness Connector and Module on Lower Left-Hand Side

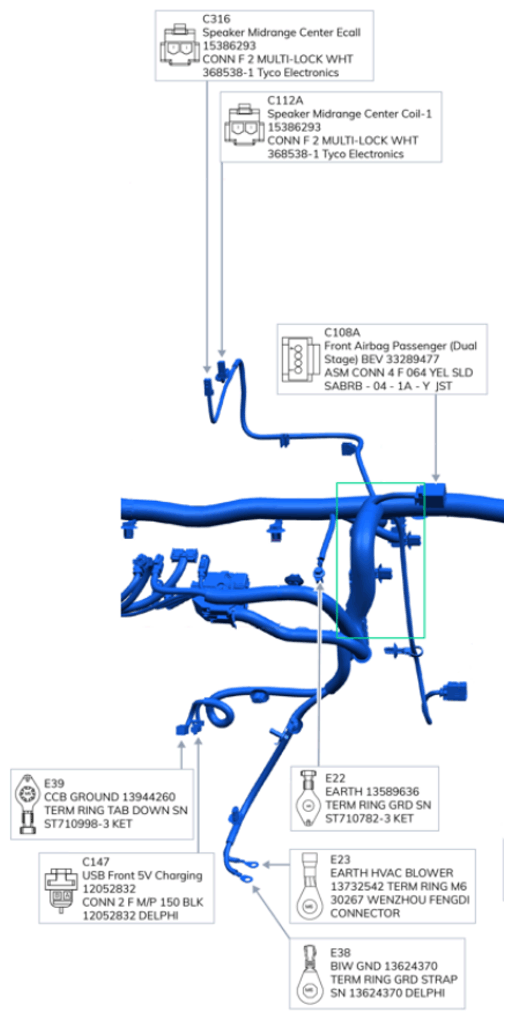

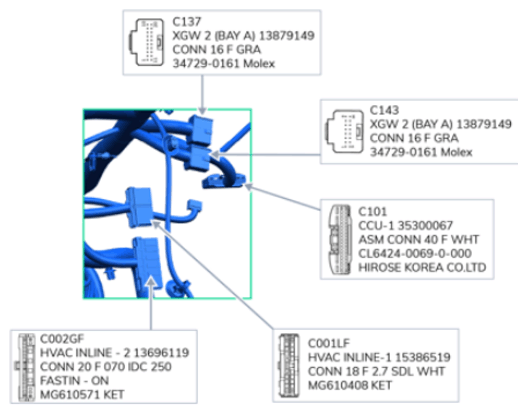

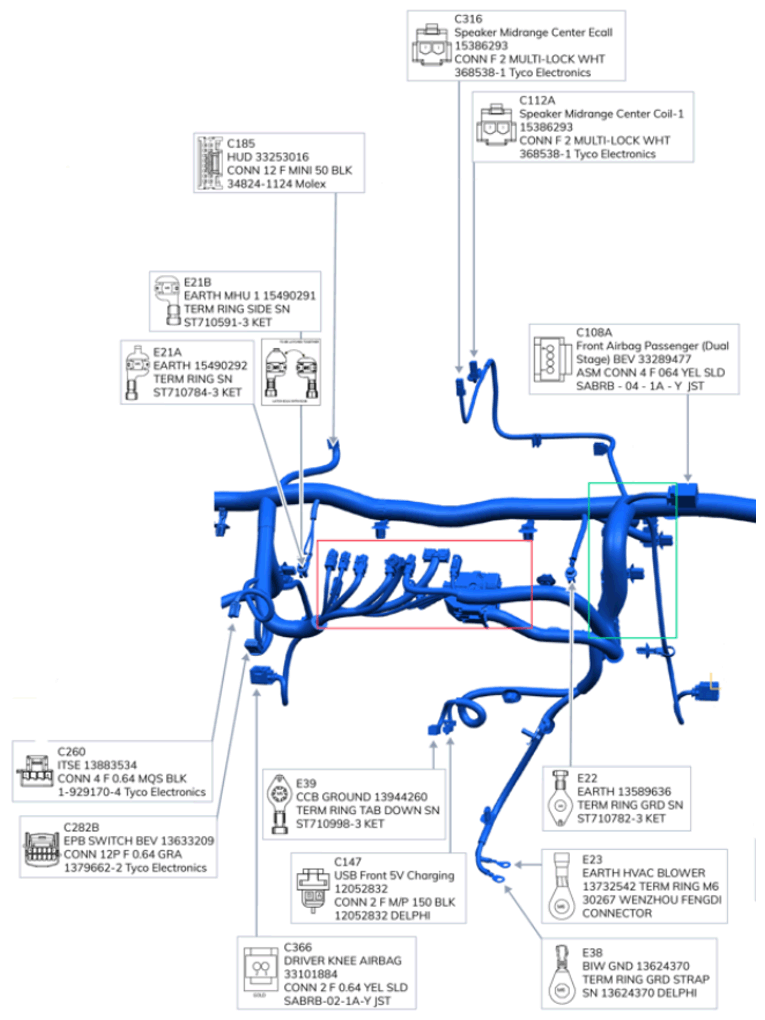

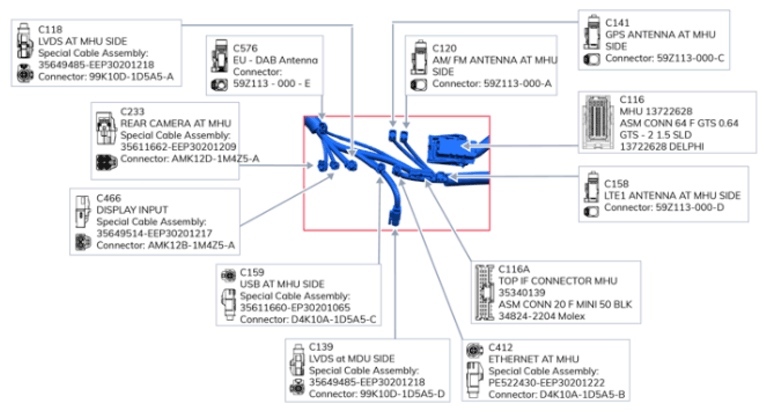

IP Harness Connector and Module in the Middle

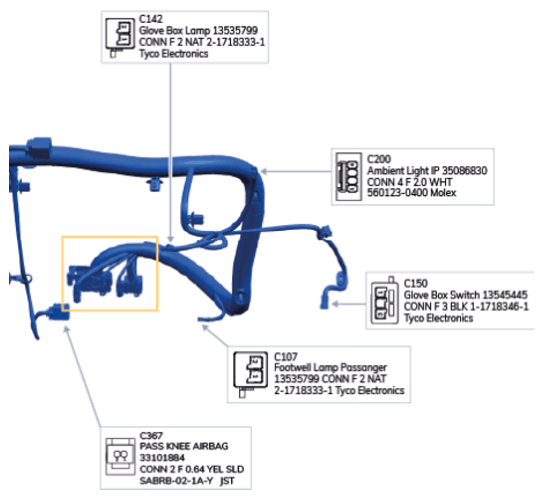

IP Harness Connector and Module on Right-Hand Side

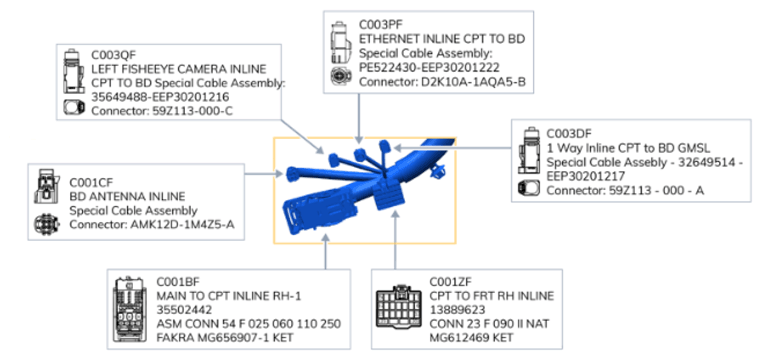

IP Harness Connector and Module on Lower Right-Hand Side
