Federal Vanagon: Notes

Warm engine to normal operating temperature. Turn engine off. Disconnect and plug distributor vacuum lines. Connect timing light. Start engine. With engine at correct idle speed, check timing. If timing is not to specifications, correct by turning distributor.

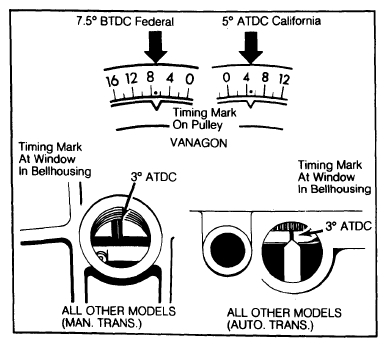

Fig 1: Ignition Timing Mark Locations

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
