Wiring Diagrams

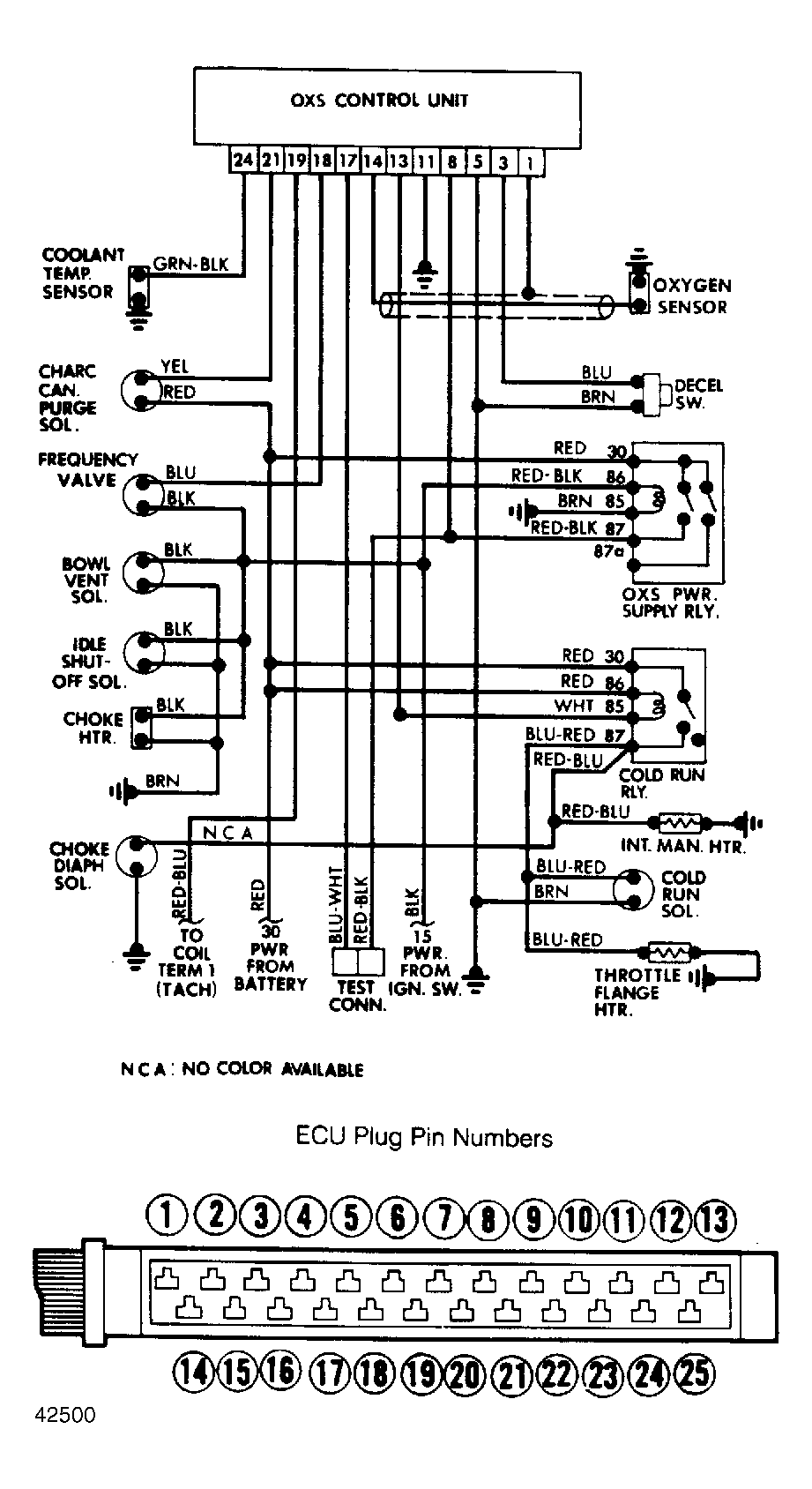

Fig 1: Wiring Diagram for Rabbit Feedback Carburetor Use pin numbers shown at ECU plug for testing procedure.
