Intake Air Sensor

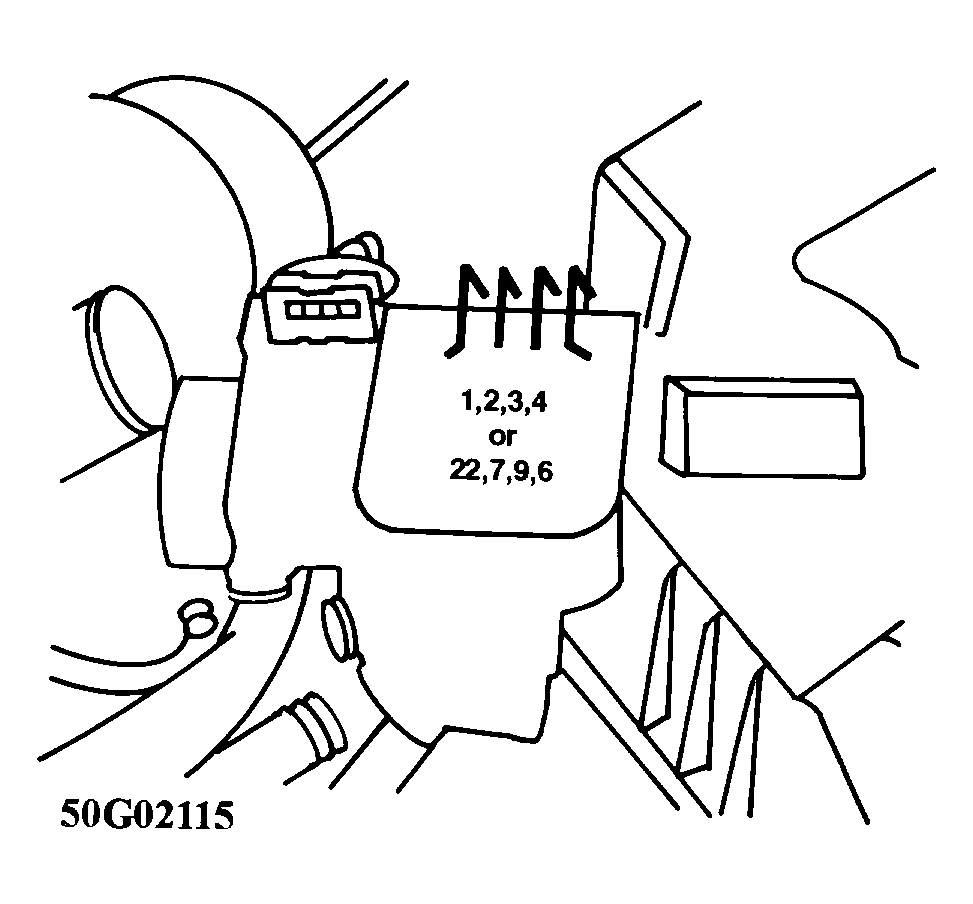

- Turn ignition off. Disconnect intake air hose. Unplug wiring connector from airflow sensor. Connect ohmmeter to terminals 6 and 9 of airflow sensor. Resistance should be approximately 560 ohms.
- Connect ohmmeter to terminals 7 and 9. Resistance should change as sensor flap is moved. Replace airflow meter if sensor fails any resistance test.
