Control Units

CONTROL UNITS LOCATION

Component	Location
Fuel Injection Control Unit	On right side of glove box.

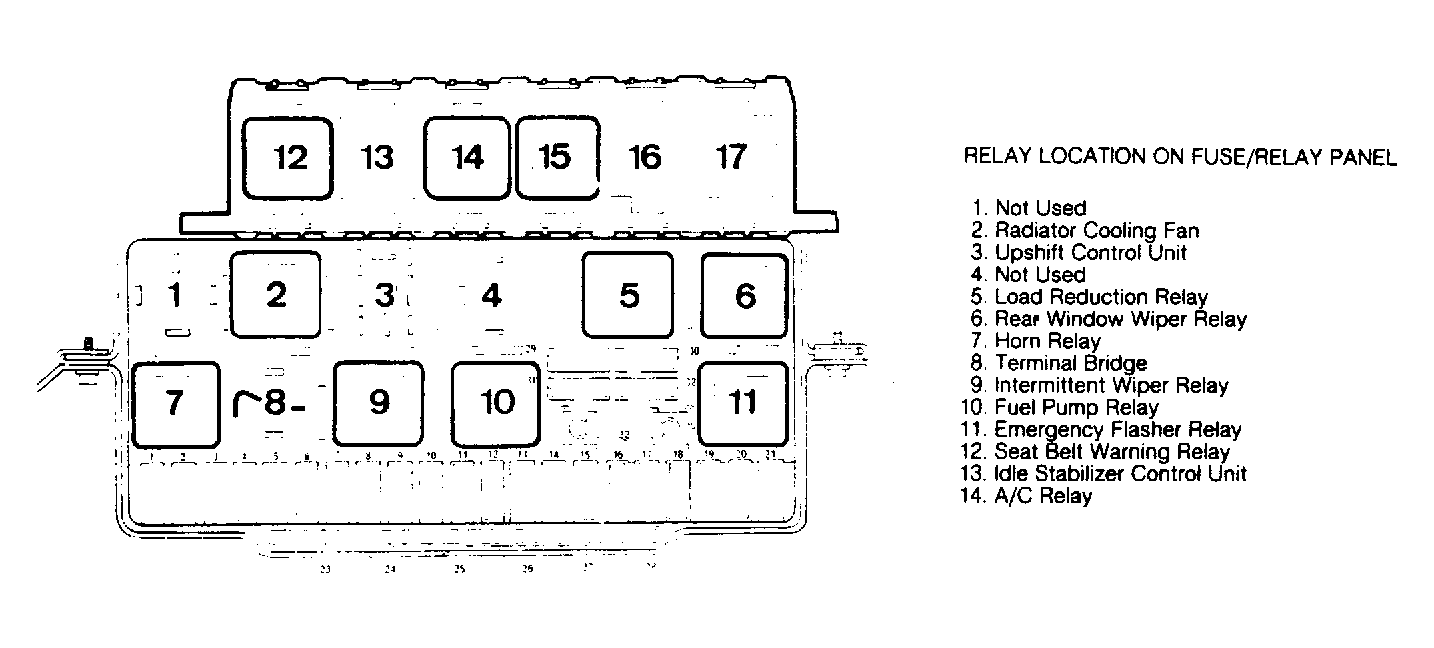

Idle Speed Stabilizer Control Unit	On fuse/relay panel. See Figure .
Transistorized Ignition Control Unit	Right side of the dash, to the right of the glove box. See Figure .
