Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Digifant Control Unit | Under right side of dash, behind glove box. |
| CIS-E Control Unit | On right side of glove box. |

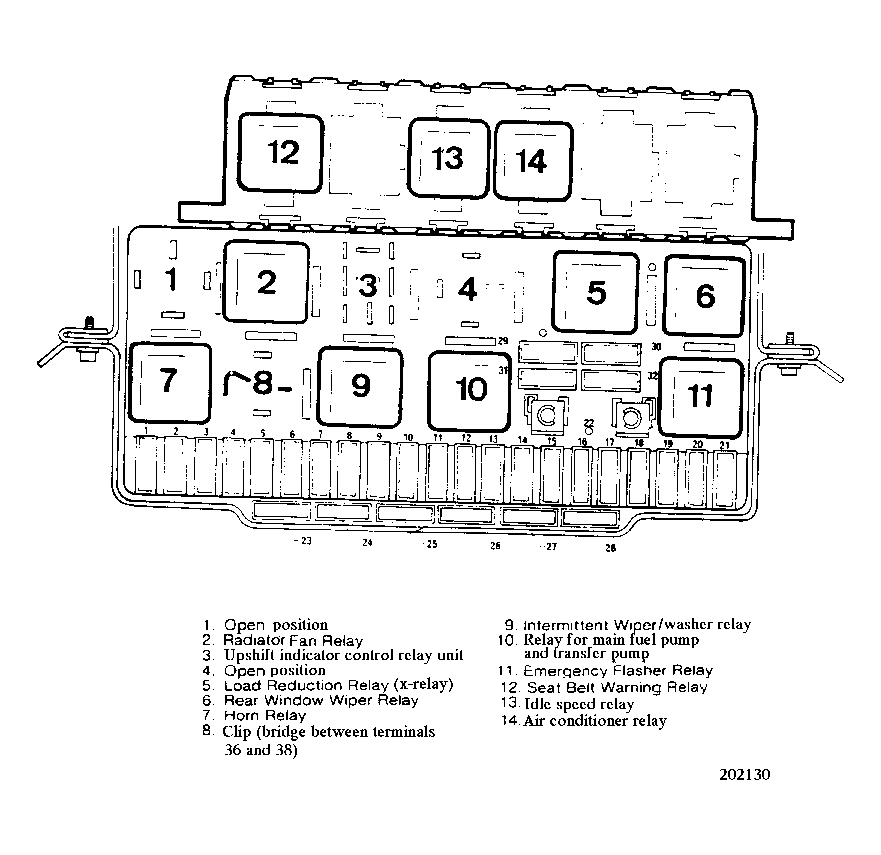

| Idle Stabilizer Control Unit | On fuse/relay panel. See Figure . |

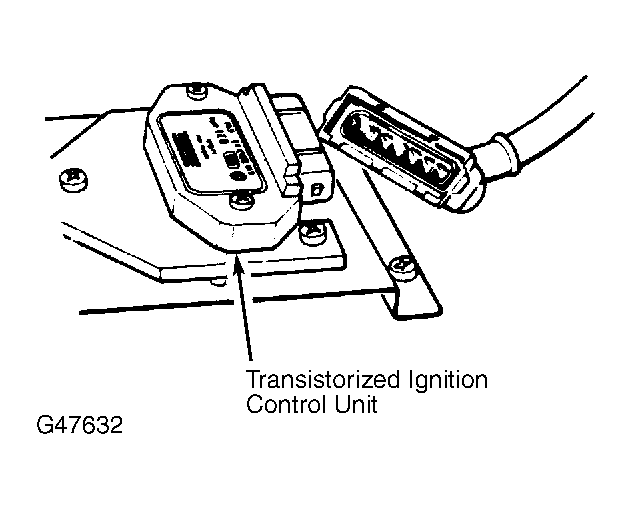

| Transistorized Ignition Control Unit | Right side of the dash, to the right of the glove box. See Figure . |
