Home >> Volkswagen >> 1990 >> Cabriolet Base, Automatic >> Repair and Diagnosis >> Electrical >> Component Locations >> Electrical Component Locator >> Circuit Protection Devices

Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

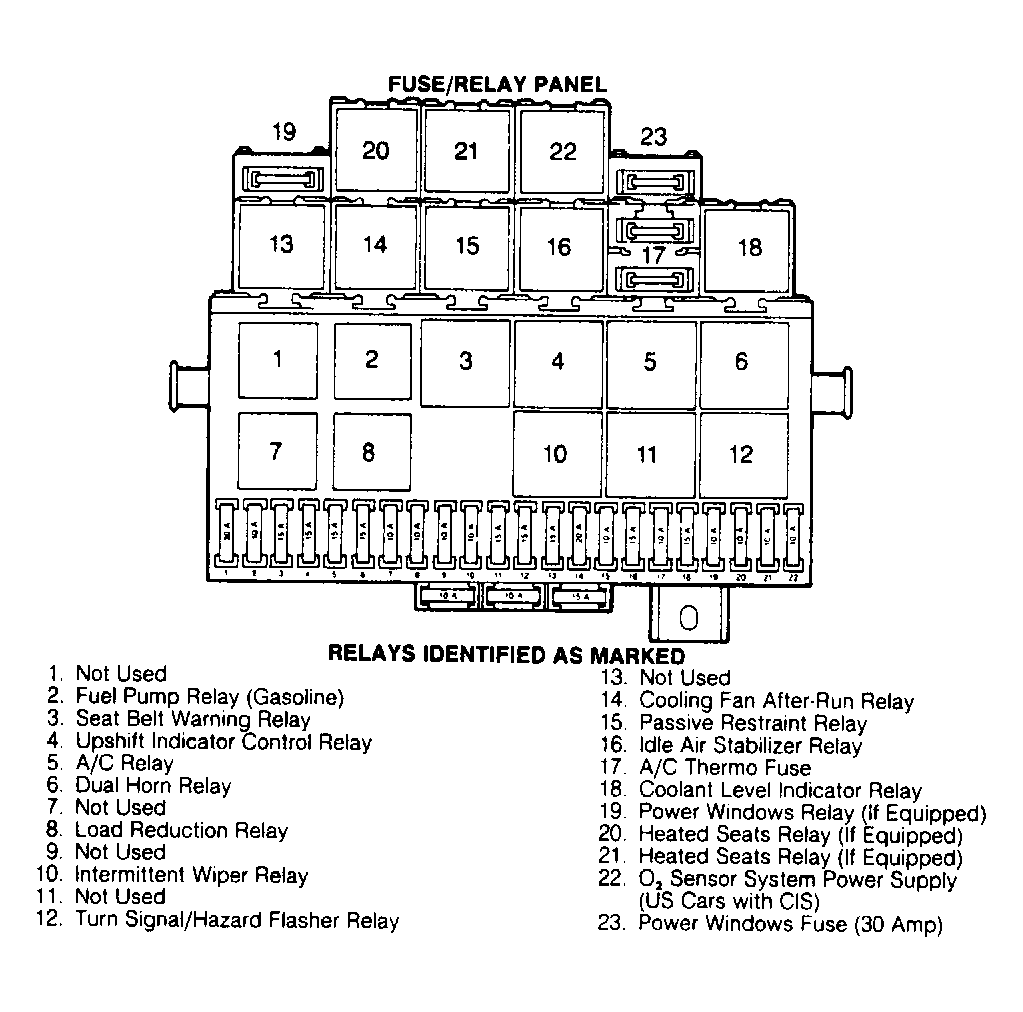

A/C Thermo Fuse In fuse/relay panel. See Figure .
Fuse/Relay Panel Under left side of dash. See Figure .
Power Window Fuse (30A) In fuse/relay panel. See Figure .
