Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Dynamic Oil Pressure Control Unit | On back of instrument cluster. |
| Fuel Injection Control Unit | Behind glove box trim. |
| Hall Effect Control Unit | In tray area, at left rear of engine compartment. |
| Idle Stabilizer Control Unit | In tray area, at left rear of engine compartment. |

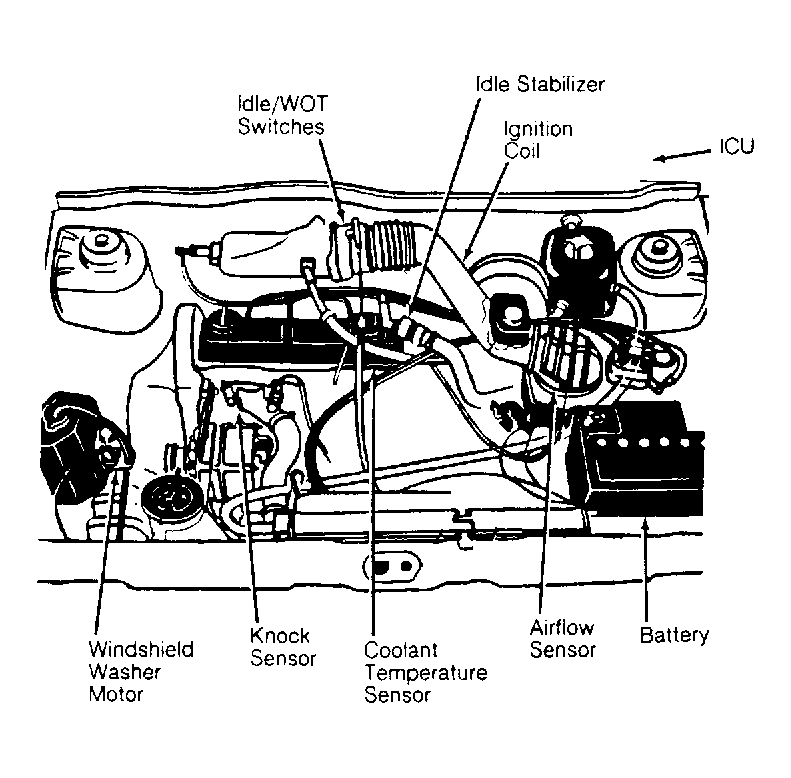

| Ignition Control Unit (ICU) | In tray area, at left rear of engine compartment. See Figure . |
| Oxygen Sensor Control Unit | Under right side of dash, behind glove box. |
