Right Front Window Switch Check

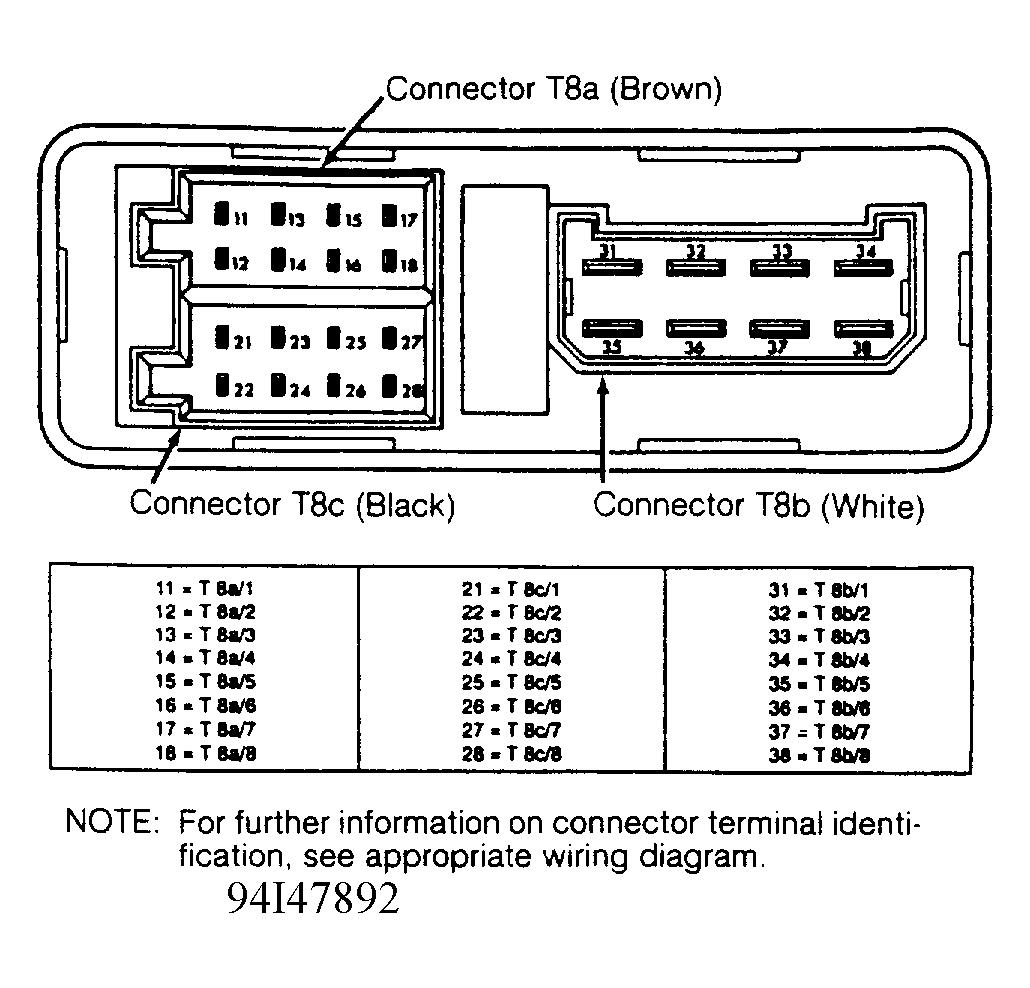

  1. Connect DVOM Black (-) lead to terminal No. 11 (Green/Yellow wire). Connect DVOM Red (+) lead to terminal No. 17 (Gray/Red wire). See Figure . Operate right front switch to lower window. Observe ohmmeter.
  2. If no continuity is indicated, check for open Green/Yellow wire and/or Gray/Red wire(s). Repair wiring as necessary. If wiring is good, replace switch. If continuity is indicated, go to next step.
  3. Connect DVOM Red (+) lead to terminal No. 16 (Gray/Black wire). Operate switch to raise window. If no continuity is indicated, check for open Gray/Black wire. Repair wiring as necessary right front power window switch. If continuity is indicated, go to RIGHT FRONT WINDOW MOTOR CHECK.
