Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Anti-Lock Brake (ABS) Control Unit | Near left side of instrument panel, and kick panel, near door pillar. |
| Anti-Theft Control Unit | Behind right side of dash. |
| A/T Control Unit | Behind right kick panel. |
| Cruise Control Unit | On right side of instrument cluster, behind instrument panel. |

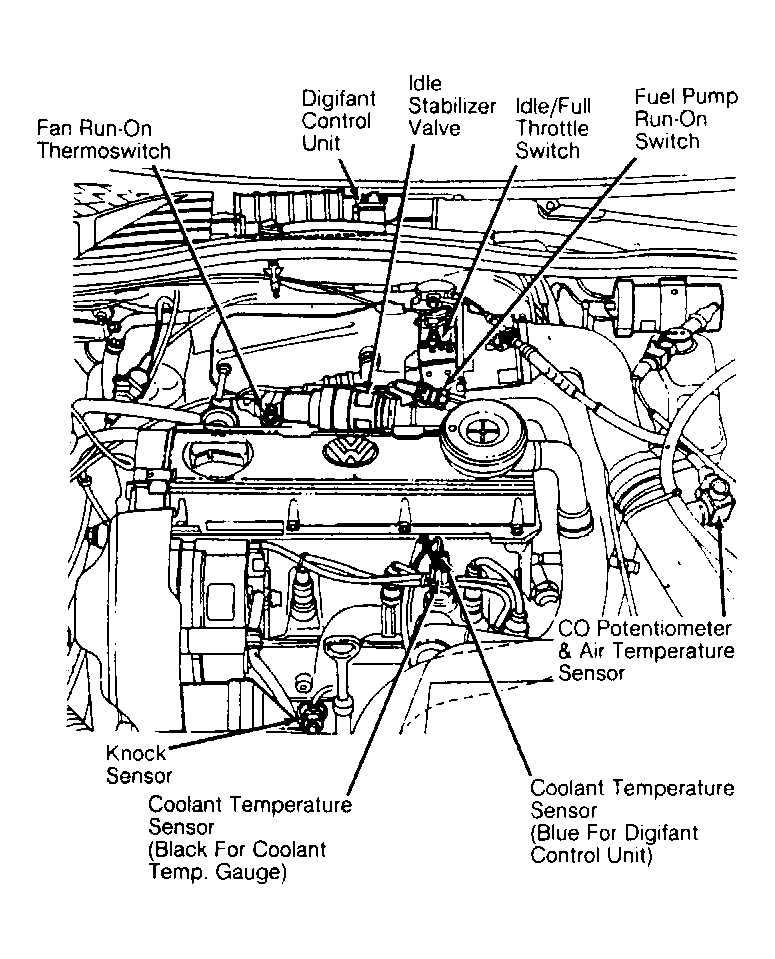

| Dignifant Control Unit | Below fresh air intake on firewall. See Figure . |

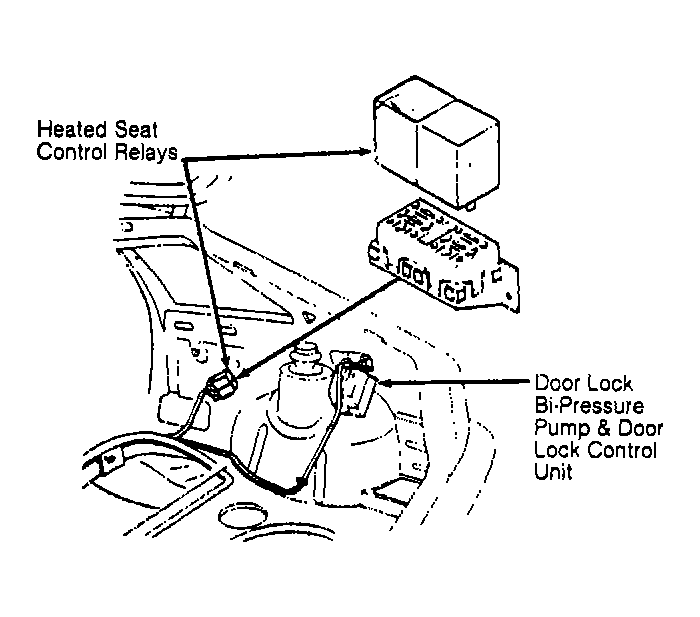

| Door Lock Control Unit | Mounted on door lock bi-pressure pump, behind trim panel on right rear corner of luggage compartment. See Figure . |

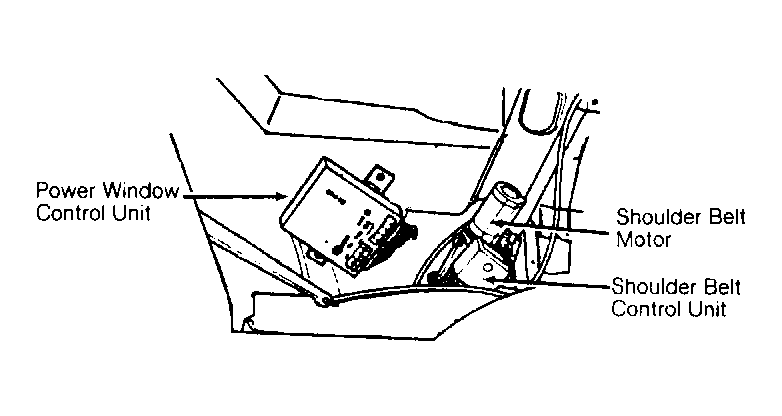

| Power Window Control Unit | Behind trim panel on rear pillar of left door. See Figure . |

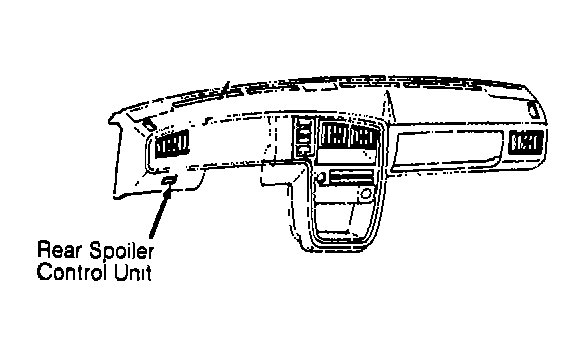

| Rear Spoiler Control Unit | Behind left of steering column, near spoiler switch. See Figure . |
| Shoulder Belt Control Unit | Behind trim panel on left door rear pillar, on shoulder belt motor. See Figure . |
