Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Behind left kick panel. |
| Auto. Shoulder Belt Control Unit | On each shoulder belt drive motor, behind left & right door "B" pillar. See Figure . |
| Central Locking Control Unit | On right side of luggage compartment. See Figure . |
| Cooling Fan Control Module | On left side of engine compartment. |
| Cruise Control Unit | Behind center console. |
| Engine Control Module (ECM) | On center of plenum, in engine compartment. See Figure . |
| Power Window Control Unit | Behind trim panel on rear pillar of left door. See Figure . |

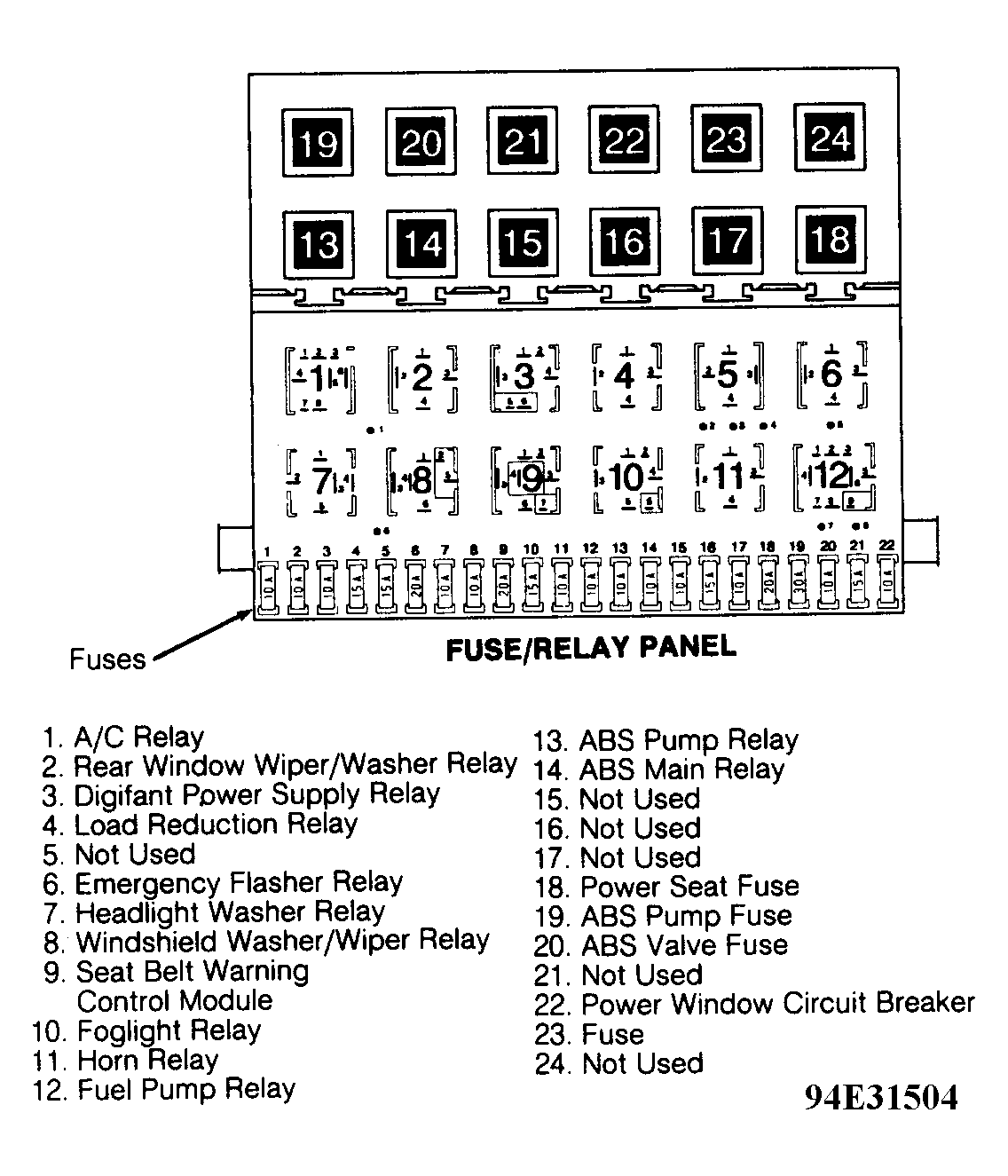

| Seat Belt Warning Control Unit | In fuse/relay panel, behind left side of dash. See Figure . |
