Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module (W/ EDL) | Behind left kick panel. |

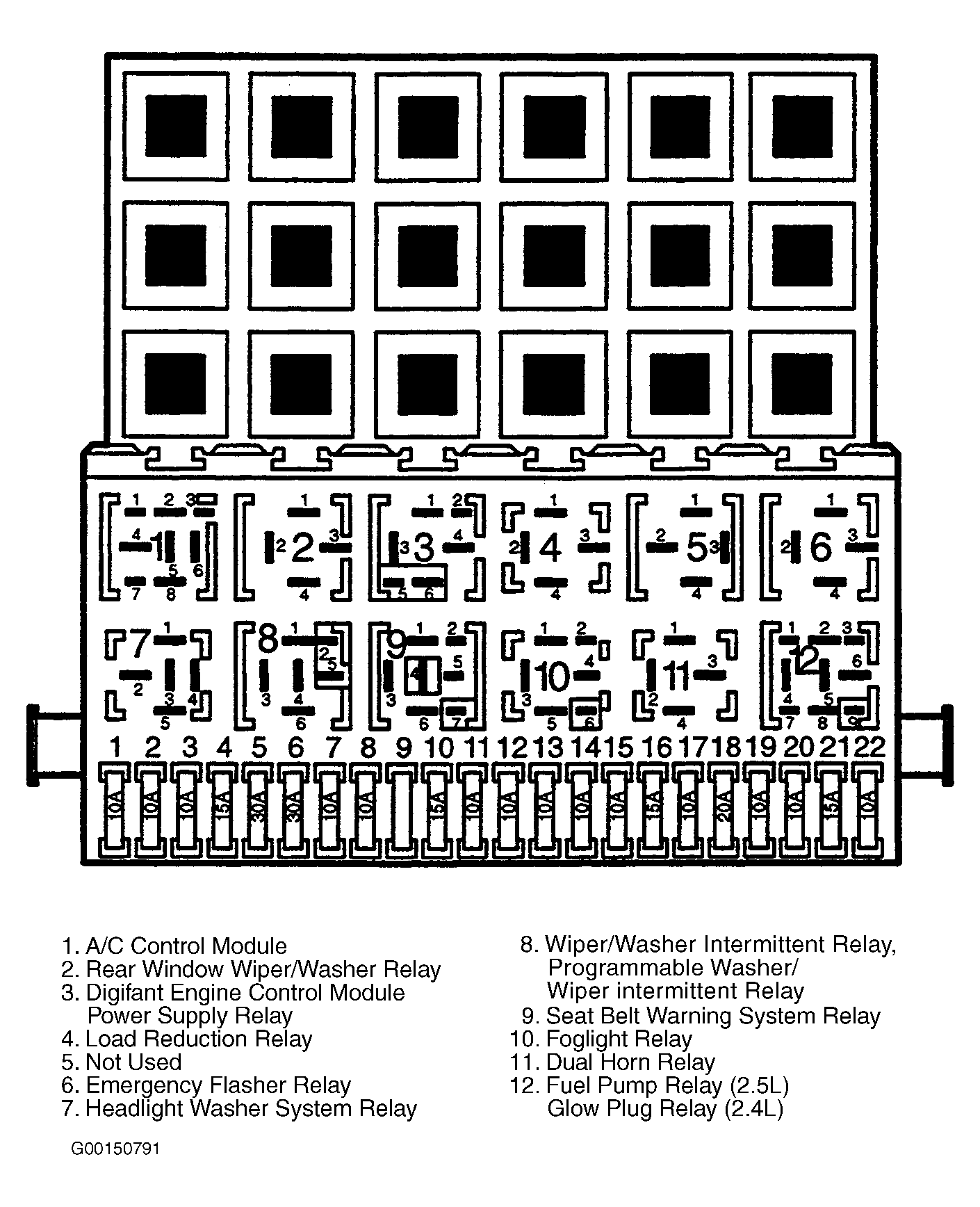

| A/C Control Module | On fuse/relay panel. See Figure . |
| Air Bag Control Module | Under center of dash. |
| Auxiliary Heater Control Module | Near base of driver's seat. |
| Cruise Control Module | Behind right side of dash, behind glove box. |
| Digifant Control Module | Behind left headlight. |
| Idle Air Control Module | Above fuse/relay panel. |
| Transmission Control Module | Behind right kick panel. |
