Additional Service Information

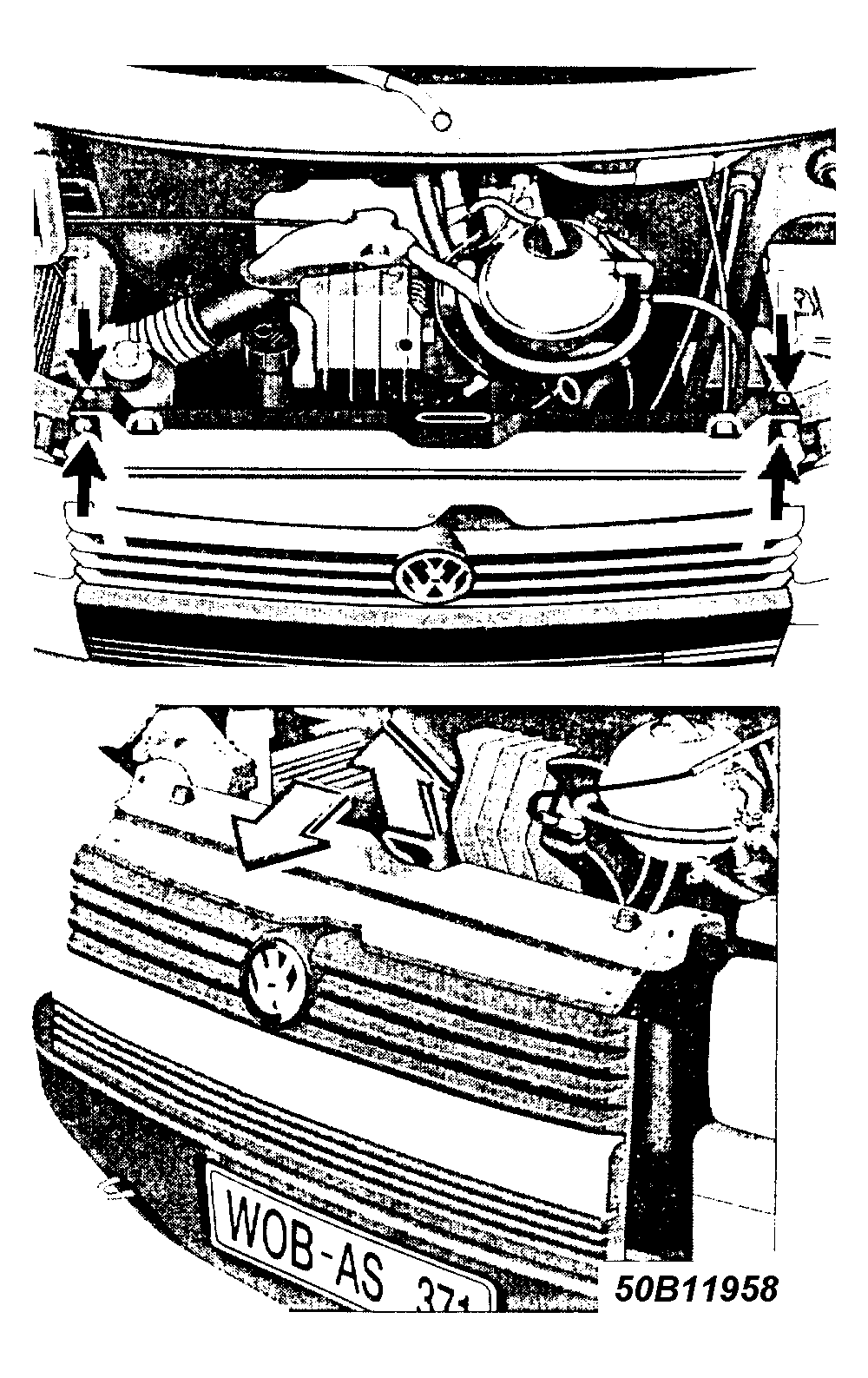

Fig 1: Tilting Radiator for Service

Courtesy of VOLKSWAGEN UNITED STATES, INC.

With gear selector in Park, depress brake pedal.
Move gear selector to desired position.
If gear selector DOES NOT MOVE, check fuse #12.
TO MANUALLY RELEASE gear selector, push finger between brushes at base of shifter and push catch to the left. See Fig 1 .
Select a gear.

NOTE: It may not be possible to move the radiator on some 1995 models (models with one piece lower grille sections).

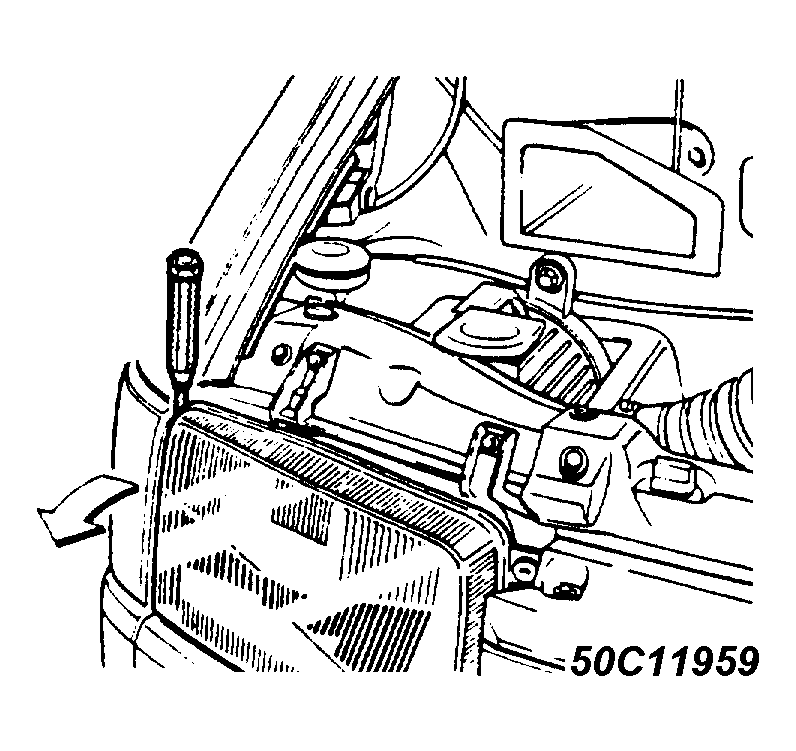

Fig 2: Replacing Turn Signal Lamps (Typical)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
