Model Identification

On left-hand drive vehicles, vehicle data plate is located on A-pillar next to central electric cover. See Fig 1 .

Wheel alignment specifications for this vehicle will depend on the group designation of the vehicle. See Fig 2 . An alignment group from 1 through 4 is indicated on this plate.

CAUTION: At the start of production, a number of vehicles were delivered without an identification of the alignment group number. These vehicles are in Group 1.

Fig 1: Locating Vehicle Data Plate

Courtesy of VOLKSWAGEN UNITED STATES, INC.

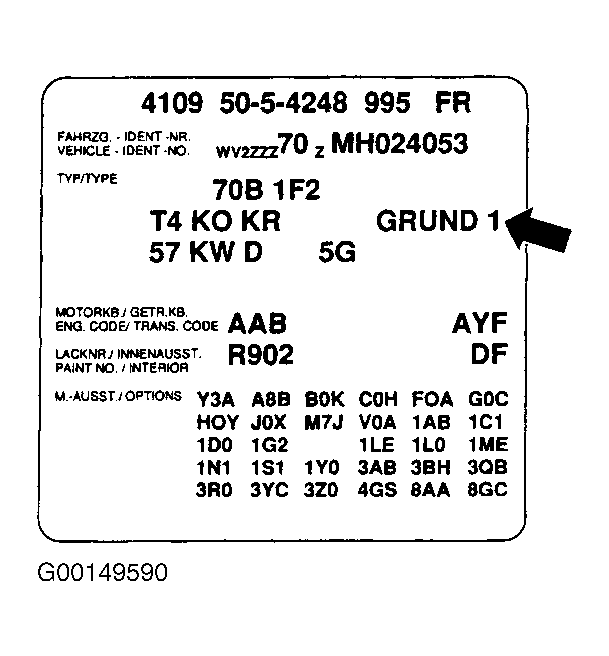

Fig 2: Identifying Vehicle Group Number Position (Groups 1-4)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: The word "GRUND" on the vehicle data plate is given as an example. It is possible that a different word, for example "KOM." be printed at this point.
