Calculating Thrust Angle

NOTE: VW refers to thrust angle as direction of travel.

For calculation of thrust angle, see Fig 1 .

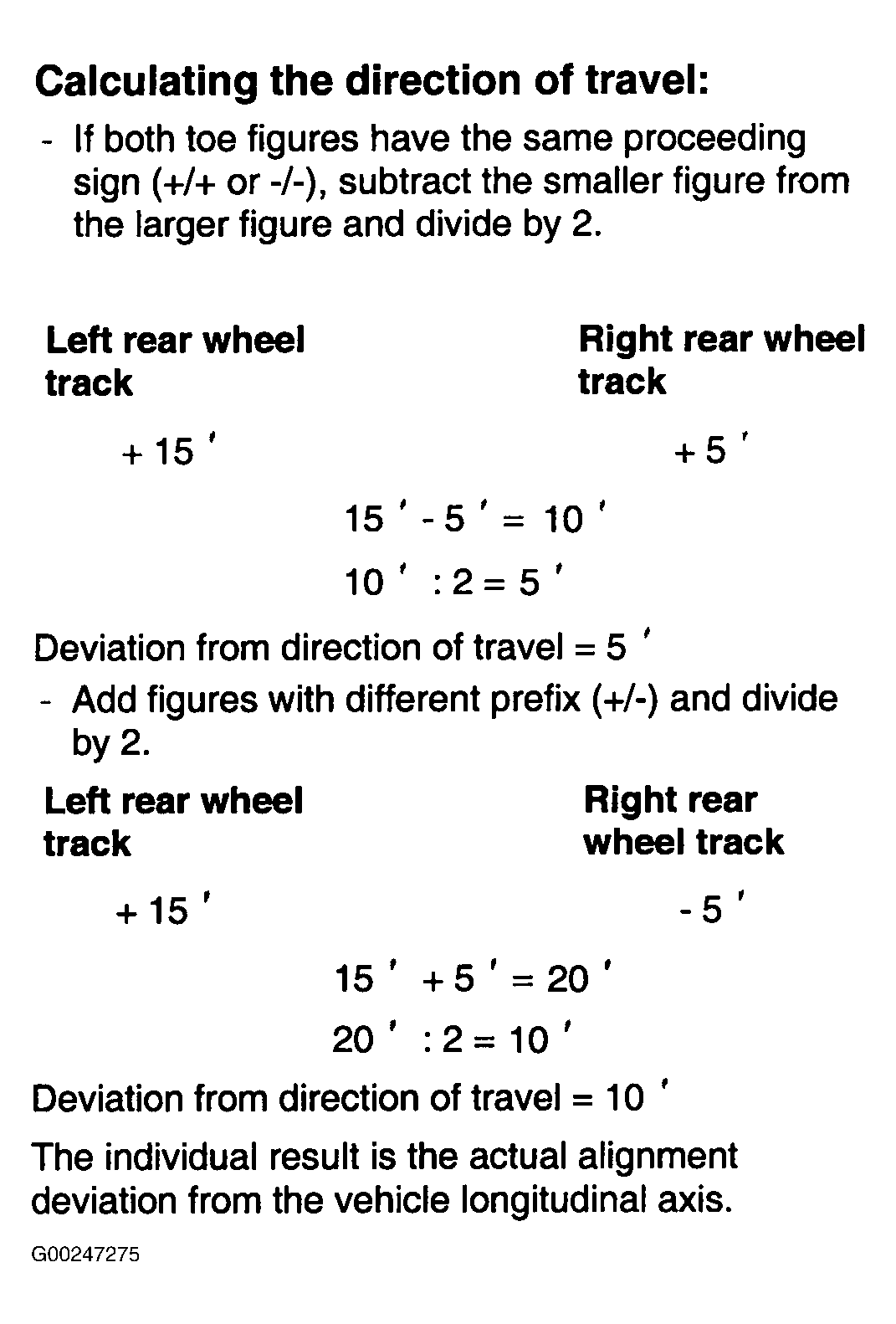

Fig 1: Calculating Thrust Angle (Direction Of Travel)

G00247275

Courtesy of VOLKSWAGEN UNITED STATES, INC.
