Home
>>
Volkswagen
>>
1996
>>
Passat GLS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - System/Component Tests - Gasoline
>>
Component Locations
Component Locations

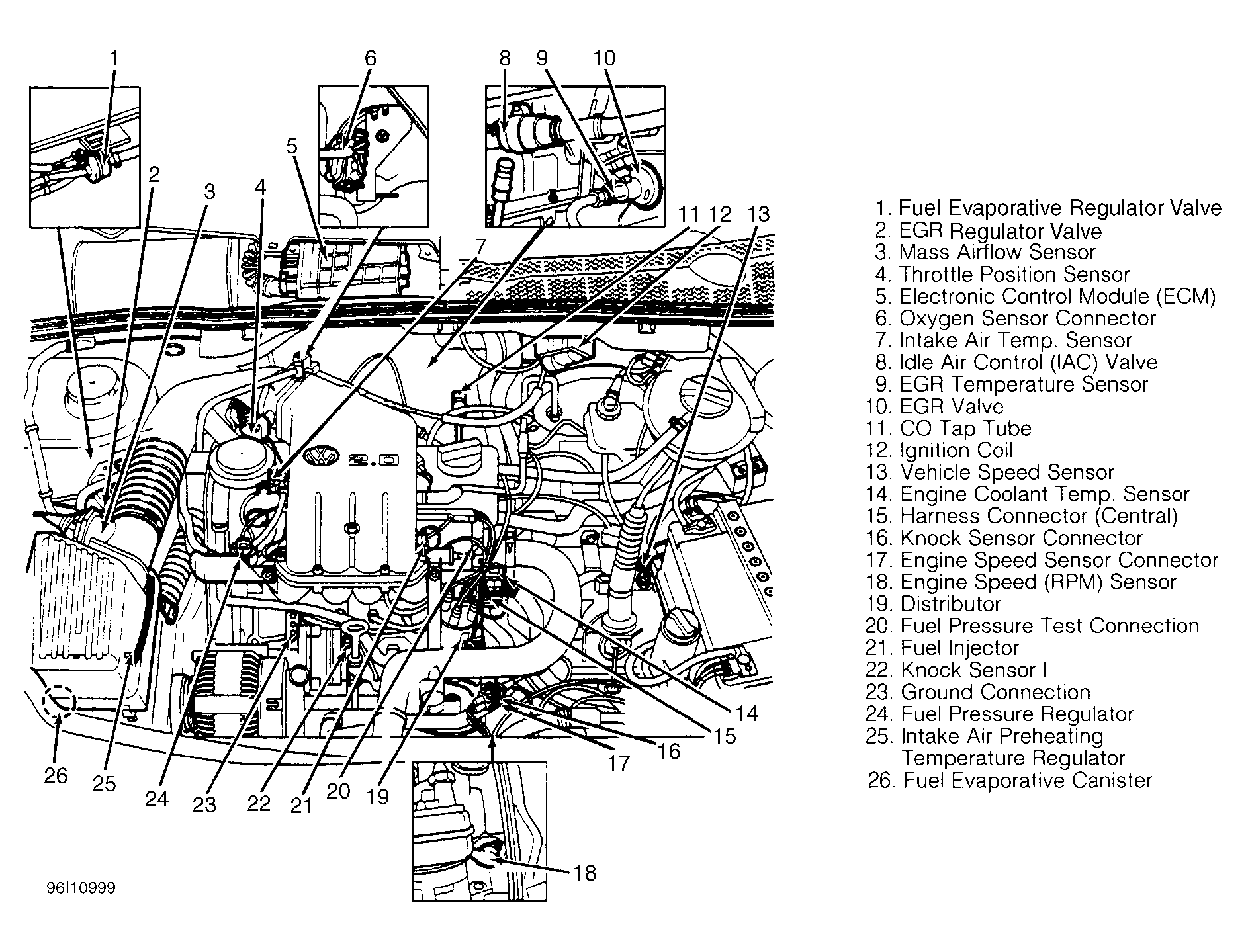

Fig 1: Component Locations (2.0L)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

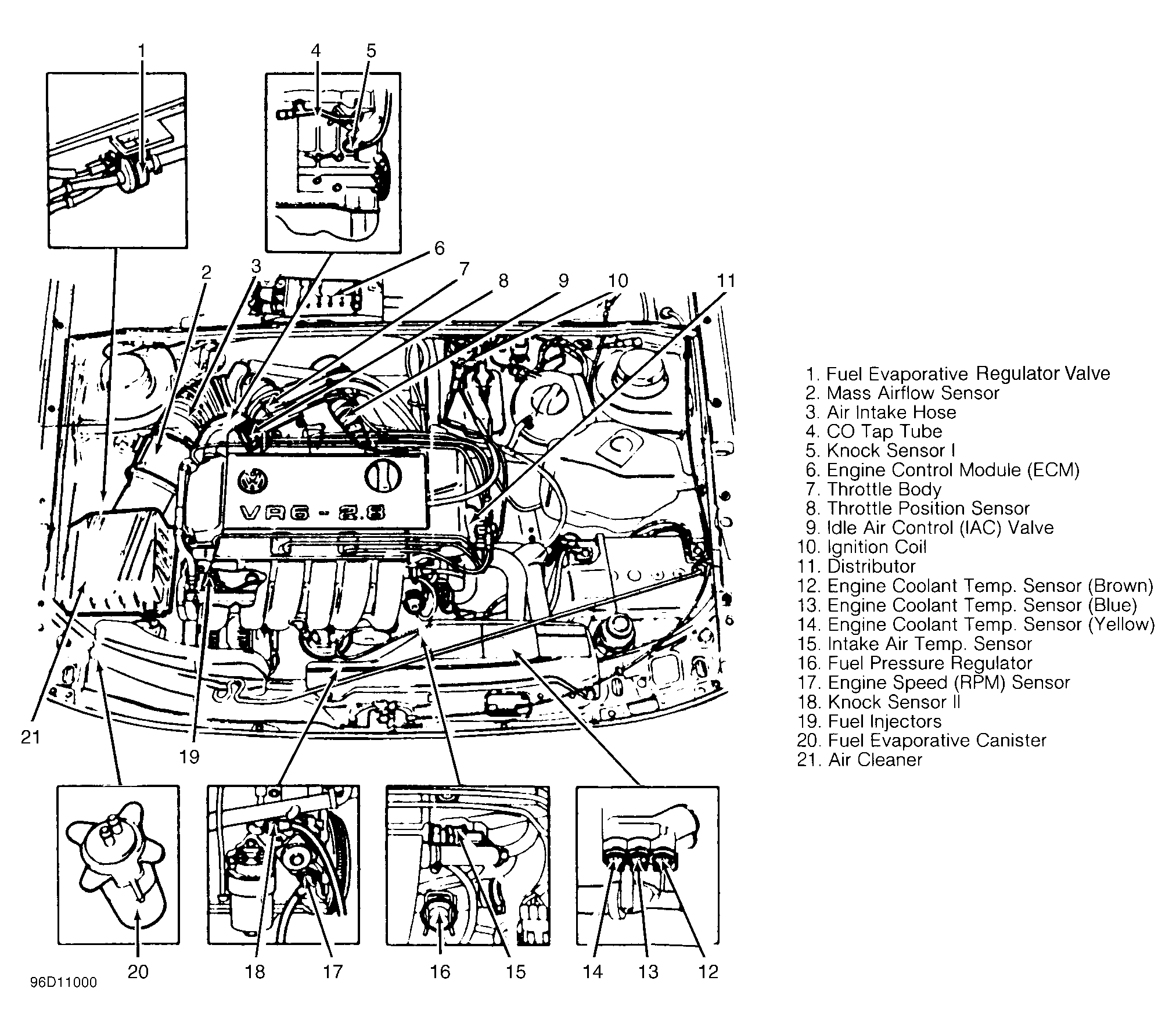

Fig 2: Component Locations (2.8L)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
