Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | Left side of engine compartment, under ABS hydraulic unit. |
| ABS Hydraulic Unit | Left rear corner of engine compartment. |
| Air Bag Control Module | Under center of dash, in front of console. |
| Alarm System Control Module | Behind left side of dash, above fuse/relay panel. |
| Central Locking System Pump & Control Module (Cabrio, Golf, GTI) | On right side of luggage compartment. |
| Central Locking System Pump & Control Module (Jetta) | On left side of luggage compartment. |
| Coolant Fan Control Module | Left side of engine compartment. |
| Cruise Control, Control Module | Behind left side of dash. |
| Driver's Heated Seat Control Module | Under driver's seat. |

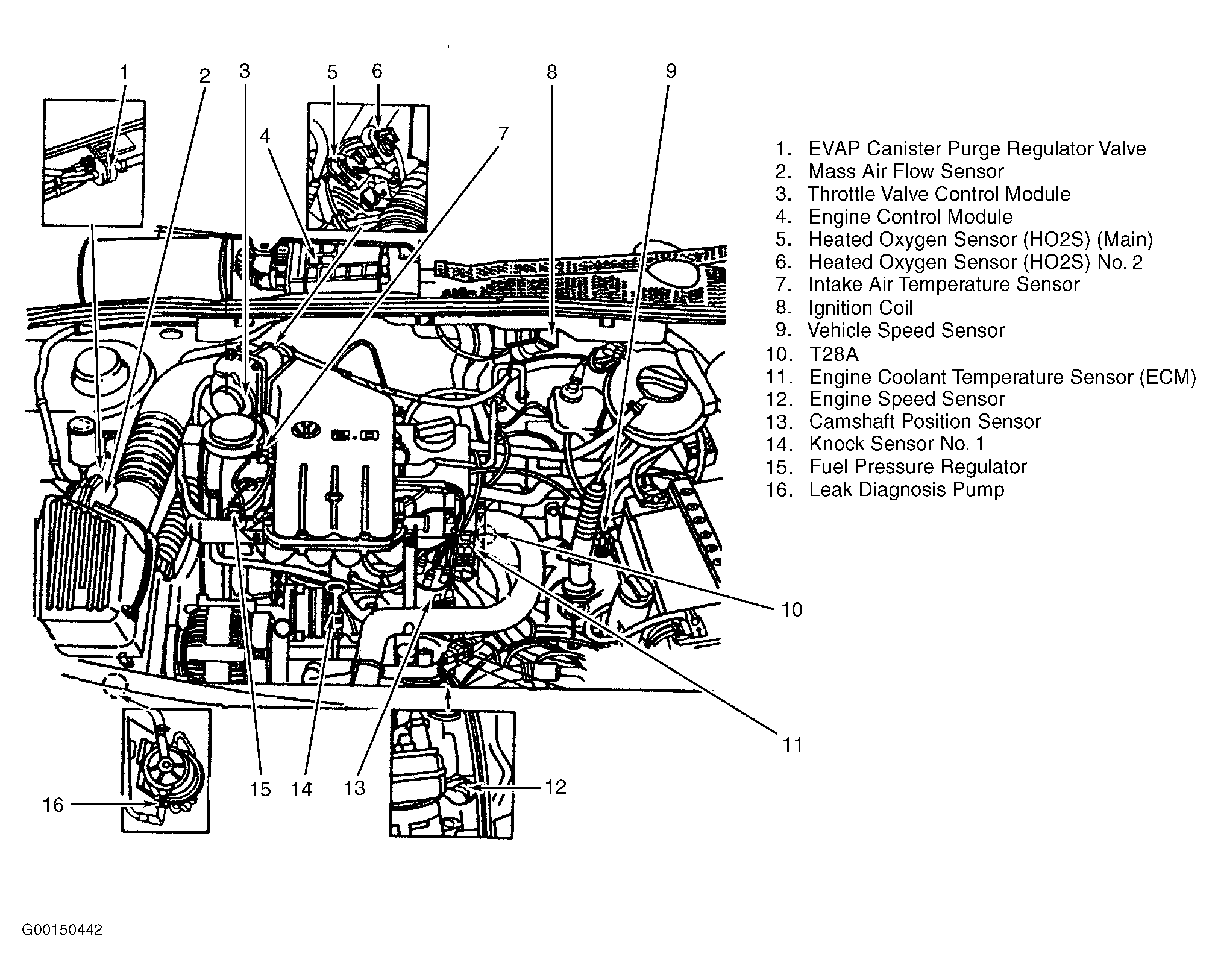

| Engine Control Module (2.0L) | In engine compartment, on center of plenum. See Figure . |

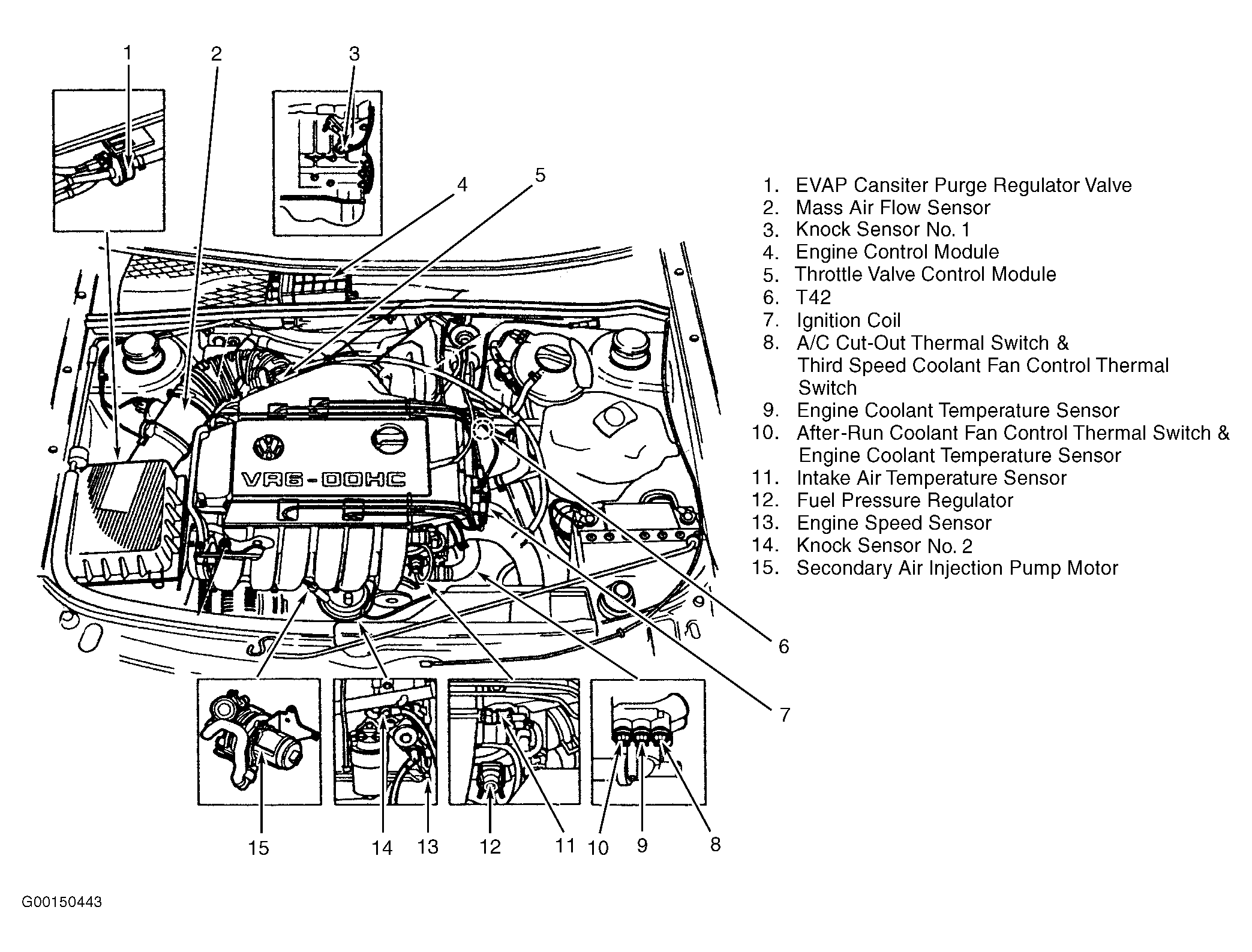

| Engine Control Module (2.8L) | In engine compartment, on center of plenum. See Figure . |

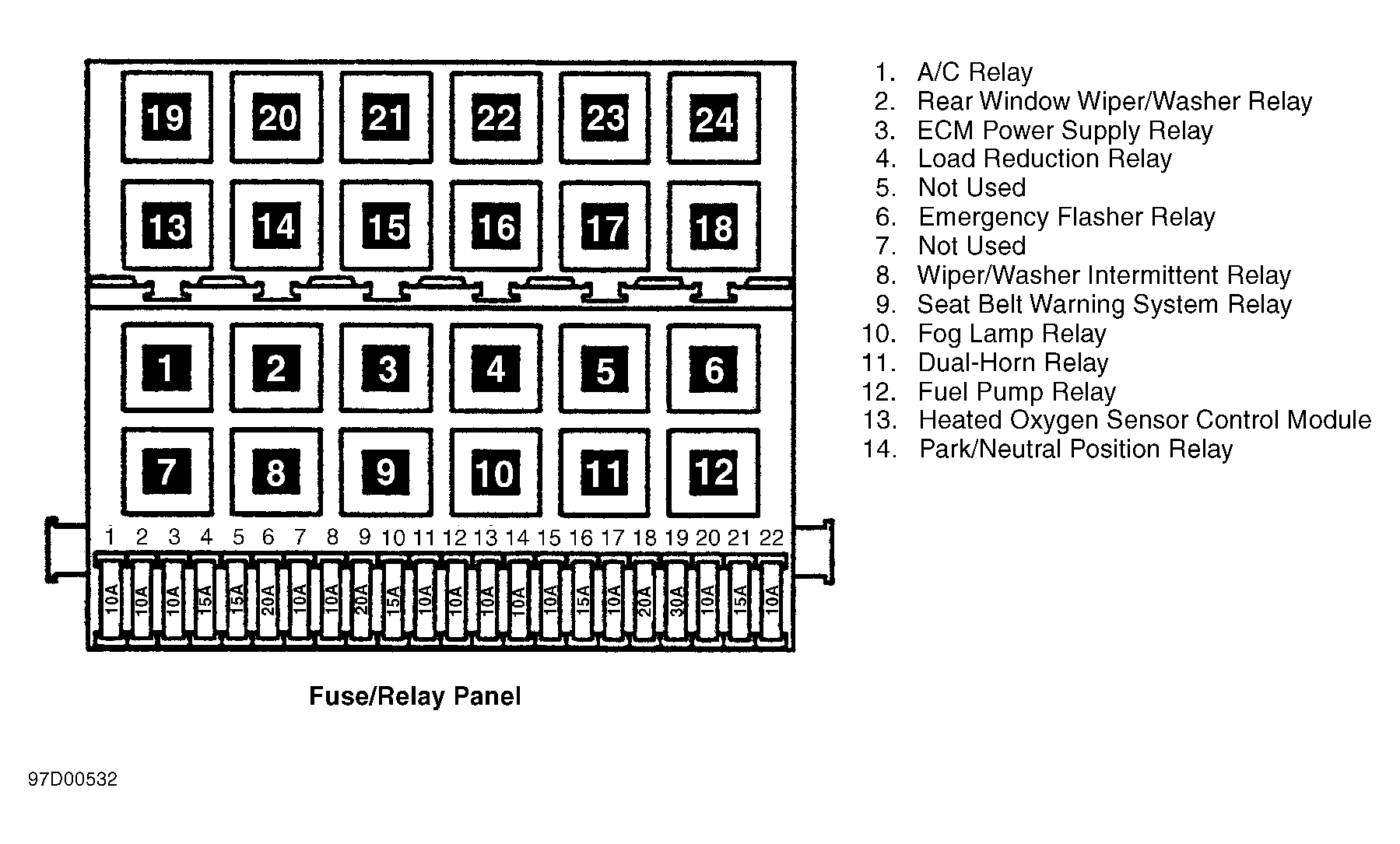

| Heated Oxygen Sensor Control Module | On fuse/relay panel. See Figure . |
| Passenger's Heated Seat Control Module | Under passenger's seat. |
| Power Sun Roof Control Module | Above headliner, near sunroof controls. |
| Throttle Valve Control Module (2.0L) | At throttle body. See Figure . |
| Throttle Valve Control Module (2.8L) | Right rear side of engine compartment. See Figure . |
| Transmission Control Module | Below rear seat. |
