Vacuum Diagrams: Introduction

This article contains underhood views or schematics of vacuum hose routing. Vacuum diagrams are an excellent tool for identifying improperly routed vacuum hoses. Improperly routed vacuum hoses cause driveability and computer-indicated malfunctions.

NOTE: Always refer to Emission Control label in engine compartment before attempting service. If manual and label differ, always use emission label vacuum hose routing.

NOTE: Manufacturer is not specific about production end date for EuroVan 2.5L engine.

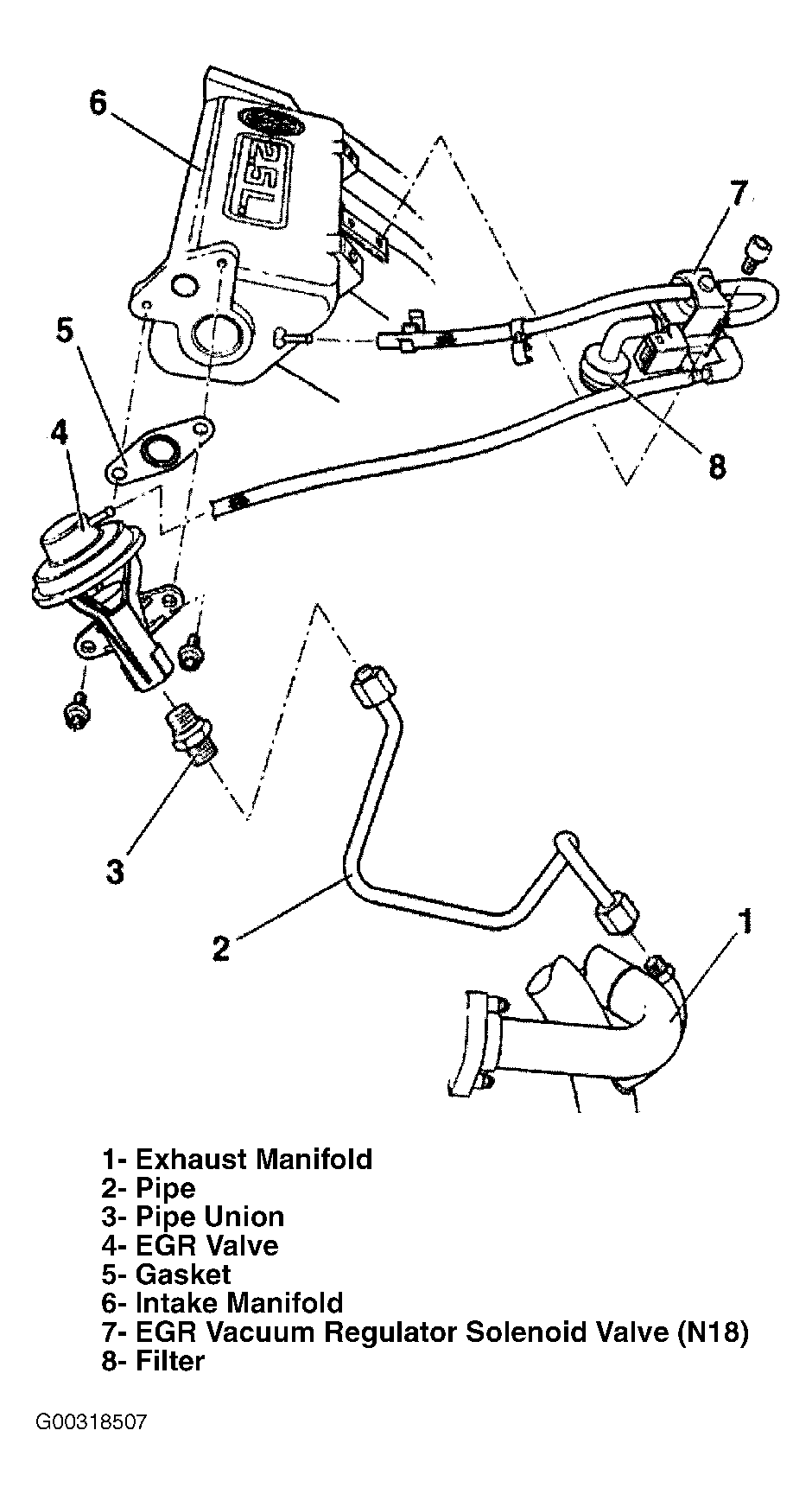

Fig 1: Vacuum Diagram EGR System (2.5L 5-Cyl.)

G00318507

Courtesy of VOLKSWAGEN UNITED STATES, INC.

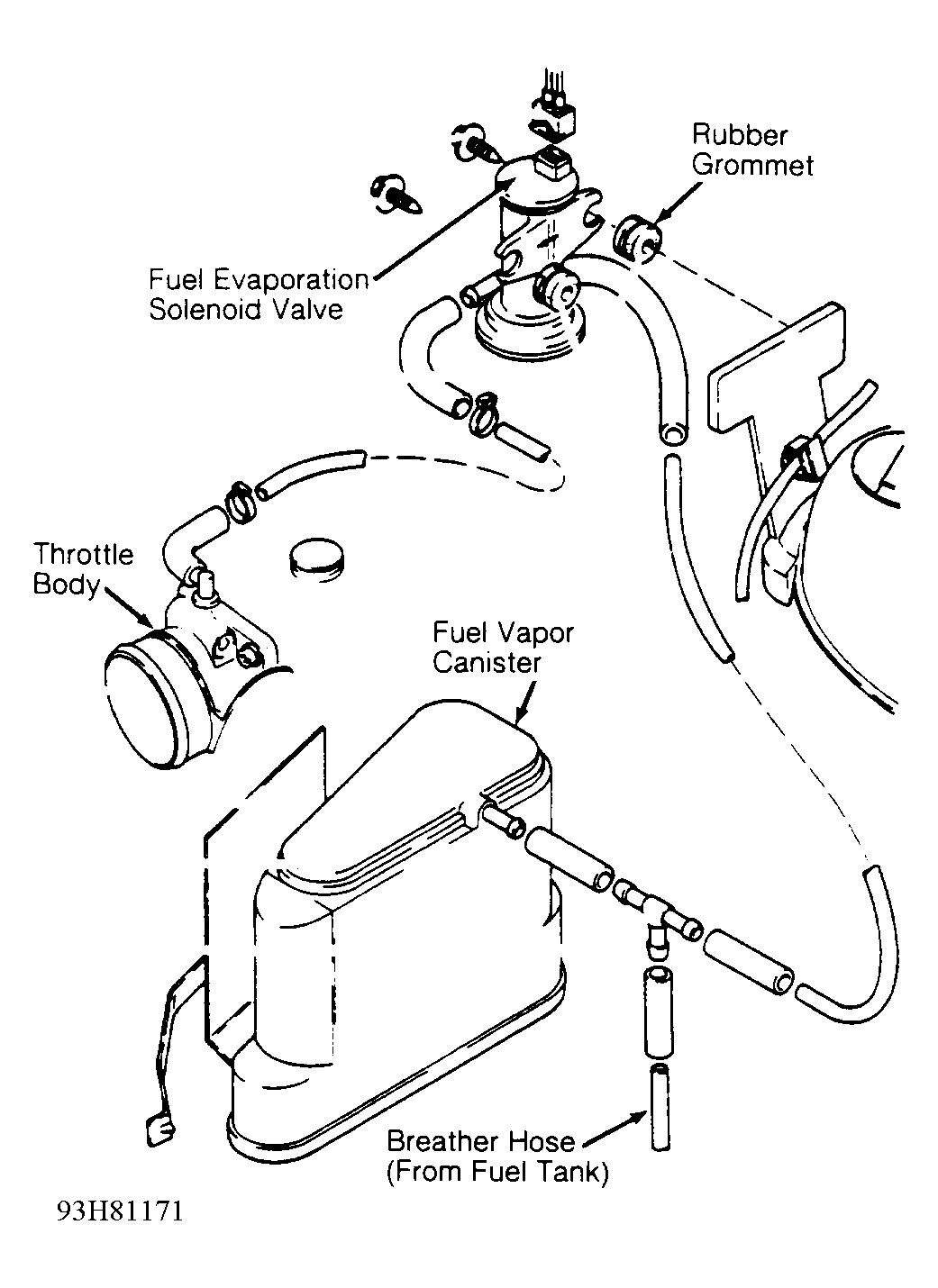

Fig 2: Vacuum Diagram EVAP System (2.5L 5-Cyl.)

G93H81171

Courtesy of VOLKSWAGEN UNITED STATES, INC.

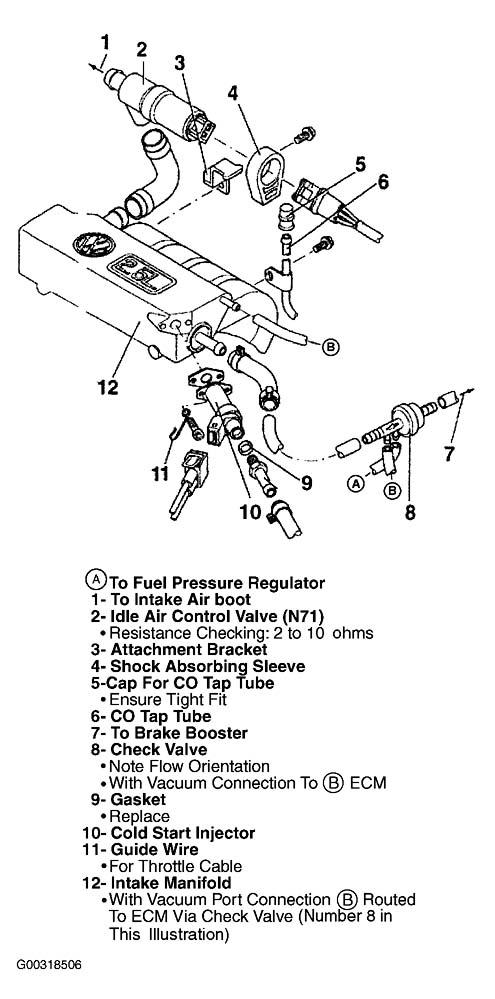

Fig 3: Vacuum Diagram Intake Manifold (2.5L 5-Cyl.)

G00318506

Courtesy of VOLKSWAGEN UNITED STATES, INC.

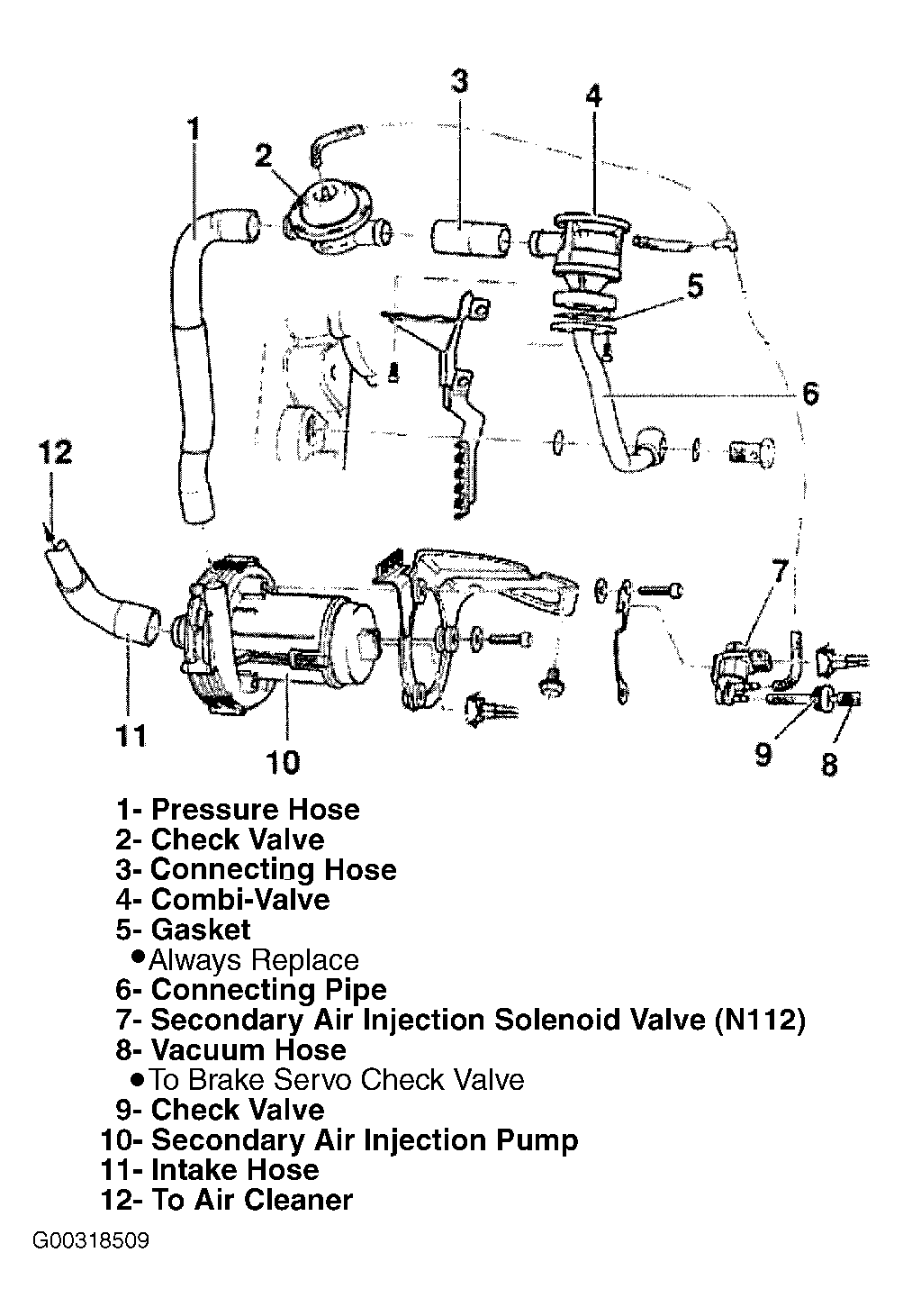

Fig 4: Vacuum Diagram Secondary Air Injection System (2.5L 5-Cyl.)

G00318509

Courtesy of VOLKSWAGEN UNITED STATES, INC.

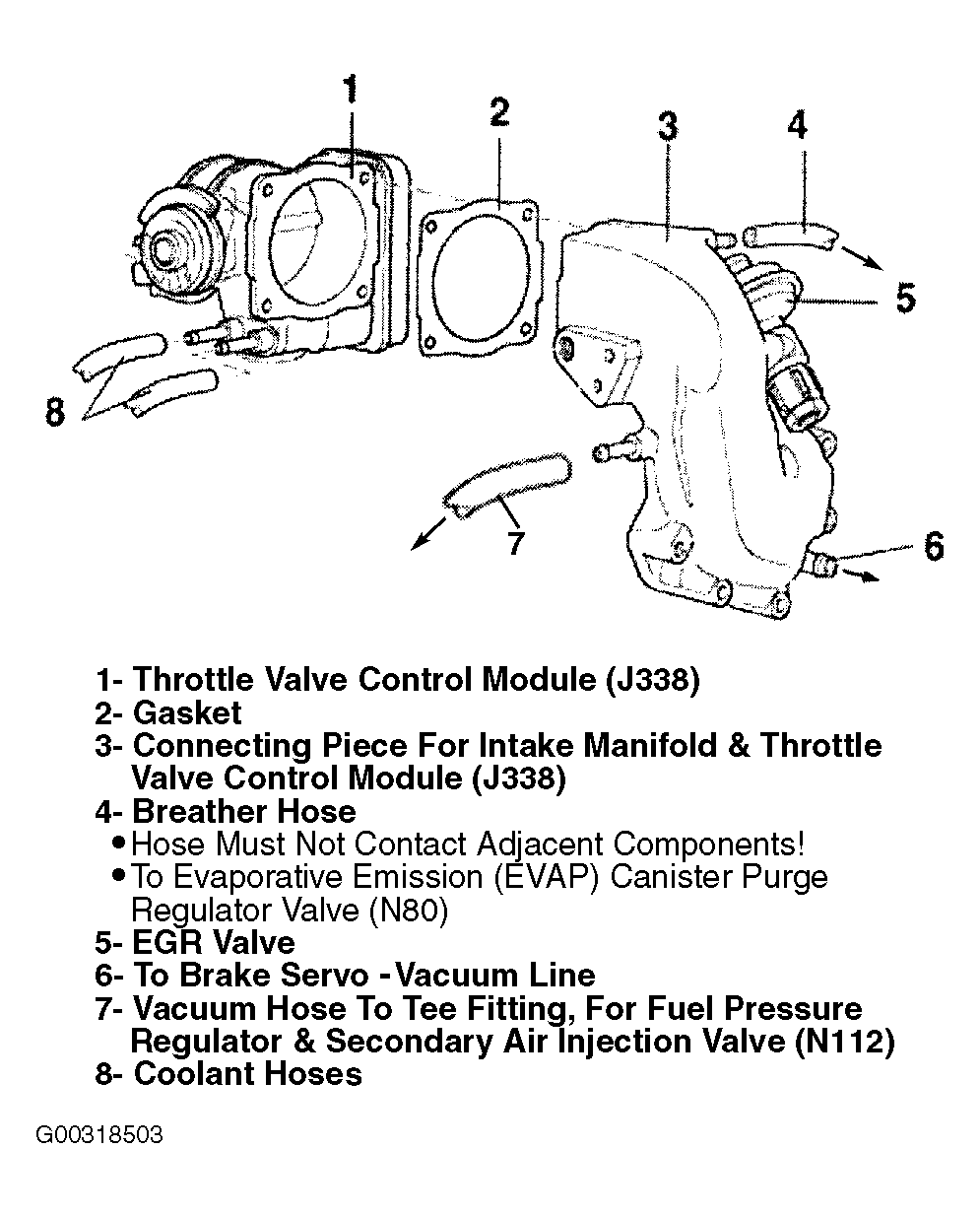

Fig 5: Vacuum Diagram Connecting Piece For Intake Manifold (2.8L VR6)

G00318503

Courtesy of VOLKSWAGEN UNITED STATES, INC.

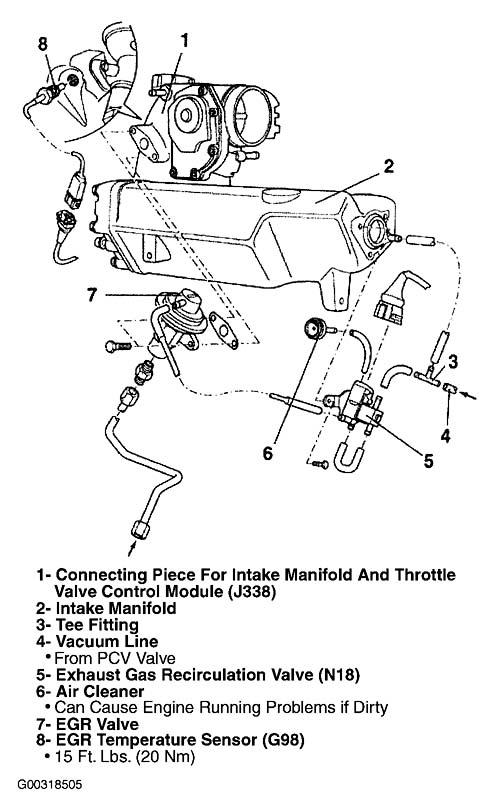

Fig 6: Vacuum Diagram EGR System (2.8L VR6)

G00318505

Courtesy of VOLKSWAGEN UNITED STATES, INC.

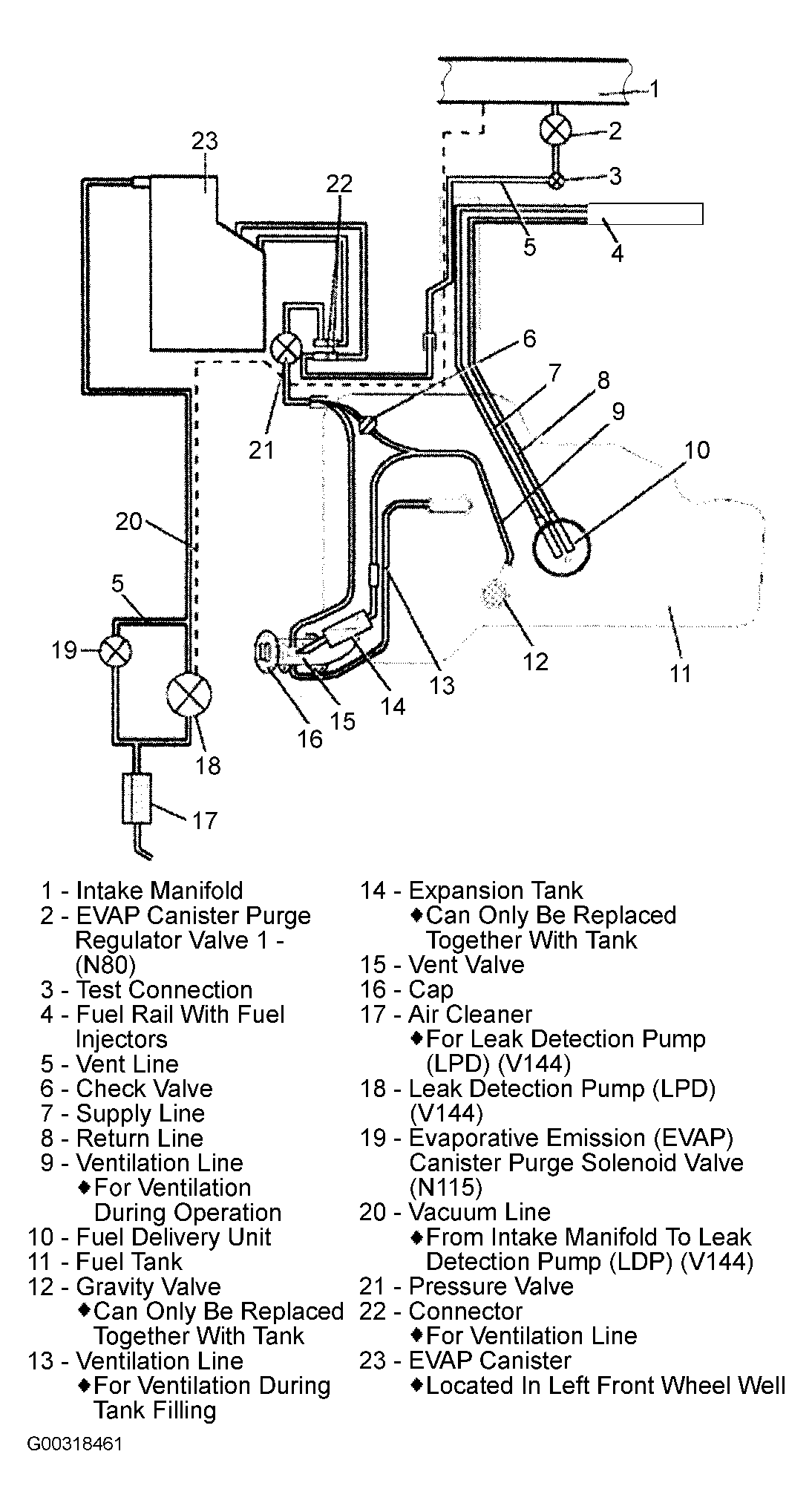

Fig 7: Vacuum Diagram EVAP System (2.8L VR6)

G00318461

Courtesy of VOLKSWAGEN UNITED STATES, INC.

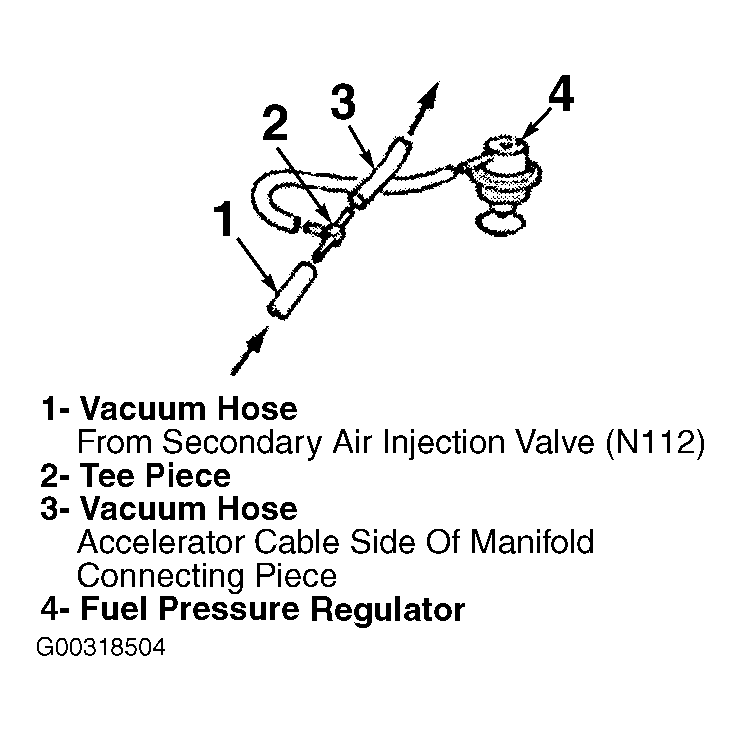

Fig 8: Vacuum Diagram Fuel Pressure Regulator & Secondary Air Injection Valve (N112) (2.8L VR6)

G00318504

Courtesy of VOLKSWAGEN UNITED STATES, INC.

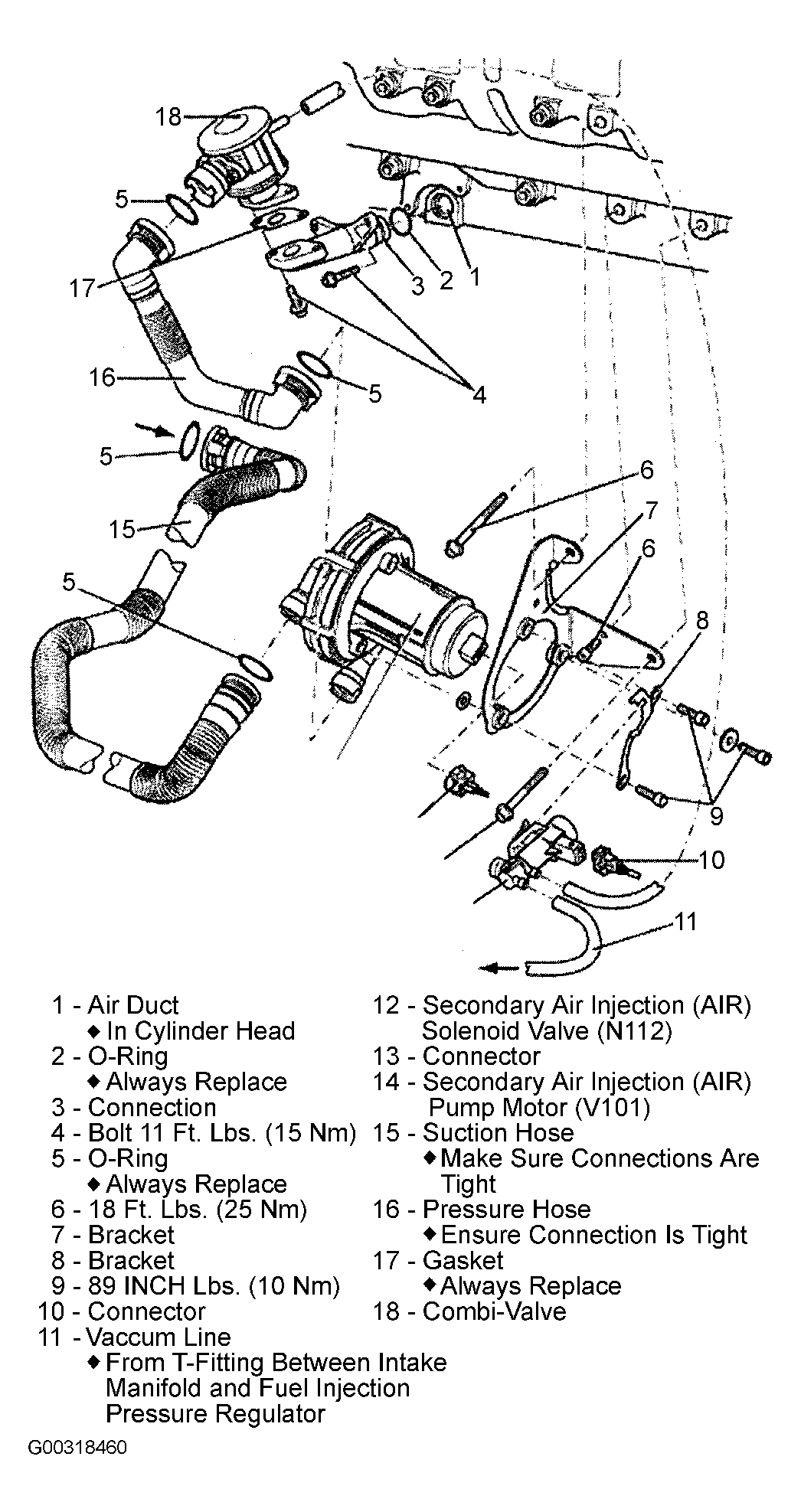

Fig 9: Vacuum Diagram Secondary Air Injection System (2.8L VR6)

G00318460

Courtesy of VOLKSWAGEN UNITED STATES, INC.
