Torque Specifications

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Camber Adjustment Bolt (a) ⁽¹⁾

44 (60)

Camber Adjustment Nut (b) ⁽¹⁾

81 (110)

Caster Adjustment Nut

118 (160)

Rear Toe Adjustment Nut

118 (160)

Wheel Bolts ⁽²⁾

125 (170)

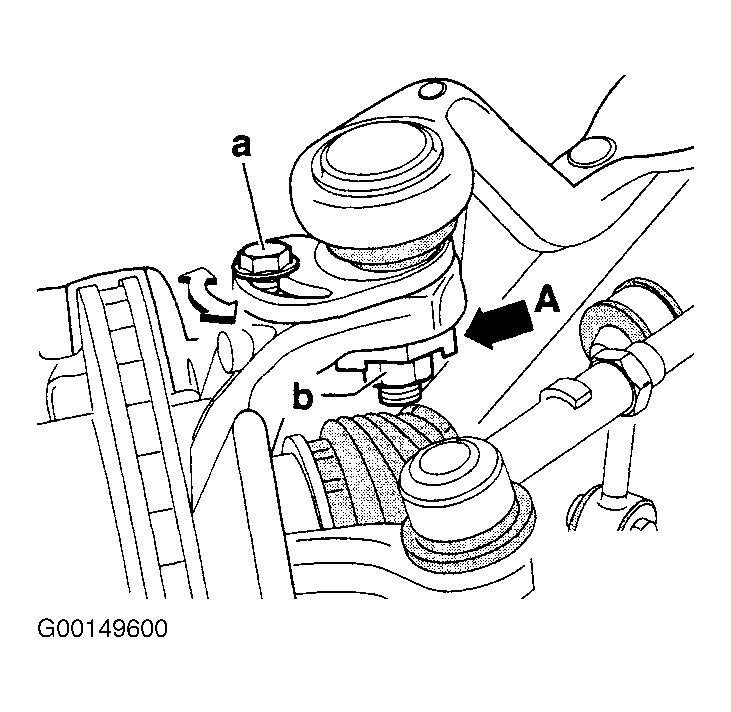

⁽¹⁾	See Figure to identify camber adjustment bolt and nut.

⁽²⁾	Do NOT interchange 1997-00 wheel bolts with 2001-03 wheel bolts. They are different designs.
