Locking Elements

Do not overstretch circlips; replace if necessary.
Circlips must be properly seated in the grooves.
Replace spring pins.
Installation position: Slot longitudinal to line of force. See Fig 1 .

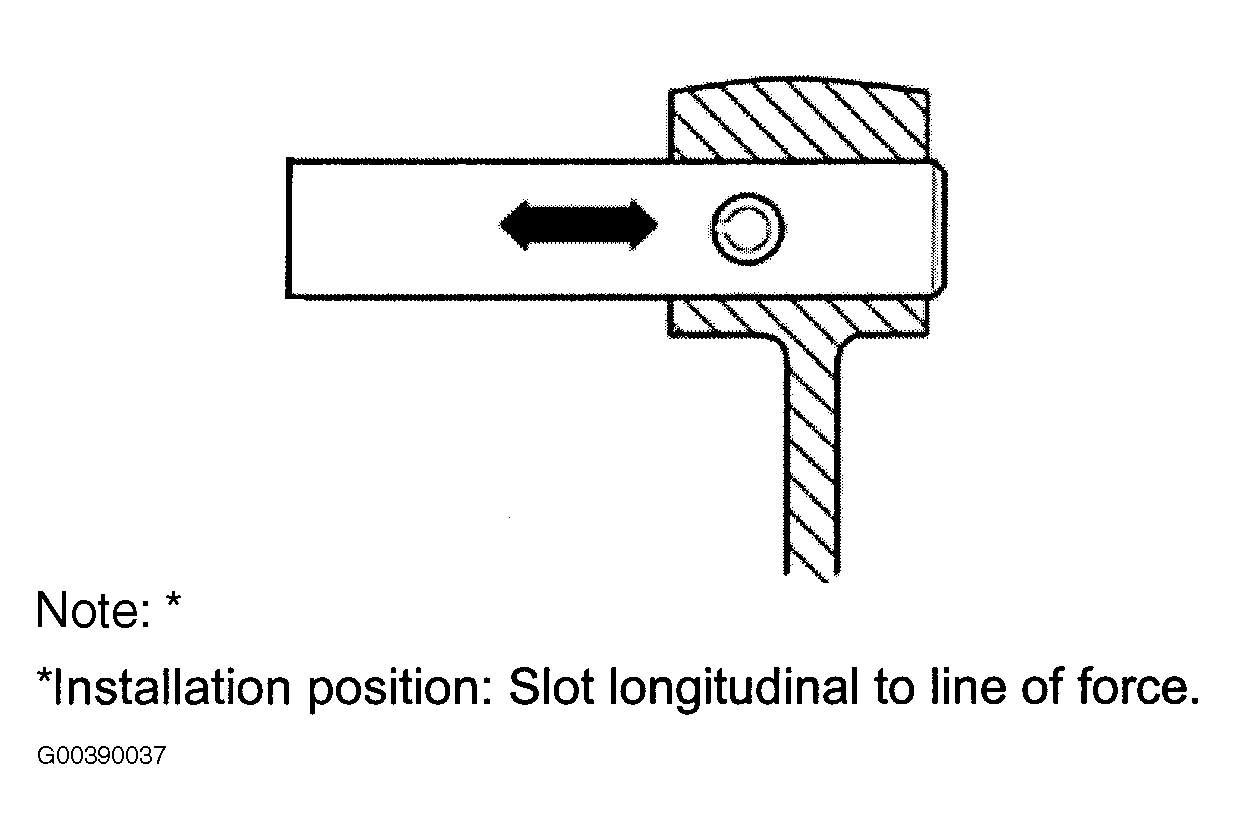

Fig 1: Installation Position Of Spring Pins
Courtesy of VOLKSWAGEN UNITED STATES, INC.
