Vacuum Diagrams: Introduction: CABRIO

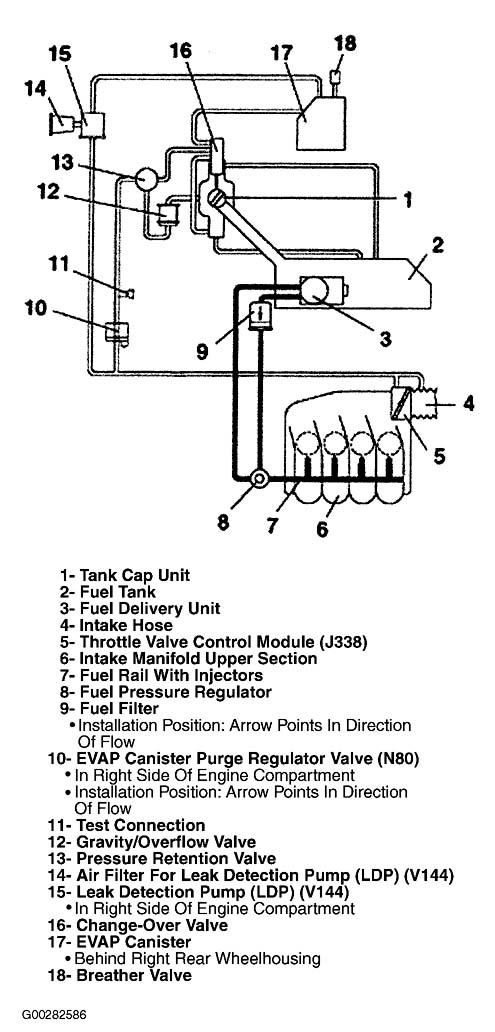

Fig 1: Vacuum Diagram EVAP System

Courtesy of VOLKSWAGEN UNITED STATES, INC.

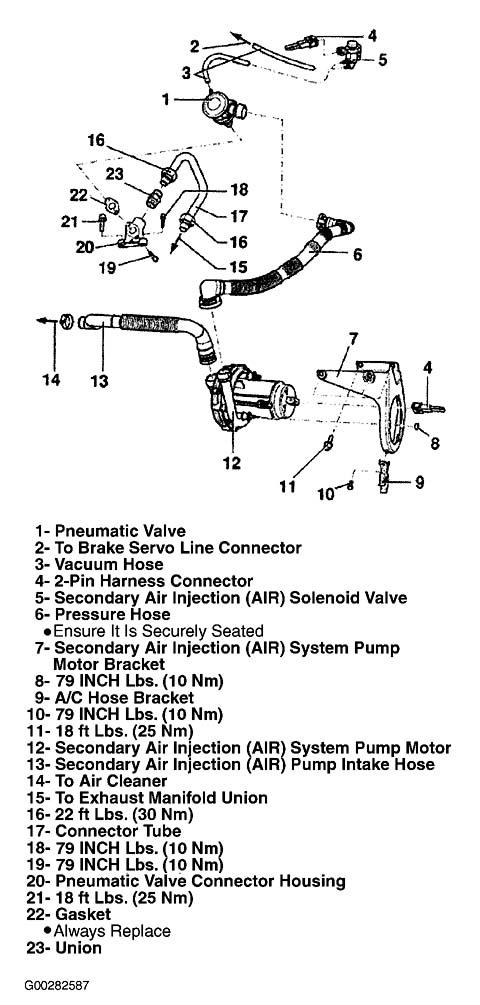

Fig 2: Vacuum Diagram Secondary Air Injection System

Courtesy of VOLKSWAGEN UNITED STATES, INC.
