Vacuum Diagrams: Introduction: Phaeton

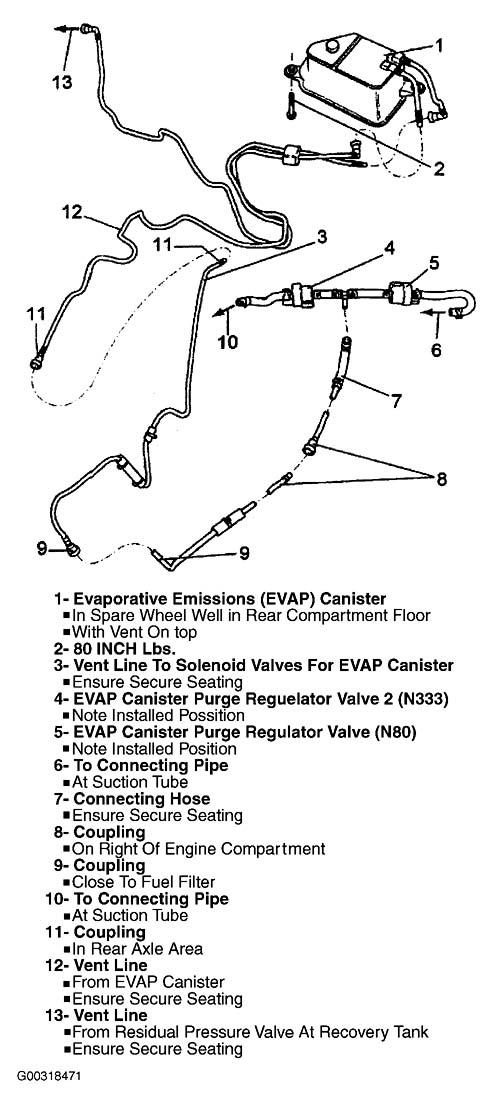

Fig 1: Vacuum Diagram EVAP System (4.2L V8 & 6.0L W12, Engine Code BAN)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

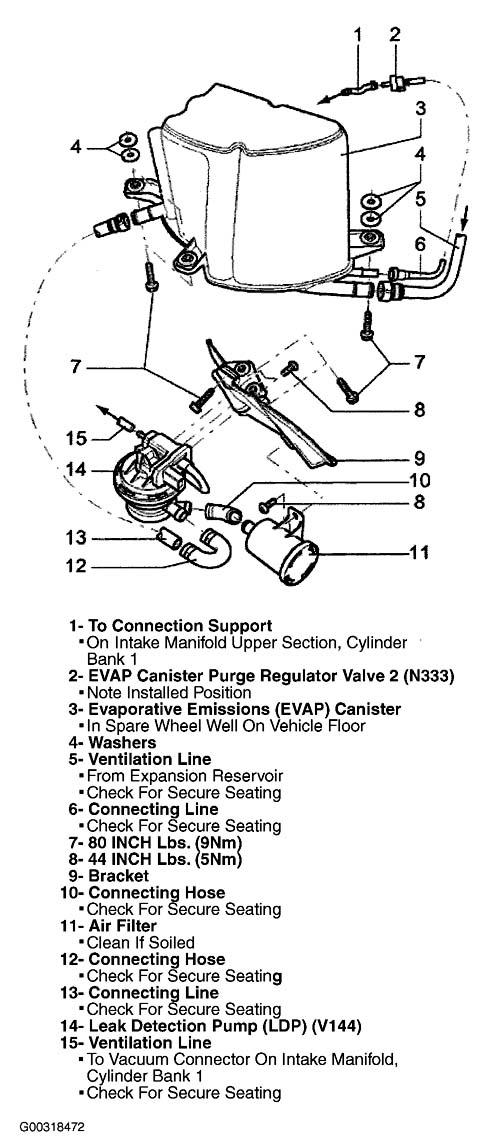

Fig 2: Vacuum Diagram EVAP System (6.0L W12, Engine Code BAP)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

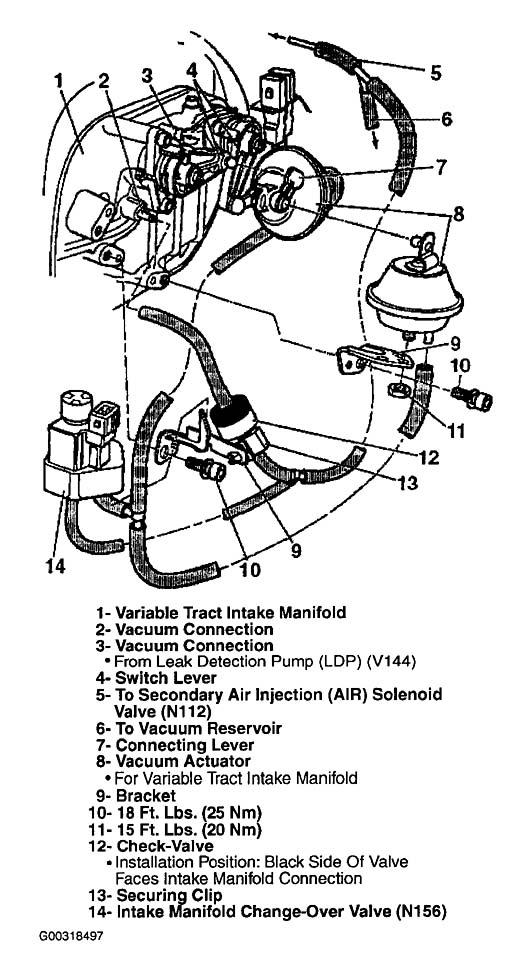

Fig 3: Vacuum Diagram Intake Manifold Change-Over System (4.2L V8 5V)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

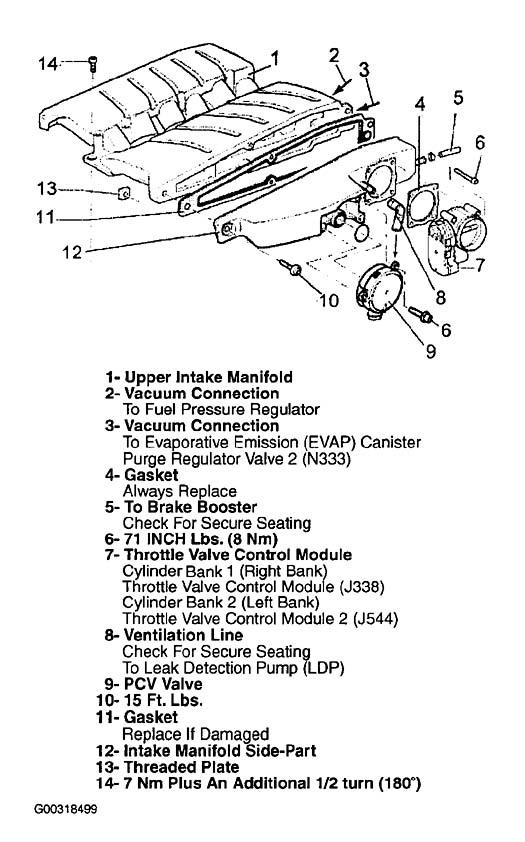

Fig 4: Vacuum Diagram Intake Manifold, Upper Section (6.0L W12, Engine Code BAP)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 5: Vacuum Diagram Secondary Air Injection System - Part 1 - (4.2L V8 5V)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

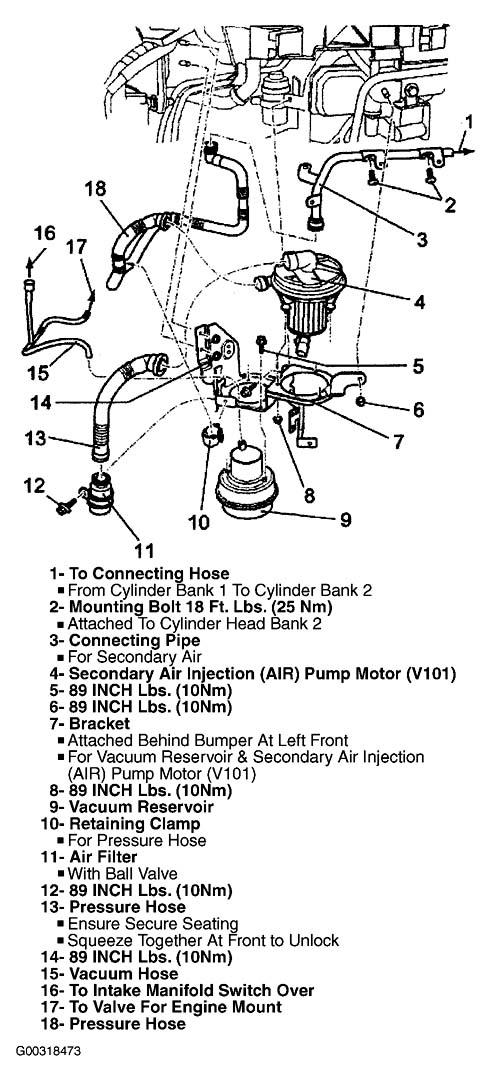

Fig 6: Vacuum Diagram Secondary Air Injection System - Part 2 - (4.2L V8 5V)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

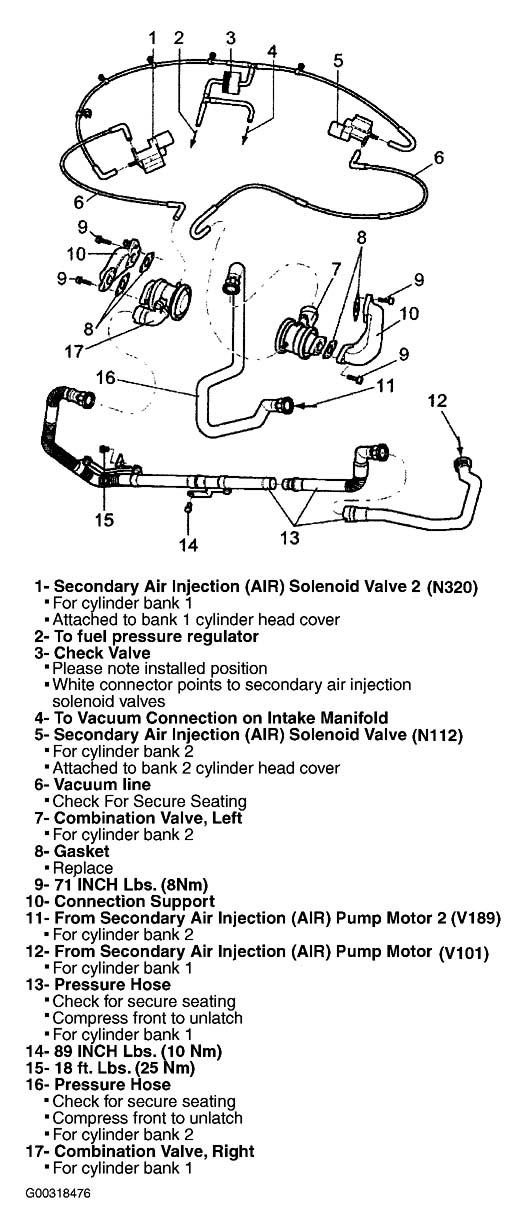

Fig 7: Vacuum Diagram Secondary Air Injection System - Part 1 - (6.0L W12)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

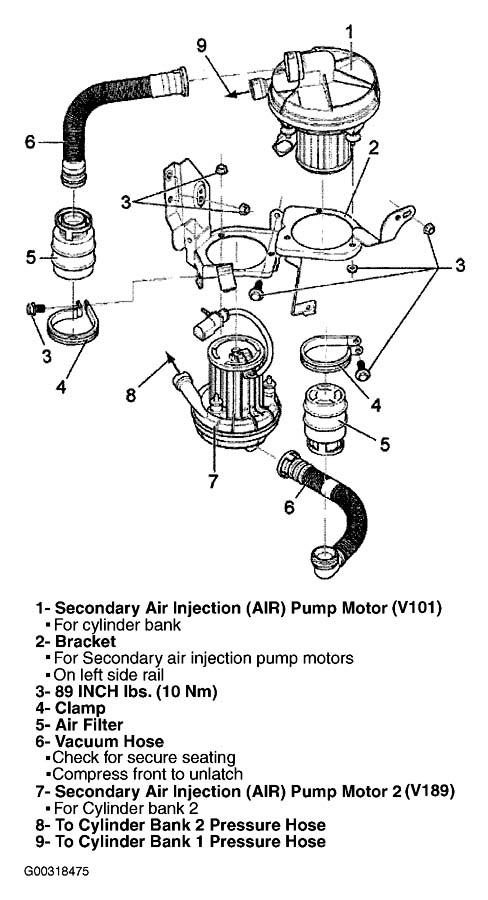

Fig 8: Vacuum Diagram Secondary Air Injection System - Part 2 - (6.0L W12)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
