Vacuum Diagrams: Introduction: TOUAREG: Diesel

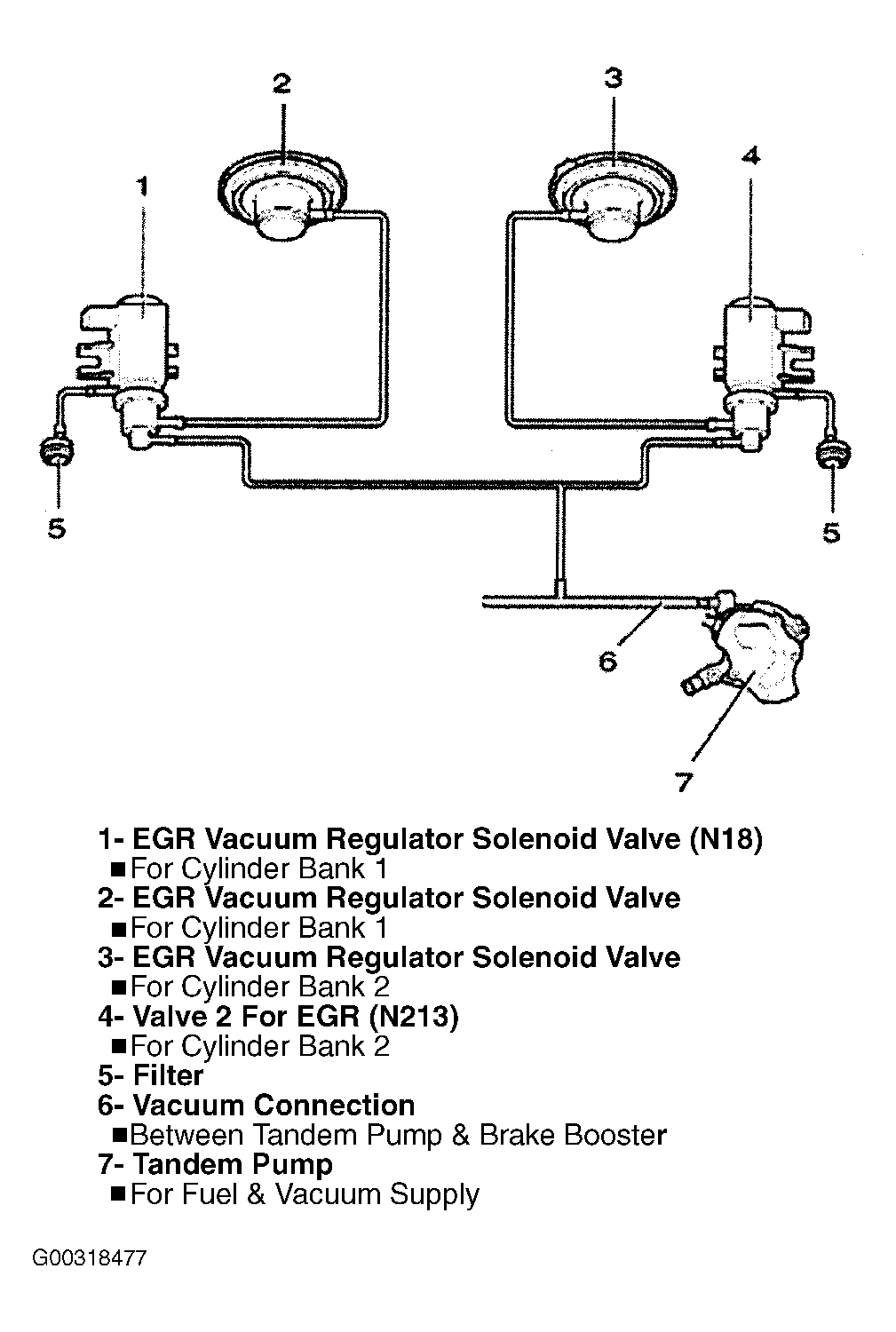

Fig 1: Vacuum Diagram (5.0L V10)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
